Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Mill > Energy Saving Ball Mill

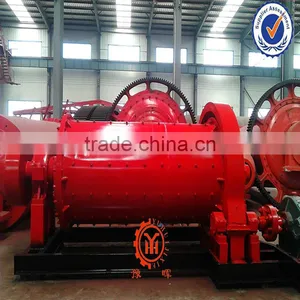

Energy Saving Ball Mill

Name: Energy Saving Ball Mill
Brand: Yuhui
SKU: 141244860
Availability: InStock

US$ 7,548 - 204,918 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Ball Mill

Motor Type:

AC Motor

Contact Supplier Request Quote Chat Now

Henan Yuhui Mining Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin Shanghai qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Ball Mill

Motor Type AC Motor

Power(W) many types

Capacity(t/h) 1-60

Place of Origin Henan, China

Brand Name Yuhui

Model Number Many types

Dimension(L*W*H) many types

Weight many types

Certification ISO, BV

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

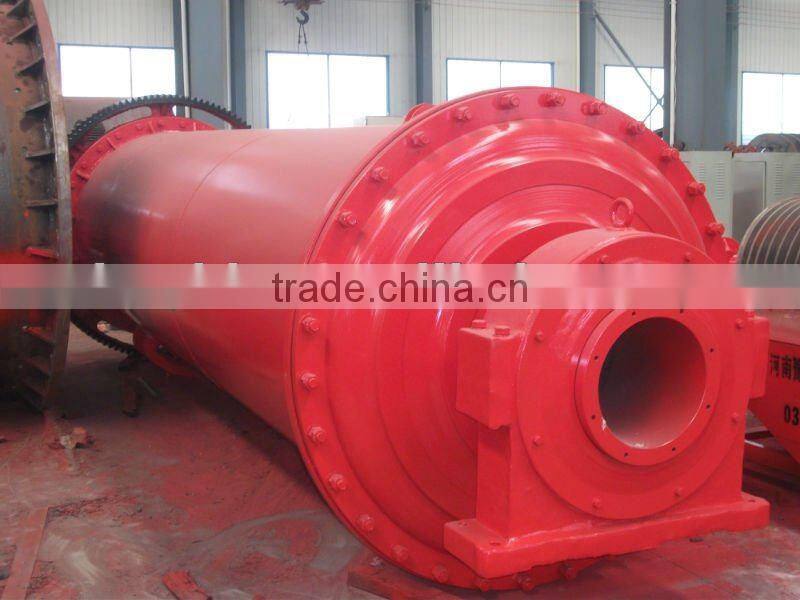

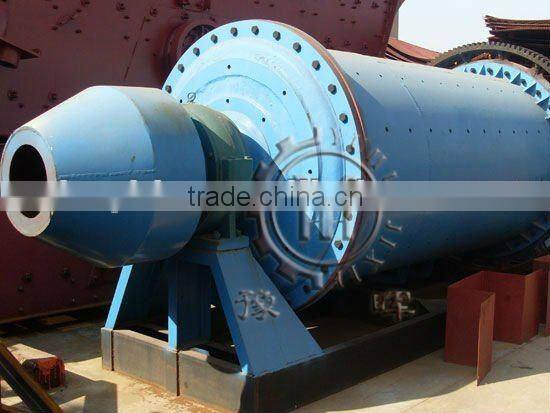

Energy saving ball mill

1. Applications of energy saving ball mill:

energy saving ball mill is an efficient equipment for grinding many materials into fine powder. The Energy saving ball mill is used to grind many kinds of mine and other materials in

cement, silicate, new construction material, refractory material, chemical fertilizer, ferrous metal.

2. Working principle of energy saving ball mill:

Energy saving bal mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board, thus the grinding process is finished.

3. Characteristics of energy saving ball mill:

1.Stable performance, low operation cost

2.Long using life, saving energy

3.Professional design, competitive price

4. Aim of grinding ore by using energy saving ball mill:

The aim of using energy saving ball mill grinding ore is to make the useful part or most part to reach monomer separation, to reach the fineness requirement for ore selection standard, which create advantage for recoverying useful elements from ores.

5. Main tachnical parameters of energy saving ball mill:

Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity	Motor power(kw)	Weight(t)
Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	(t/h)	Motor power(kw)	Weight(t)
Ø9001800*	36-38	1.5	<=20	0.075-0.89	0.65-2	18.5	4.6
Ø9003000*	36	2.7	<=20	0.075-0.89	1.1-3.5	22	5.6
Ø12002400*	36	3	<=25	0.075-0.6	1.5-4.8	30	12
Ø12003000*	36	3.5	<=25	0.074-0.4	1.6-5	37	12.8
Ø12004500*	32.4	5	<=25	0.074-0.4	1.6-5.8	55	13.8
Ø15003000*	29.7	7.5	<=25	0.074-0.4	2-5	75	15.6
Ø15004500*	27	11	<=25	0.074-0.4	3-6	110	21
Ø15005700*	28	12	<=25	0.074-0.4	3.5-6	130	24.7
Ø18303000*	25.4	11	<=25	0.074-0.4	4-10	130	28
Ø18304500*	25.4	15	<=25	0.074-0.4	4.5-12	155	32
Ø18306400*	24.1	21	<=25	0.074-0.4	6.5-15	210	34
Ø18307000*	24.1	23	<=25	0.074-0.4	7.5-17	245	36
Ø21003000*	23.7	15	<=25	0.074-0.4	6.5-36	155	34
Ø21004500*	23.7	24	<=25	0.074-0.4	8-43	245	42
Ø21007000*	23.7	26	<=25	0.074-0.4	8-48	280	50
Ø22004500*	21.5	27	<=25	0.074-0.4	9-45	280	48.5
Ø22006500*	21.7	35	<=25	0.074-0.4	14-26	380	52.8
Ø22007000*	21.7	35	<=25	0.074-0.4	15-28	380	54
Ø22007500*	21.7	35	<=25	0.074-0.4	15-30	380	56
Ø24003000*	21	23	<=25	0.074-0.4	7-50	245	54
Ø24004500*	21	30	<=25	0.074-0.4	8.5-60	320	65
Ø27004000*	20.7	40	<=25	0.074-0.4	12-80	400	94
Ø27004500*	20.7	48	<=25	0.074-0.4	12-90	430	102
Ø32004500*	18	65	<=25	0.074-0.4	-----	800	137

Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
