Specifications
energy-saving ball mill production line1.ISO9001:2000, CE
2.wear resistant structure
3.welcome to visit
energy-saving ball mill production line application:
The Ball Mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Working Principle:

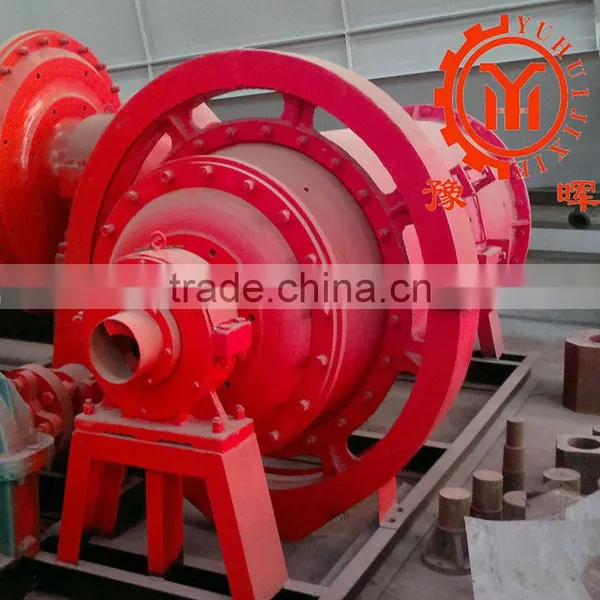

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Main technical parameters:
Model | Standard Diameter (mm) | Revolution of the barrel (r/min) | Weight with balls (t) | Size of inlet (mm) | Size of outputting (mm) | Output capacity (t/h) | Motor power (kw) | Weight (kg) |
GMG(Y)0932 | 900x3200 | 41.6 | 3 | ≤15 | 0.074-0.3 | 0.9-2.3 | 30 | 7260 |
GMG(Y)1250 | 1200x5000 | 31 | 7.4 | ≤20 | 0.074-0.6 | 2.3-11.7 | 60 | 15000 |
GMG(Y)1556 | 1500x5600 | 27.6 | 16 | ≤30 | 0.074-0.6 | 3.6-25 | 130 | 23670 |
GMG(Y)1836 | 1830x3600 | 25.2 | 15 | ≤25 | 0.074-0.6 | 2.5-21 | 155 | 34120 |
GMG(Y)2130 | 2100x3000 | 23.8 | 20 | ≤25 | 0.074-0.6 | 4-30 | 180 | 41900 |
GMG(Y)2170 | 2100x7000 | 23.8 | 39 | ≤25 | 0.074-0.6 | 8.7-65 | 380 | 62600 |
GMG(Y)2275 | 2200x7500 | 21 | 42.5 | ≤25 | 0.074-0.6 | 8.4-63 | 380 | 73820 |
GMG(Y)2756 | 2700x5600 | 21.7 | 43 | ≤25 | 0.074-0.5 | 15-141 | 500 | 107720 |
GMG(Y)3236 | 3200x3600 | 18.5 | 51 | ≤25 | 0.074-0.5 | 86-100 | 630 | 133540 |
GMG(Y)3256 | 3200x5600 | 18.5 | 79 | ≤25 | 0.074-0.5 | 95-120 | 1000 | 152680 |
GMG(Y)3645 | 3600x4500 | 17.3 | 88 | ≤25 | 0.074-0.5 | 110-140 | 1250 | 161230 |
Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
