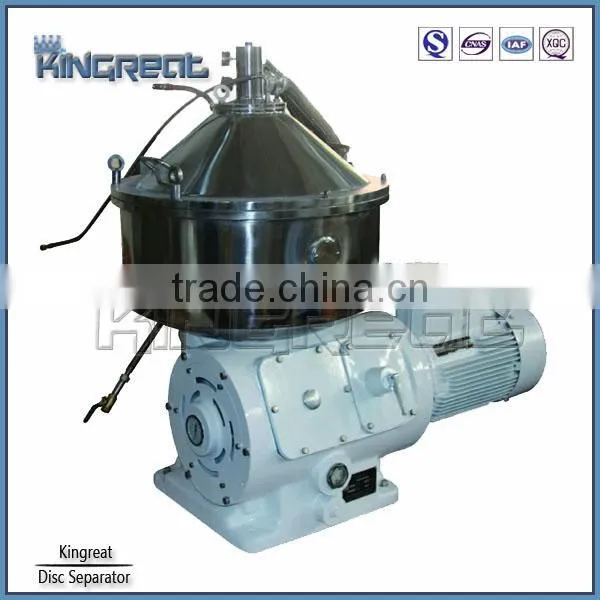

Self Cleaning Disc Separator for Fermentation Broth
Model PDSX5000 separator is mainly used to for concentration of zymotic liquid e.g. yeast. The model is also used to
concentrate the similar material.
The machine has the advantage of high efficiency, low material consumption, convenient operation and economic main
maintenance cost;
The clear liquid is pumped out by centripetal pump, the concentration liquid is discharged continually by nozzles.
The machine is one kind of rotary machine with high speed. After accurate dynamic balancing,
it can run for long time with low vibration safety and security.
The machine equipped with 4 sets of different diameter of nozzle, can be adjusted according to request of capacity,
concentration.
All bearings are using SKF bearing.
Discharging type |
|
Nozzle continually discharging |
Rated capacity |
l/h |
5000-10000 |
Outlet pressure of clear liquid |
Mpa |
≤0.2MPa |
Drum diameter |
mm |
424 |
Speed |
r/min |
6600 |
G force |
|
≥10300 |
Motor power |
kw |
15(380V/50HZ/3P) |

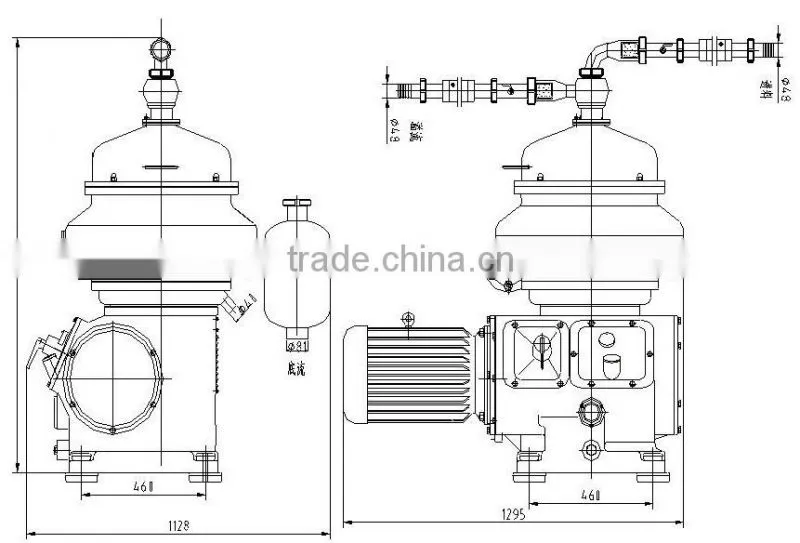

Dimension |
LXWXH(mm) |
1295x1128x1444mm |
N.W. |
kg |
810 |
Starting mode |
|
variable frequency starting |
Discharging type |
|
Nozzle continually discharging |
Rated capacity |
l/h |
5000-10000 |
Outlet pressure of clear liquid |
Mpa |
≤0.2MPa |
Drum diameter |
mm |
424 |
Speed |
r/min |
6600 |
G force |
|
≥10300 |
Motor power |
kw |
15(380V/50HZ/3P) |
Dimension |
LXWXH(mm) |
1295x1128x1444mm |
N.W. |
kg |
810 |
Starting mode |
|
variable frequency starting |
