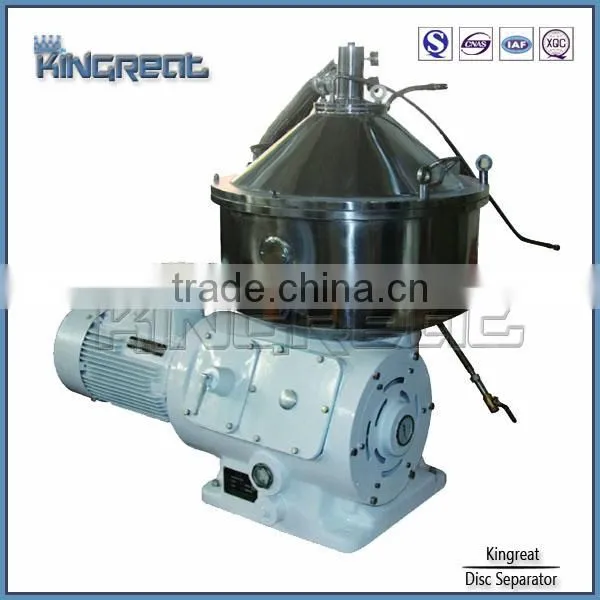

High Speed Disc Fermentation Broth Separation Separator

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Centrifuge, Vertical
Product Type	Other, Industrial Yeast Separator	Place of Origin	Jiangsu, China
Brand Name	Kingreat	Model Number	PDSX5000
Voltage	220,380,440,460V	Power(W)	Accoring to the model
Weight	Accoring to the model	Dimension(LWH)	Accoring to the model
Certification	ISO CE GMP	Warranty	12months
After-sales Service Provided	Engineers available to service machinery overseas

High Speed Disc Fermentation Broth Separation Separator

Product Overviews

Model PDSX5000 separator is mainly used to for concentration of zymotic liquid e.g. yeast. The model is also used to

concentrate the similar material.

The machine has the advantage of high efficiency, low material consumption, convenient operation and economic main

maintenance cost;

The clear liquid is pumped out by centripetal pump, the concentration liquid is discharged continually by nozzles.

The machine is one kind of rotary machine with high speed. After accurate dynamic balancing,

it can run for long time with low vibration safety and security.

The machine equipped with 4 sets of different diameter of nozzle, can be adjusted according to request of capacity,

concentration.

All bearings are using SKF bearing.

Technical parameters

Discharging type		Nozzle continually discharging
Rated capacity	l/h	5000-10000
Outlet pressure of clear liquid	Mpa	≤0.2MPa
Drum diameter	mm	424
Speed	r/min	6600
G force		≥10300
Motor power	kw	15(380V/50HZ/3P)
Dimension	LXWXH(mm)	1295x1128x1444mm
N.W.	kg	810
Starting mode		variable frequency starting

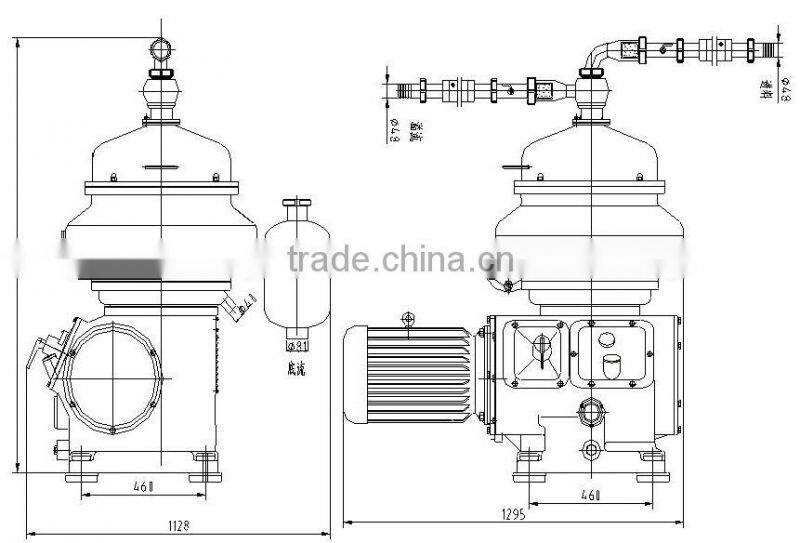

Dimension

Components & parts

Processing Equipment

Packing & Delivery

Factory overview

Our Services

Discharging type		Nozzle continually discharging
Rated capacity	l/h	5000-10000
Outlet pressure of clear liquid	Mpa	≤0.2MPa
Drum diameter	mm	424
Speed	r/min	6600
G force		≥10300
Motor power	kw	15(380V/50HZ/3P)
Dimension	LXWXH(mm)	1295x1128x1444mm
N.W.	kg	810
Starting mode		variable frequency starting
