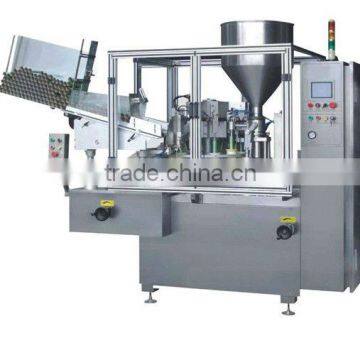

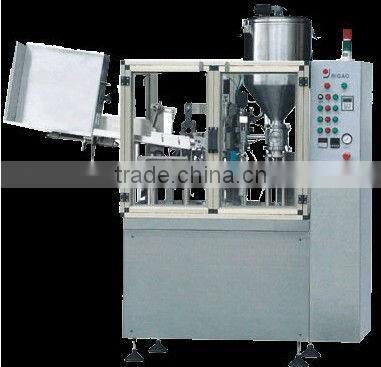

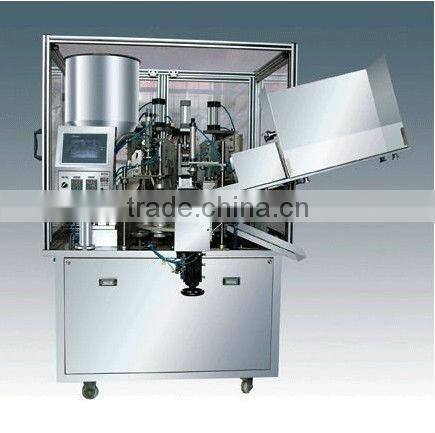

Automatic Tube Filling and sealing machinery

FOB Price

USD $12,680 - $13,890 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type	Bottles, Other, Bottles, tube	Packaging Material	Glass, Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220V50Hz	Power	1.5kw
Place of Origin	Guangdong, China	Brand Name	G&Y machinery
Model Number	G&Y	Dimension(LWH)	226012601900
Weight	550kg	Certification	ce
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Automatic Tube Filling and sealing machinery

Main Technical Parameter

Model	GF—400L	GF—400F
Tube material	Metal tube, ALU tube	Plastic tube, Multiple tube
Tube diameter	φ13—φ50	φ13—φ60
Tube length	50—250(customizable)	50—250(customizable)
Filling volume	10—300ml(adjustable)	10—300mladjustable)
Filling accuracy	≤±1%	≤±1%
Product capacity(pc/h)	1800—4200(adjustable)	1800—4000(adjustable)
Working pressure	0.55—0.65mpa	0.55—0.65mpa
Motor power	2kw(380V/220V 50Hz)	2kw(380V/220V 50Hz)
Heat sealing power		3kw
Overall dimension(mm)	2620×1236×1980	2620×1236×1980
Machine weight(kg)	1100	1100

Working principle

Model GF-400 L(F) Automatic Tube Filling And Sealing Machine is designed for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries. It’s operating principle is to put the pipes which is in the feeder hopper into the first service position filling model individually, to invert with rotating disk, to test nomenclature plate in pipe when inverting to the second , to fill with nitrogen gas into pipe in the third, to fill with desired substance in the fourth, then to fix the heating, folding, jamming, number printing, cooling, slivers trimming etc service position, to export the finished products when inverting to the last service position so the twelfth. Every pipe should take such series process to filling, sealing to completion.

If you need more information and quotation about the machine.

please contact :Jerry

Skype :gymachine

Phone number /whatsapp/ wechat: 13825018778
