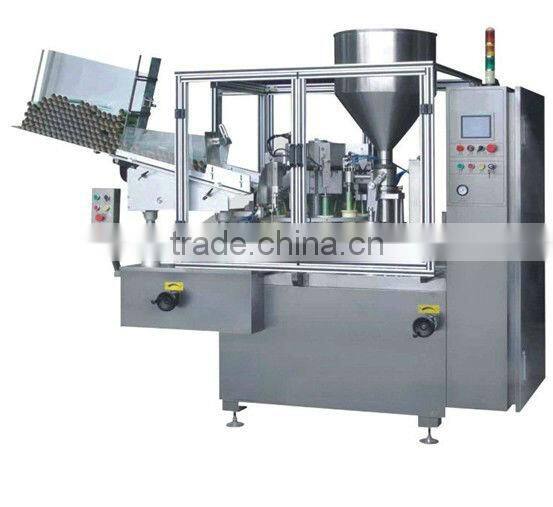

Hot Sale Automatic Tube Filling and Sealing Machinery

Hot Sale Automatic Tube Filling and Sealing Machinery photo-1
US$ 1,560 - 8,960 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Bags, Bottles, Stand-up Pouch, Other, Bags, Bottles, Stand-up Pouch, tube
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bags, Bottles, Stand-up Pouch, Other, Bags, Bottles, Stand-up Pouch, tube
Packaging Material Metal, Paper, Plastic, Wood
Automatic Grade Automatic
Driven Type Other, Electric, Electric
Voltage 380V 50Hz
Power 2.2KW
Place of Origin Guangdong, China
Brand Name G&Y machinery
Model Number G&Y
Dimension(L*W*H) 2260*1260*1900
Weight 250kg
Certification ce
After-sales Service Provided Engineers available to service machinery overseas

Automatic Tube Filling and sealing machinery



Main Technical Parameter

Model

GF—400L

GF—400F

Tube material

Metal tube, ALU tube

Plastic tube, Multiple tube

Tube diameter

φ13—φ50

φ13—φ60

Tube length

50—250(customizable)

50—250(customizable)

Filling volume

10—300ml(adjustable)

10—300mladjustable)

Filling accuracy

≤±1%

≤±1%

Product capacity(pc/h)

1800—4200(adjustable)

1800—4000(adjustable)

Working pressure

0.55—0.65mpa

0.55—0.65mpa

Motor power

2kw(380V/220V 50Hz)

2kw(380V/220V 50Hz)

Heat sealing power



3kw

Overall dimension(mm)

2620×1236×1980

2620×1236×1980

Machine weight(kg)

1100

1100



Hot Sale Automatic Tube Filling and sealing machinery

Working principle

Model GF-400 L(F) Automatic Tube Filling And Sealing Machine is designed for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries. It’s operating principle is to put the pipes which is in the feeder hopper into the first service position filling model individually, to invert with rotating disk, to test nomenclature plate in pipe when inverting to the second , to fill with nitrogen gas into pipe in the third, to fill with desired substance in the fourth, then to fix the heating, folding, jamming, number printing, cooling, slivers trimming etc service position, to export the finished products when inverting to the last service position so the twelfth. Every pipe should take such series process to filling, sealing to completion.



Hot Sale Automatic Tube Filling and sealing machineryHot Sale Automatic Tube Filling and sealing machineryHot Sale Automatic Tube Filling and sealing machineryHot Sale Automatic Tube Filling and sealing machinery







If you need more information and quotation about the machine.







please contact :Jerry







Skype :gymachine







Phone number /whatsapp/ wechat: 13825018778
