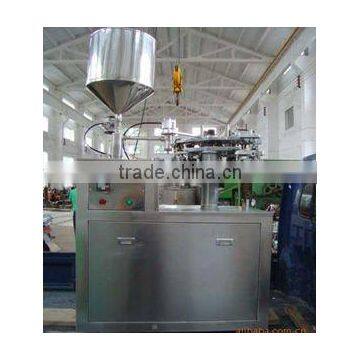

Aluminum Tube Filling Sealing And Packing Machine
Key words:
Tube filling and sealing machine, aluminum tube packing packaging machine,
aluminium laminated plastic filling&sealing machine, auto tube filing sealing machine, toothpaste packing machine
AB glue packaging filling and sealing machine, etc.
Brief description:
The machine is used mainly to fill liquid and cream material into metal/aluminium tube with fixed quantity and seal the tube. It is widely used for the packing of products of pharmaceutical, foods, air coloring and chemical industry .
It combines the function of filling,sealing and batch numbering. It can use in the following product, such as for filling pharmacy cream, hair colorante, toothpaste, leather oil, glue, AB glue, Nanp-epoxy adhesive, Neoprene adhesive etc.
Working process:
Manually put the metal tubes(max. 16 tubes) into the tube-holding base. Change angular potion of each tube by means of mechanical transmission. Photoelectric device is used to detect the position of tube and if there is any tube in right position, then filling system starts to fill the tube with fixed quantity. The tube is sealed by cam, which is steady, safe and with no air leaving. It can also achieve number/batch printed on the end, finally the tube is ejected.
Feature:
1: Reliable performance performance
2:Controllable filling volume or weight
3: Suitable for kinds of metallic tubes because the tube-holding base can be replaced easily
4: Parts contact with mateial adopt stainless steel
5:High filling accuracy and efficiency.
Technical parameter:
| Power supply | AC220V±10% 60HZ |
| Working temperature | 5-50°C |
| Filling Quantity | 2-30 5-75 30-150(g) |
| Quantity error | <2% |
| Motor power | 0.75-1.1 kw |
| Compressed air pressure | 0.6-0.7Mpa |
| Compressed air volume | 0.2m³/min |
| Capacity | 10-40 tubes/min (adjustable) |
| Dimension | about 1000mm×600mm×1700mm |
| Weight | 250 KG |
Samples:
Other parts for this aluminum tube filing and sealing packing machine:
If you need more information and quotation about the machine.
please contact :Jerry
Skype :gymachine
Phone number /whatsapp/ wechat: 13825018778
