2014 Full automatic pure water machine,pure water making plant
Introduction:
The water treat treatment machine can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make all specifications of the water quality fully meet the state fresh water standards, even standard of mineral water.

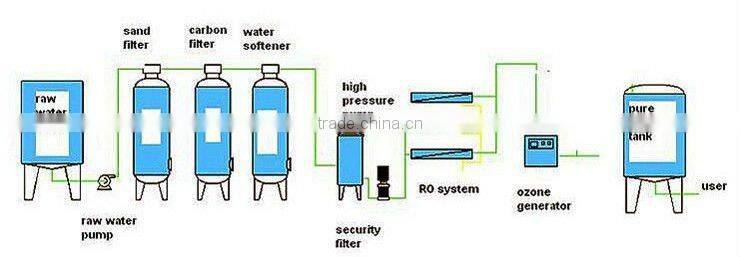

Working process:

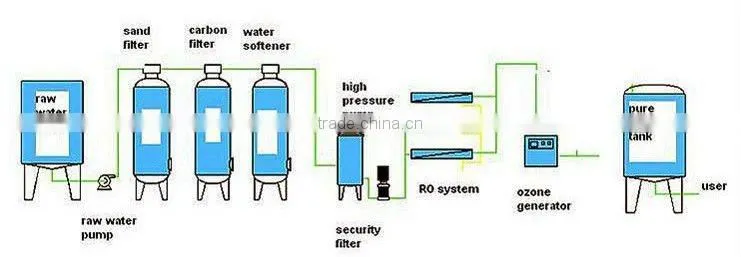

Raw water → Raw water pump → Quartz sand filter → Active carton filter → Secutity filter →One stage high pressure pump → One stage RO sytem→Two stage high pressure pump →Two stage RO sytem→User
Technical parameter:
Capacity(Ton/h) | Motor power(kw) | Membrane | Entrance Diameter(mm) | Size (L*W*H)(mm) | Weight(kg) |
0.5 | 1.1 | 4040 | Φ32 | 1300*600*1400 | 100 |
1 | 1.5 | 4040 | Φ32 | 1300*600*1400 | 100 |
2 | 3 | 4040 | Φ38 | 1400*600*1400 | 200 |
3 | 4 | 8040 | Φ48 | 1600*750*1750 | 200 |
4 | 5 | 8040 | Φ48 | 2550*750*1750 | 250 |
5 | 7 | 8040 | Φ60 | 2550*750*1750 | 300 |
10 | 11 | 8040 | Φ60 | 3000*800*2000 | 600 |
15 | 16 | 8040 | Φ72 | 3000*1250*2000 | 840 |
20 | 30 | 8040 | Φ60 | 3000*1800*2000 | 1250 |
Applications:
1) Food and Beverages
2) Tube and Micro Circuit manufacturing
3) Pharmaceuticals
4) Hotels & Resorts
5) Hospitals, Mineral Water Processors
6) Power Generation
7) Electronic Component manufacturing
8) Semi conductors
Optional choice:
1) RO membrane: Filmtec /USA Dow brand/CSM brand/Huitong brand
2) Pump: Grundfos/FLECK
3) UV sterilizer
4) Chemical dosing system
5) Water softener
6) SS304 water tank
7) Ozone generator
8) Purolite Resin
The project:
RO pure water treatment---liquid and washing mixer---storage Tank---bottle drying&sterilizing Machine--Filling Machine---Transportation Table---Inkjet Printer---labelling Machine---Aluminum foil sealing machine---shrink Film Packing Machine.
Show Room:
Professional machine for produce facial cream, body lotion, toothpaste, shampoo, liquid detergent, perfume, powder foundation,lipstick, bechamel,ketchup medicine of cosmetic, daily chemical, pharmacy, foodstuff etc.
After training:
When you buy our packing machine, you should be after trained to use the packing machine. We have user manual, online video to teach you how to use the packing machine.
After sales service:
1. We have one year warranty and lifetime maintenance.
2. If the buyer has any questions from our technical department, we can supply on-line service.
3. Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; both of them are free of charge
4. After one year, we offer to repair the machine, but cost of the changed parts are paid by customers
If you need more information and quotation about the machine.
please contact :Jerry
Skype :gymachine
Phone number /whatsapp/ wechat: 13825018778
