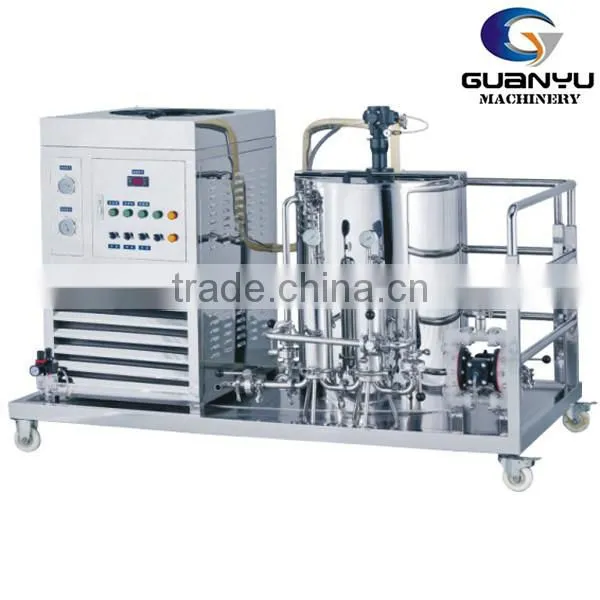

Machine to Make Perfume With Freezing Filter

Machine to make perfume with freezing filer

Perfume making machines is a mixing system, freezing and filtration system for the manufacture of perfume, cologne, deodorant and toilet water in cosmetics industry.

Perfume freezing mixer description:

1.It is an ideal device for filtering cosmetics and perfume in cosmetic factories. The product is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration.

2.Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable.

3.The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.

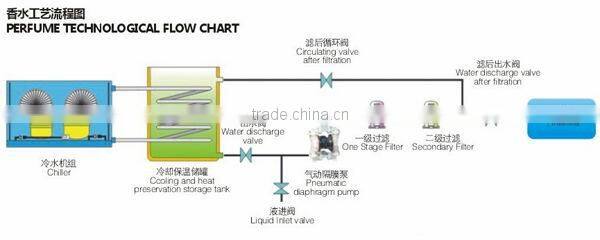

Production of perfume:

1.In our standard perfume making machine, the evaporating coil in the tank working circulation can mixing the perfume ,we also can add pneumatic motor on the top of the tank for mixing.

2.During the mixing operation, the ingredients (mainly alcohol) are pumped out from the bottom valve by diaphragm pump. The perfume passes the first and second filters to get it clarified. Then the perfume goes back to the mixing tank waiting for another filtration.

3.At the same time, the chiller works producing very cold temperature. The evaporating coil inside the perfume tank transfers the chill to the perfume around it. The impurity will be resolved from the perfume and filtered during the circulation.

Technical parameter:

The appearance of perfume making machines design has different styles:

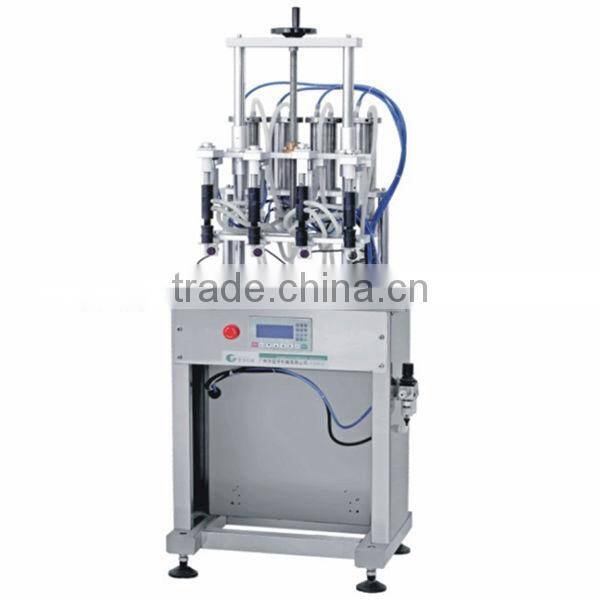

Perfume filling machine:

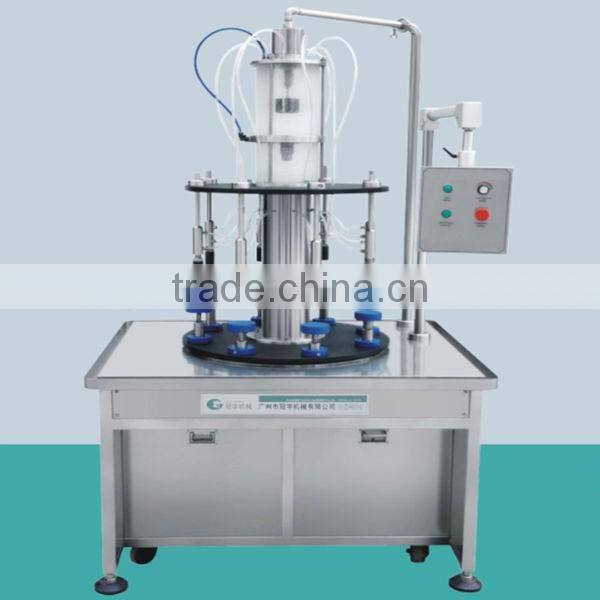

Perfume bottle cap crimping machine:

Perfume filter:

Show Room:

Package:

Exhibition:
