Perfume Freezing Filter/Perfume Production Line Equipment

Perfume freezing filter (split type)

this machine is professional use for lotion, perfume, eye drop, vitamin, resist filtering, etc.

1.Technology and performance:

(1)Refrigeration system can make the lowest refrigeration temperature to 5^°C

(2)cooling time: general for 60-90 minutes.

(3)Applied to a variety of aqueous solution of clear filter and impurities

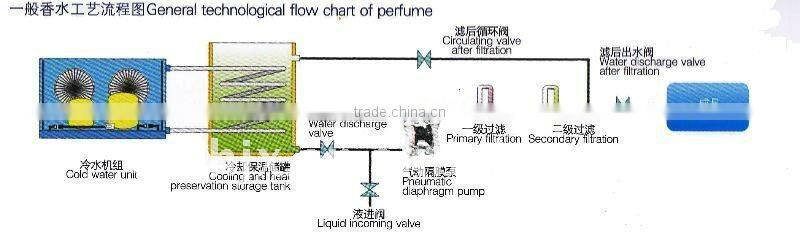

2.This machine include: diaphragm pump, electric control system, filtration system, refrigeration system, 500L insulation cooling tank, stirring mixing system, sanitary pipes, stainless steel bracket etc.

(1) Diaphragm pump

Anticorrosive pneumatic diaphragm pump: origin of the SANDPIPER, mouth by 1/2 ", the material is PP

(2) Electronic control system

Pressure showed that level of pressure filter, secondary filter pressure, refrigerating units, low pressure and high pressure force action button indicator group, brand low-voltage electrical appliances, stainless steel group electric cabinet a one-piece (with stents

(3) 0.5T/h filtration system

2 pieces 10 inch core filter shell, 10 inch 1 um and 0.2 um polypropylene filter in each one.

(4) 5P refrigeration system

System including: condenser, backplane, joint venture, fan, air cooling head of imports, electromagnet, ALCO filters, high voltage, high and low pressure gauge, Denver wire expansion valve, liquid bottle, hand valves, with frost electronic book and make evaporator temperature control box, a set of ¢25 stainless steel coil, the French beauty PangLe air compressor.

(5) heat preservation cooling tank

304 stainless steel material lining thickness 4mm, outer 304 stainless steel thickness is 2mm, aluminum silicate insulation medium, mixer, on the paddle mixer, open cover, the inclined bottom discharge.

 (6) Sanitary piping

The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form, easy assembly, disassembling,maintenance and cleaning

(7) Stainless steel moveable supporter

3. Technical parameter

our machine is professional in daily chemical;

pharmaceutical; cosmetics;foodstuff etc.industry

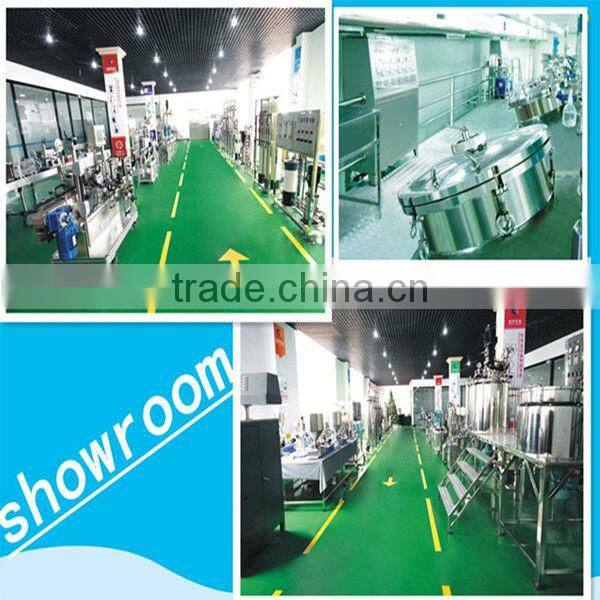

showroom

work-shop

packing
