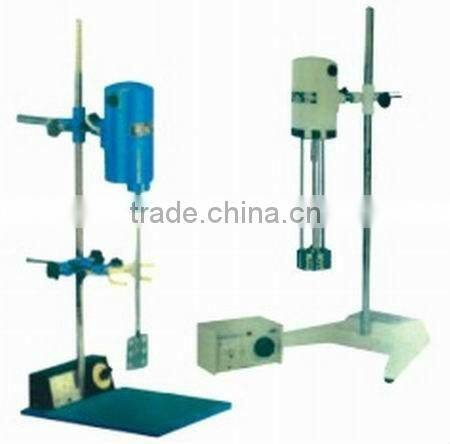

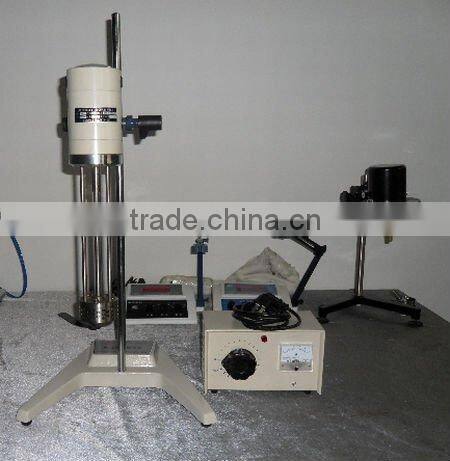

Lab High Shear Emulsifier&Homogenizing Mixer
High shear dispersing emulsifier
Function of the lab high shear emulsifier&homogenizing mixer
Homogenizing/emulsifying/depolymerizing/dispersing/pesticide/textile accessory ingredient/suspension
fruit juice/cell rupture/oil&water emulsifying/coal slurry/cosmetic/bitumen/pigment/essence,etc
Outstanding feature:
1. Economical design, simple and practical, suitable for teaching, common experimenting, and non-sanitary working conditions.
2. Stepless speed regulation, maximum rotation speed : 23,000rpm.
3. Equipped with two different dispersing heads for different working capacities.
4. Maximum working duration: 1 hour.
5. Stainless steel dispersing head, repeatedly usable.
6. Quick coupling dispersing head, easy to be dismantled and replaced.
7. ISO9001 certified by TUV to supply quality assurance.
Case of application:
Pour the water phase into the vessel, start up the equipment and regulate the rotation speed to B stage above, and then add the oil phase, make the equipment run for 3 minutes to end the emulsifying process.
2. Teaching experiment
E.g.: In the teaching experiment of cream preparation, the emulsification effect can be fully embodied, and thus the technical key points can be mastered by the students.
3. White titanium pigment dispersing
Start up the equipment and regulate the rotation speed to D stage, and disperse for more than 10 minutes.
Model number | FM 200 |
Power | 200 W |
Voltage | 220 V 50HZ |
Rotation speed range | 300-23,000rpm stepless speed regulation |
Speed display | Scale display |
Standard agitator | 10G,18 G |
Optional agitators | None |
Medium-contacting parts material | Stainless steel 304 |
Shaft sleeve material | PTFE |
Working stand and base plate | attached |
Package | Carton |
Total weight | 11 kg |
Package size | 640mm*330mm*160mm |
Accessories | Inner hexagon tools |
Spare parts | Motor carbon brush |
Optional accessories | Fixed clamp for vessel |
If you need more information and quotation about the machine.
please contact :Jerry
Skype :gymachine
Phone number /whatsapp/ wechat: 13825018778
Send Inquiry to This Supplier
