Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > FA25 Lab High Shear Emulsifying Mixer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Mixer Type:
Homogenizer
Application:
Viscous Fluid
Additional Capabilities:
Other, Emulsifying,homogenizer,mixing
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Mixer Type
Homogenizer
Application
Viscous Fluid
Additional Capabilities
Other, Emulsifying,homogenizer,mixing
Place of Origin
Guangdong, China
Brand Name
Guanyu
Model Number
GY
Voltage
220V 50HZ
FA25 Lab high shear emulsifying mixer
Homogenizing/ emulsifying/ depolymerizing/ dispersing/ vaccine/ fat milk/ pesticide/ yoghurt/ textile accessory ingredient/ suspension/ fruit juice/ cell rupture/ oil & water emulsifying/ coal slurry/ cosmetics/ bitumen/ pigment/ essence
Advantages:
1. German original motor, long service life and stable operation.
2. Stepless speed regulation, maximum Rotation speed: 28,000rpm,
maximum Peripheral speed: 27m/s.
3. 13 different agitators for option to satisfy your different working environments (sealed, opened, normal pressure, vacuum).
4.Maximum working duration: 4 hours.
5.Double protective insulation to supply you the highest safety guard.
6.Stainless steel agitator, repeatedly usable.
7.Quick coupling agitator, easy to be dismantled and replaced.
8.Modular design, flexible combination.
9.ISO9001 certified by TUV to supply quality assurance.
2. Stepless speed regulation, maximum Rotation speed: 28,000rpm,
maximum Peripheral speed: 27m/s.
3. 13 different agitators for option to satisfy your different working environments (sealed, opened, normal pressure, vacuum).
4.Maximum working duration: 4 hours.
5.Double protective insulation to supply you the highest safety guard.
6.Stainless steel agitator, repeatedly usable.
7.Quick coupling agitator, easy to be dismantled and replaced.
8.Modular design, flexible combination.
9.ISO9001 certified by TUV to supply quality assurance.
Cases of application:
1.Oil & Water emulsifying
Pour the water phase into the vessel, start up the equipment and regulate the Rotation speed to B stage above, and then add the oil phase, make the equipment run for 3 minutes to end the emulsifying process.
Pour the water phase into the vessel, start up the equipment and regulate the Rotation speed to B stage above, and then add the oil phase, make the equipment run for 3 minutes to end the emulsifying process.
2.Oil phase dispersing
In the emulsifying process, the oil phase shall be proportioned at first before it is uniformly dispersed, and FA25 can satisfy a small batch fast proportioning.
In the emulsifying process, the oil phase shall be proportioned at first before it is uniformly dispersed, and FA25 can satisfy a small batch fast proportioning.
| Type | FA25 |
| Power | 500w/320w |
| Voltage | 220V 50HZ |
| Optional agitators | 13 types for your option |
| Rotation speed | 10000-28000rpm |
| Speed control | Stepless speed regulation |
| Speed display | Scale display |
| Standard agitator | 25F |
| Parts contact with material | stainless steel 316L |
| Shaft sleeve material | PTFE |
| Package | carton |
| Package size | 322*550*180mm |
| Total weight | About 15kg |

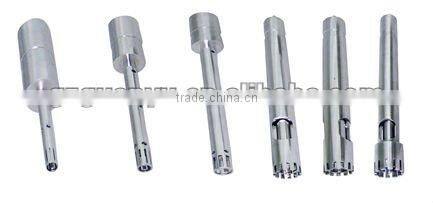

Picture for FA25 dispersing heads
