Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > Lab Dispersing Emulsifier Homogenizer
US$ 1,360 - 2,360
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Cosmetic
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Laboratory High Shear Emulsifier/Homogenizing MixerUS$ 1,580 - 2,980MOQ: 1 Set -
FM300 Lab Emulsifier HomogenizerUS$ 1,250 - 6,890MOQ: 1 Set
-
FA25 Lab High Shear Emulsifying MixerNegotiableMOQ: 1 Set
-
FM200 Pritical Lab High Shear Dispersing Emulsifying MixerNegotiableMOQ: 1 Set
-
High Speed Lab Stirrer R30NegotiableMOQ: 1 Set
Condition
New
Mixer Type
Homogenizer
Product Type
Cosmetic
Application
Liquid
Additional Capabilities
Granulating
Place of Origin
Guangdong, China
Brand Name
Guanyu
Model Number
FA25
Max. Loading Capacity
50L
Voltage
220V/380V
Power(W)
0.75KW~45KW
Dimension(L*W*H)
40*28*14CM
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

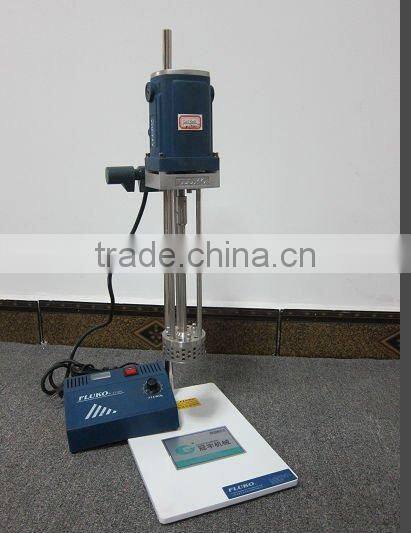

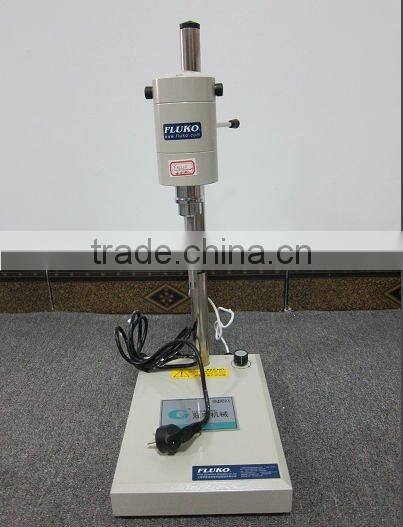

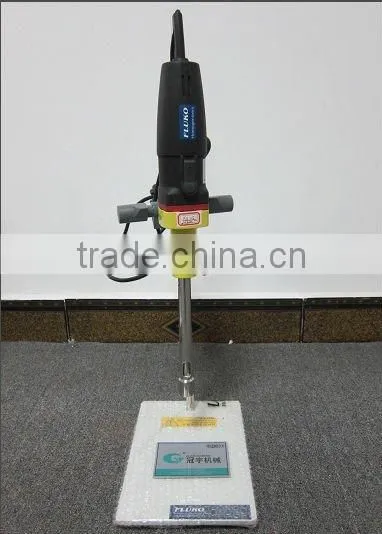

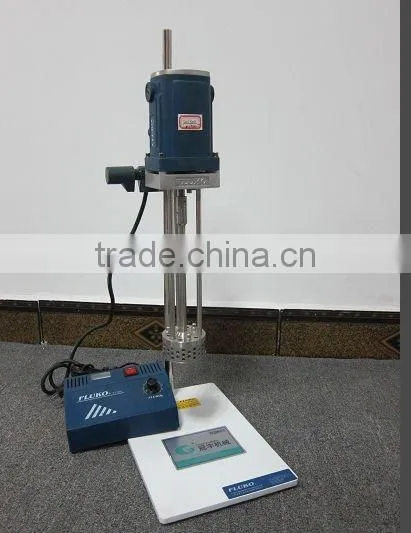

Lab Dispersing Emulsifier Homogenizer
Key words:
Laboratory homogenizer/mixer, laboratory homogenizing mixer,high speed dispersing homogenizer,
high speed emulsifier/homogenizer/mixer.etc
Function:
Homogenizing/ emulsifying/ depolymerizing/ dispersing/ vaccine/ fat milk/ pesticide/ yoghurt/ textile accessory ingredient/ suspension/ fruit juice/ cell rupture/ oil & water emulsifying/ coal slurry/ cosmetics/ bitumen/ pigment/ essence
Advantages:
1. German original motor, long service life and stable operation.
2. Stepless speed regulation, maximum Rotation speed: 28,000rpm,
maximum Peripheral speed: 27m/s.
3. 13 different agitators for option to satisfy your different working environments (sealed, opened, normal pressure, vacuum).
4,Maximum working duration: 4 hours.
5,Double protective insulation to supply you the highest safety guard.
6,Stainless steel agitator, repeatedly usable.
7,Quick coupling agitator, easy to be dismantled and replaced.
8,Modular design, flexible combination.
9,ISO9001 certified by TUV to supply quality assurance.
2. Stepless speed regulation, maximum Rotation speed: 28,000rpm,
maximum Peripheral speed: 27m/s.
3. 13 different agitators for option to satisfy your different working environments (sealed, opened, normal pressure, vacuum).
4,Maximum working duration: 4 hours.
5,Double protective insulation to supply you the highest safety guard.
6,Stainless steel agitator, repeatedly usable.
7,Quick coupling agitator, easy to be dismantled and replaced.
8,Modular design, flexible combination.
9,ISO9001 certified by TUV to supply quality assurance.
Cases of application:
1,Oil & Water emulsifying
Pour the water phase into the vessel, start up the equipment and regulate the Rotation speed to B stage above, and then add the oil phase, make the equipment run for 3 minutes to end the emulsifying process.
Pour the water phase into the vessel, start up the equipment and regulate the Rotation speed to B stage above, and then add the oil phase, make the equipment run for 3 minutes to end the emulsifying process.
2,Oil phase dispersing
In the emulsifying process, the oil phase shall be proportioned at first before it is uniformly dispersed, and FA25 can satisfy a small batch fast proportioning.
In the emulsifying process, the oil phase shall be proportioned at first before it is uniformly dispersed, and FA25 can satisfy a small batch fast proportioning.
Main technology parameters:
| Type | FA25 |
| Power | 500w/320w |
| Voltage | 220V 50HZ |
| Optional agitators | 13 types for your option |
| Rotation speed | 10000-28000rpm |
| Speed control | Stepless speed regulation |
| Speed display | Scale display |
| Standard agitator | 25F |
| Parts contact with material | stainless steel 316L |
| Shaft sleeve material | PTFE |
| Package | carton |
| Package size | 322*550*180mm |
| Total weight | About 15kg |
Hot selling Lab Equipment
Picture for FM300 Lab emulsifying mixer

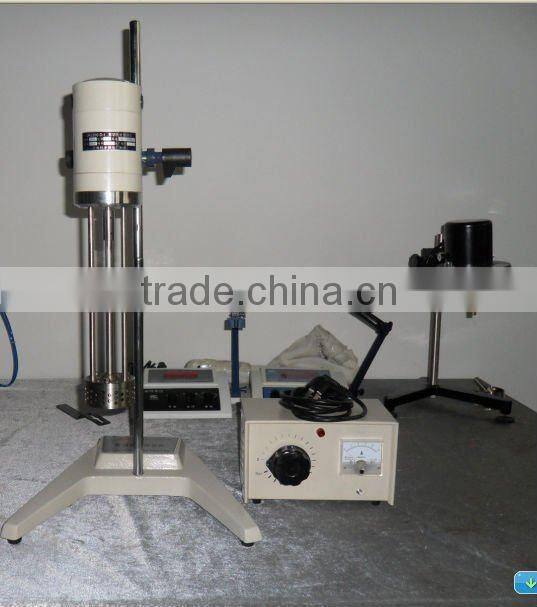

Picture for FM200 Homogenizer emulsifying mixer
Picture for lab emulsifier homogenizer mixer
If you need more information and quotation about the machine.
please contact :Jerry
Skype :gymachine
Phone number /whatsapp/ wechat: 13825018778
