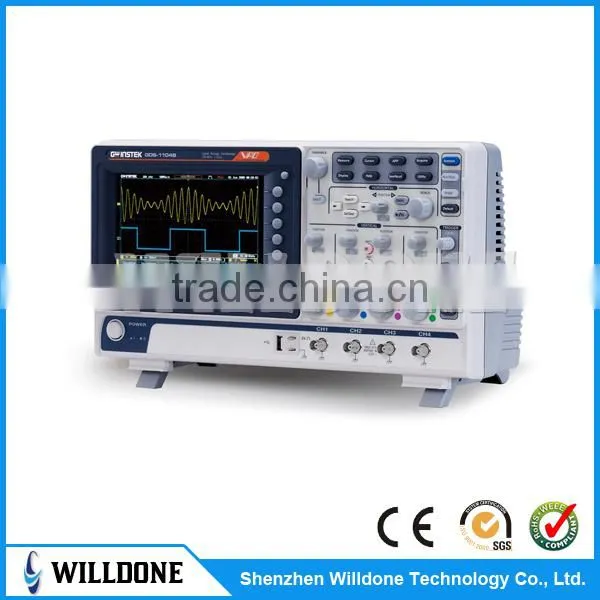

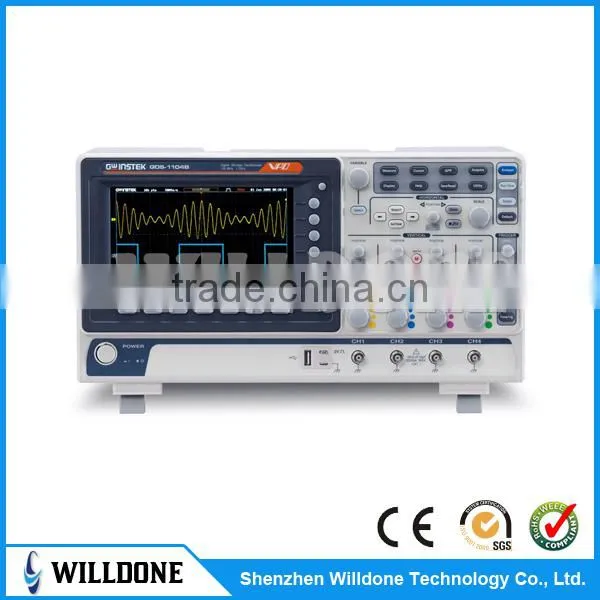

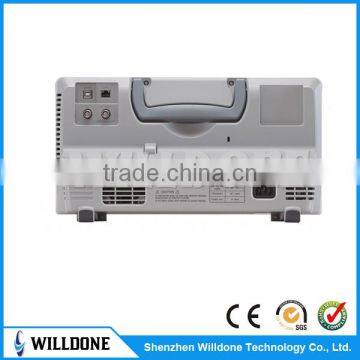

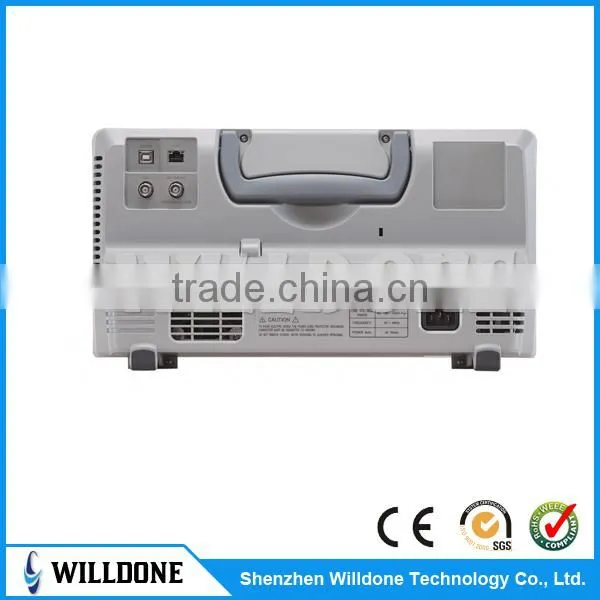

Digital Storage Oscilloscopes GDS-1000B

• 50/70/100MHz bandwidth selections, 2ch or 4ch input
• 1GSa/s maximum sampling rate
• 10M maximum memory depth for each channel
• 7” 800 x 480 WVGA LCD display
• 256 color gradient display function to strengthen waveform performance
• 1Mpts FFT frequency domain signal display
• Zero Key function for horizontal time, vertical voltage and triggering
• Compact and innovative exterior design

Digital oscilloscopes have entered an epoch-making generation. Innovative design, compact appearance, and abundant functionalities together forge this simple-in-look oscilloscope a very powerful test and measurement instrument which facilitates engineers to easily solve complex measurement issues. This is the latest definition of digital oscilloscope defined by GDS-1000B. The GDS-1000B series demonstrates the impeccable functionalities with an extremely ordinary pricing, which allows customers to realize the true meaning of bigger bang for the buck. Although, the GDS-1000B series is under the category of general purpose oscilloscope, the full functionalities within this simple-in-look oscilloscope, including parameter measurement, cursor indication, digital voltage meter, and data logging, surpasses the same category 1000 series oscilloscopes in the market. All applications of the GDS-1000B series can be applied to the educational field and the fundamental R&D units of the industrial sector.

The GDS-1000B series features three bandwidth selections  100 MHz, 70 MHz, 50MHz and equips with analog signal input terminals by four or two channels ( 50MHz only equipped 4 channels input ). The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently. The waveform update rate is 50,000wfms/s, which helps users to precisely observe the detailed waveform variation. Additionally, 7” WVGA color LCD display and the 256 color gradient display function together allow waveforms to be observed with the senses of transparency and gradation. With respect to the horizontal time scale adjustment knob and trigger level adjustment knob, GW Instek provides a very thoughtful design the zero key function, which allows engineers to work more effectively.

For mathematical analysis mode, 1Mpts FFT signal display makes the dull frequency domain signal analysis more delicate. Diversified trigger functions, X-Y mode analysis, and Go/NoGo function arm the GDS-1000B series oscilloscope with higher level measurement technologies. The GDS-1000B series oscilloscope also provides OpenWave connection software, which allows users to conduct waveform observation and data storage controlled by remote PC. Moreover, the innovative exterior design and compact design also bring much convenience to users. Other diversified and charming multi-functional operation demonstrates the concept of complete technology integration.

GDS-1000B SpecificationsGDS-1054B

Channels 4
Bandwidth DC ~ 50MHz (–3dB)
Rise Time 5ns
Bandwidth Limit 20MHz

GDS-1072B

Channels 2 + Ext
Bandwidth DC ~ 70MHz (–3dB)
Rise Time 5ns
Bandwidth Limit 20MHz

GDS-1074B

Channels 4
Bandwidth DC ~ 70MHz (–3dB)
Rise Time 5ns
Bandwidth Limit 20MHz

GDS-1102B

Channels 2 + Ext
Bandwidth DC ~ 100MHz (–3dB)
Rise Time 3.5ns
Bandwidth Limit 20MHz

GDS-1104B

Channels 4
Bandwidth DC ~ 100MHz (–3dB)
Rise Time 3.5ns
Bandwidth Limit 20MHz

 VerticalVertical Sensitivity Resolution8 bit :1mV*~10V/divInput CouplingAC, DC, GNDInput Impedance1MΩ// 16pF approx.DC Gain Accuracy*±3%PolarityNormal & InvertMaximum Input Voltage300Vrms, CAT I
(300Vrms CAT II with GTP-070A- 4/100A-4 10:1 probe)Offset Position Range1mV/div : ±1.25V
2mV/div ~ 100mV/div : ±2.5V
200mV/div ~ 10V/div : ±125VWaveform Signal ProcessPlus, -, ×, ÷, FFT, FFTrms, User Defined Expression
FFT: Spectral magnitude. Set FFT Vertical Scale to
Linear RMS or dBV RMS, and FFT Window to
Rectangular, Hamming, Hanning, or Blackman-
Harris TriggerSourceCH1, CH2, CH3*, CH4*, Line, EXT**
*four channel models only.
**two channel models only.Trigger ModeAuto (supports Roll Mode for 100 ms/div and
slower), Normal, Single SequenceTrigger TypeEdge, Pulse Width, Video, Pulse Runt, Rise & Fall,
Timeout, Alternate, Event-Delay(1~65535 events),
Time-Delay(Duration, 4nS~10S), BusHoldoff range4ns to 10sCouplingAC, DC, LF rej., Hf rej., Noise rej.Sensitivity1divExternal TriggerRange±15VSensitivityDC ~ 100MHz Approx. 100mV
100MHz ~ 200MHz Approx. 150mVInput Impedance1MΩ±3%~16pFHorizontalTime base Range1ns/div ~ 100s/div (1-2-5 increments)ROLL:100ms/div ~ 100s/divPre-trigger10 div maximumPost-trigger2,000,000 div maximumTimebase Accuracy±50 ppm over any ≥ 1 ms time intervalReal Time Sample Rate1GSa/s max.Record LengthMax. 10MptsAcquisition ModeNormal, Average, Peak Detect, SinglePeak Detection2nS (typical)Averageselectable from 2 to 256X-Y ModeX-Axis InputChannel 1; Channel 3*
*four channel models onlyY-Axis InputChannel 2; Channel 4*
*four channel models onlyPhase Shift±3° at 100kHz Cursors and MeasurementCursorsAmplitude, Time, Gating available; Unit:
Seconds(s), Hz(1/s), Phase(degree), Ration(%) Automatic Measurement36 sets: Pk-Pk, Max, Min, Amplitude, High, Low,
Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle
Area, ROVShoot, FOVShoot, RPREShoot,
FPREShoot, Frequency, Period, RiseTime, FallTime,
+Width, -Width, Duty Cycle, +Pulses, -Pulses,
+Edges, -Edges, FRR, FRF, FFR, FFF, LRR, LRF,
LFR, LFF, Phase Cursors measurementVoltage difference between cursors ( ΔV) Time
difference between cursors ( ΔT) Auto counter6 digits, range from 2Hz minimum to the rated
bandwidthControl Panel FunctionAutosetSingle-button, automatic setup of all channels for
vertical, horizontal and trigger systems, with undo
AutosetSave Setup20setSave Waveform24set DisplayTFT LCD Type7" TFT WVGA color displayDisplay Resolution800 horizontal × 480 vertical pixels (WVGA)InterpolationSin(x)/xWaveform DisplayDots, vectors, variable persistence (16ms~4s),
infinite persistenceWaveform Update Rate50,000 waveforms per second, maximumDisplay Graticule8 x 10 divisionsDisplay ModeYT, XYInterfaceUSB PortUSB 2.0 High-speed host port X1, USB High-speed
2.0 device port X1Ethernet Port(LAN)RJ-45 connector, 10/100Mbps with HP
Auto-MDIX (Only for the GDS-1054B, GDS-1074B, GDS-1104B.)Go-NoGo BNC5V Max/10mA TTL open collector outputKensington Style LockRear-panel security slot connects to standard
Kensington-style lockMiscellaneousMulti-language menuAvailable Operation EnvironmentTemperature: 0°C to 50°C. Relative Humidity
≤80% at 40°C or below; ≤ 45% at 41°C ~ 50°C On-line helpAvailable Dimensions380mmX208mmX127.3mm Weight2.8kg
