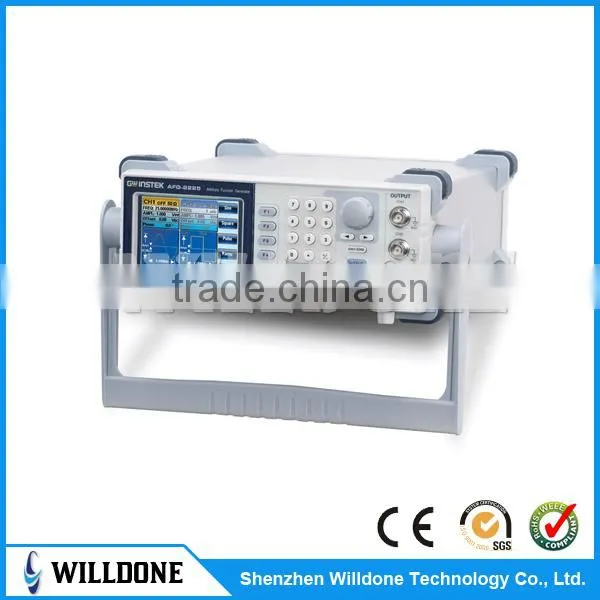

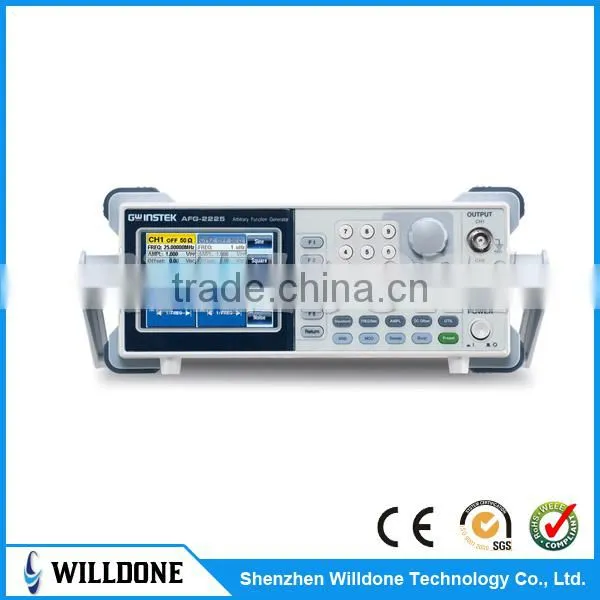

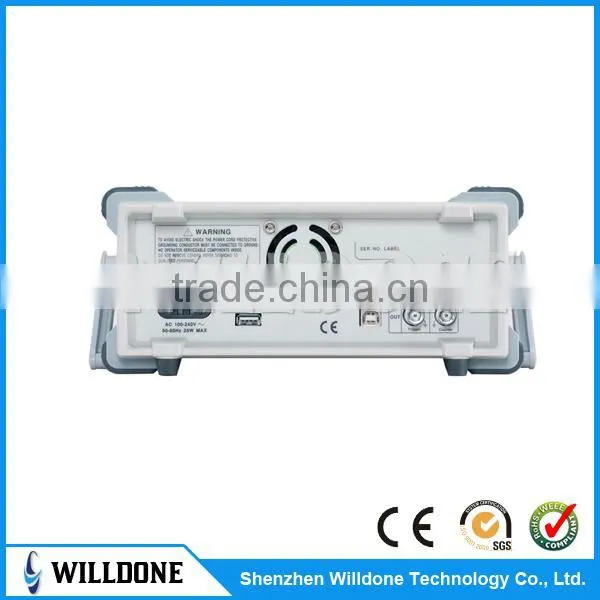

2017 New Design AFG-2225 Arbitrary Function Generators
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
GW Instek
Model Number:
AFG-2225
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Analog Oscilloscopes GOS-635G & GOS-622GNegotiableMOQ: 1 Piece -
2 Channel Digital Storage Oscilloscope GOS-653G & GOS-652GNegotiableMOQ: 1 Set
-
High Quality SFG-1000 Digital DDS Function GeneratorNegotiableMOQ: 1 Piece
-
DDS Function Generator SFG-1000US$ 1 - 1,000MOQ: 1 Piece
-
Analog Oscilloscopes GOS-653G & GOS-652GUS$ 1 - 1,000MOQ: 1 Piece
Place of Origin
Taiwan, China
Brand Name
GW Instek
Model Number
AFG-2225
Features
- Wide Frequency Ranges From 1μHz to 25MHz (sine/square wave)
- 1 μHz Resolution in Full Range
- Built-in Standard 120MSa/s, 10bit, 4k Points Arbitrary Waveform for Both Channels
- True Dual-Channel Output, CH2 Provides the Same Characteristics as CH1
- Couple, Tracking, Phase Operations of Dual Channel are Supported
- 1% ~ 99% Adjustable Duty Cycle for Square Waveform
- High Resolution and Colored TFT LCD with Friendly User Interface
- Multiple Editing methods to Edit Arbitrary Waveform Easily
- Built-in Standard AM/FM/PM/FSK/SUM/Sweep/Burst and Frequency Counter
- USB Host/Device Interface for Remote Control and Waveform Editing
| AFG-2225 models | CH1 | CH2 | ||
| Waveforms | Sine, Square, Ramp, Pulse, Noise, ARB | |||
| Arbitrary Functions | ||||
| Sample Rate | 120 MSa/s | |||
| Repetition Rate | 60 MHz | |||
| Waveform Length | 4k points | |||
| Amplitude Resolution | 10 bits | |||
| Non-Volatile Memory | 4k points | |||
| Frequency Characteristics | ||||
| Range | Sine, Square | 1uHz~25MHz | ||
| Ramp | 1MHz | |||
| Resolution | 1uHz | |||
| Accuracy | Stability | ±20 ppm | ||
| Aging | ±1 ppm, per 1 year | |||
| Tolerance | ≤1 mHz | |||
