Home > Instruments & Meters > Electronic Instrument > Oscilloscope > High Quality SFG-1000 Digital DDS Function Generator

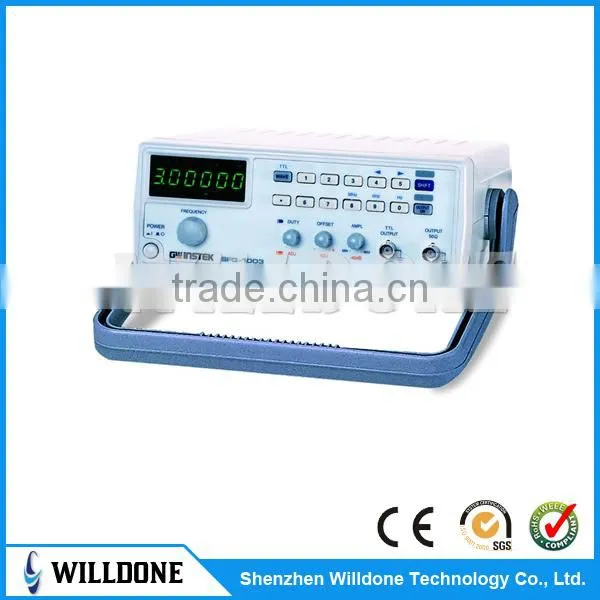

High Quality SFG-1000 Digital DDS Function Generator

Name: High Quality SFG-1000 Digital DDS Function Generator
Brand: GW Instek
SKU: 141226922
Availability: InStock

High Quality SFG-1000 Digital DDS Function Generator thumbnail-1

High Quality SFG-1000 Digital DDS Function Generator photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

GW Instek

Model Number:

SFG-1000

Contact Supplier Request Quote Chat Now

Shenzhen Willdone Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name GW Instek

Model Number SFG-1000

High Quality SFG-1000 Digital DDS Function Generator

Specification:

DDS Technique and FPGA Chip Design
Frequency Range:0.1Hz~3MHz
High Frequency Accuracy : ± 20ppm
High Frequency Stability : ± 20ppm
Max. Frequency Resolution : 100mHz
Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
Voltage Display (Only SFG-1013)

The SFG-1000 Series, an economic function generator with high accuracy and high stability output, are designed based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA.

The 3MHz frequency range and the output waveform selection of Sine, Square, Triangle and TTL available in the SFG-1000 Series adequately provide the fundamental functions to ensure high confidence in test results. The DDS technology at an affordable price gives a high value solution to the users who need a signal source for accurate but simple measurement applications.

MAIN
Output Function Frequency Range(For Sine, Square) Frequency Range(For Triangle) Frequency Resolution Frequency Stability Frequency Accuracy Aging Amplitude Range Amplitude Accuracy Impedance Attenuator DC Offset Duty Control Range Display Output Control	Sine, Square, Triangle, TTL 0.1Hz ~ 3MHz 0.1Hz ~ 1MHz 0.1Hz maximum ±20ppm ±20ppm ±5ppm/year 10Vp-p (into 50Ω load) ±20% at maximum position (only SFG-1013) 50Ω±10% -40dB±1dB×1 <-5V ~ >5V (into 50Ω load) 25% ~ 75% below 1MHz (for square wave only) 6-digit LED display ON/OFF selector

GENERAL
Operation Environment	Indoor use, altitude <2000m Ambient Temperature : 0°C ~ 40°C Relative Humidity: <80% at 0°C ~ 40°C Up to 70% at 35°C ~ 40°C Installation category II Pollution Degree 2
POWER SOURCE
		AC 100V/120V/220V/240V±10%, 50/60Hz
STORAGE CONDITION
Temperature Humidity		-10°C ~ 70°C 70% (Maximum).
DIMENSION & WEIGHT
251(W) x 91(H) x 291(D) mm, Approx. 2.1kg
