Digital Storage Oscilloscopes GDS-3000 Series

Digital Storage Oscilloscopes GDS-3000 Series thumbnail-1
Digital Storage Oscilloscopes GDS-3000 Series thumbnail-2
Digital Storage Oscilloscopes GDS-3000 Series thumbnail-3
Digital Storage Oscilloscopes GDS-3000 Series photo-1

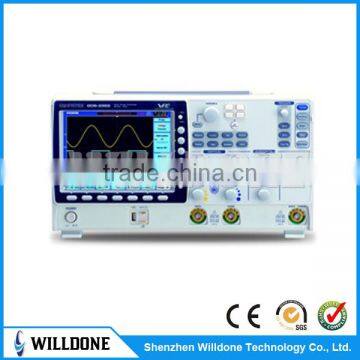

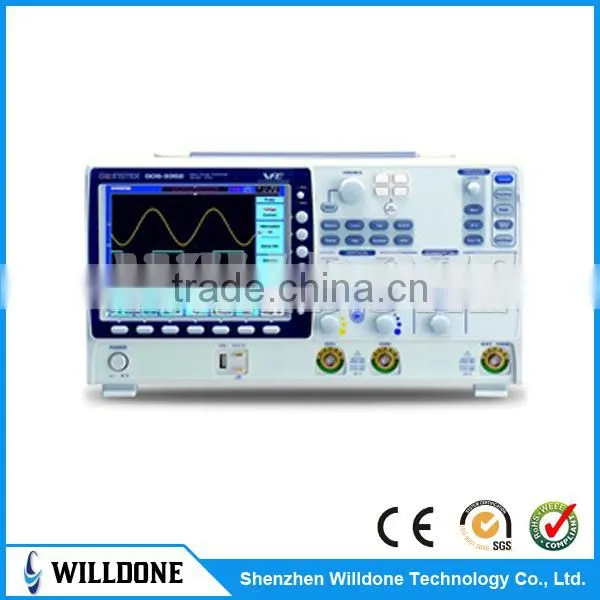

Digital Storage Oscilloscopes GDS-3000 Series photo-2

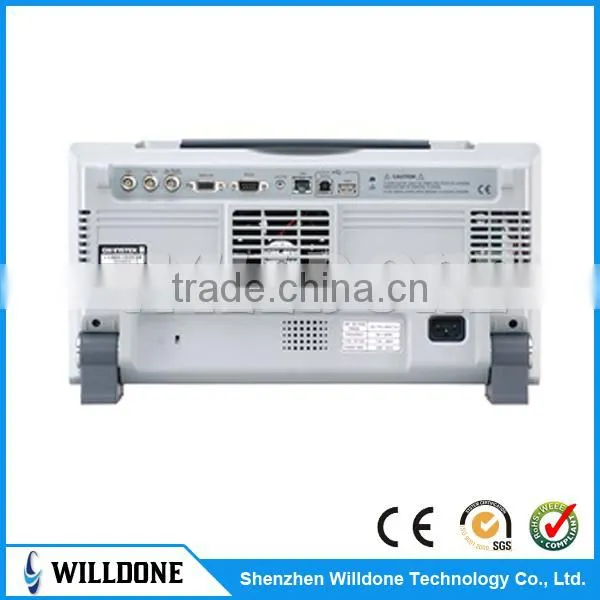

Digital Storage Oscilloscopes GDS-3000 Series photo-3
US$ 1 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
GW Instek
Model Number:
GDS-3000, GDS-3152, GDS-3504, GDS-3354, GDS-3154
Contact Supplier Request Quote Chat Now
Shenzhen Willdone Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name GW Instek
Model Number GDS-3000, GDS-3152, GDS-3504, GDS-3354, GDS-3154


Digital Storage Oscilloscopes



Features

  •
    500/350/250/150MHz with 2/4 Channels
  •
    5GSa/s RT or 100GSa/s ET Sampling Rate
  •
    Independent Memory for Each Channel
  •
    VPO Technology
  •
    Large 8-inch 800x600 Display
  •
    Split Screen Function
  •
    3 Built-in Impedances (50Ω/75Ω/1MΩ)
  •
    Power Analysis Software (Optional)
  •
    Serial Bus Analysis Software for I2C, SPI and UART (Optional)

A Hi-tech DSO Platform


The GDS-3000 Series is a new platform of 4-input channels, 500MHz bandwidth, 5GSa/s sampling rate, and VPO waveform display. The split screen feature has been designed to meet the requirements of multi-window & multi-signal tests in the research and the manufacturing fields. The optional power analysis software and the optional serial bus analysis software are available to facilitate the engineer's tasks in testing and manufacturing of the associated products.


Three new differential probes, GDP-025, GDP-050 & GDP-100, and two new current probes, GCP-005 ,GCP-020 ,GCP-100 and GCP-530 & GCP-1030, are coming along with the GDS-3000 Series to provide total solutions for a wide variety of applications in the industry, service and education market sectors. The GDS-3000 Series, a high-tech platform carrying thoughtful features, brings very high customer value to both general purpose market and professional market.





  GDS-3504 GDS-3502 GDS-3354 GDS-3352 GDS-3254 GDS-3252 GDS-3154 GDS-3152
Waveform Technology VPO ( Visual Persistence Oscilloscope )
Display

8" TFT LCD SVGA
Bandwidth (MHz)

500

 500 350 350 250 250 150 150
Number of Channel

4

 2 4 2 4 2 4 2
Memory Depth

25k per channel
Sample Rate

4GSa/s (RTS)
100GSa/s (ETS)

5GSa/s (RTS)
100GSa/s (ETS)
 Vertical Resolution  8-bit
Vertical Sensitivity   2mV/div ~ 5V/div(@1MΩ)
2mV/div ~ 1V/div (@50/75Ω)
Time Base Range 1ns/div ~ 100s/div
(1-2.5-5 increments)
Input Impedance Selection  1MΩ / 75Ω / 50Ω
Auto Measurement 28
Waveform Memory 24
 Panel Setup Memory 20
Auto-Set V
 Auto/Normal Trigger V
ALT Trigger  V
 TV Trigger V
Cursor Readout  V
 XY Mode V
Zoom  V
 Go/NoGo V
Zoom FFT   V, *It Support From App Software.
 Counter Function V
Function Generator  -
Logic Analyzer -
Data Logger -
Digital Storage V
Go/NoGo Output V
Interface USB Host/Device, RS-232, GPIB(Opt.), Lan
SVGA Output V
Buzzer Alarm V
PictBridge Compatible V
Battery Power Operation -
LED Indicators -
Z-Axis Input -
LabView Driver V
Power Source AC 100V ~ 240V
