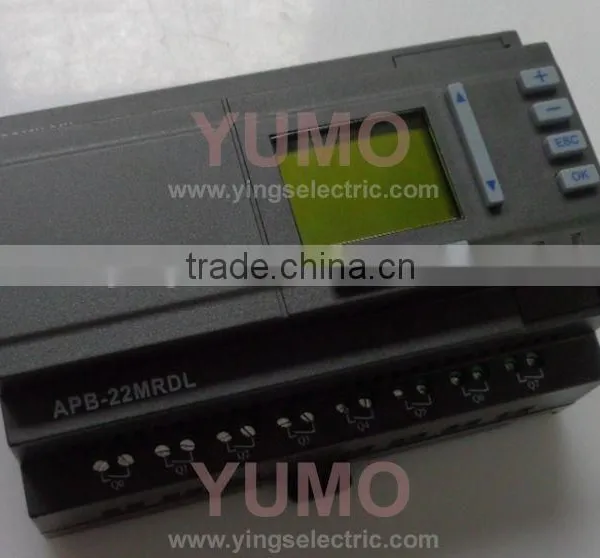

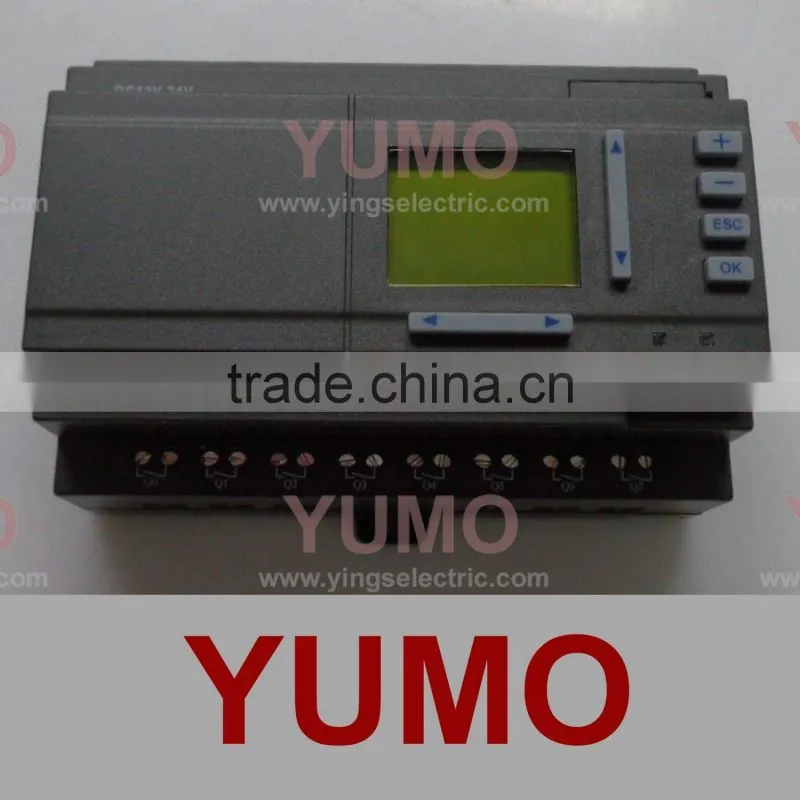

PLC - Programmable Logic Controller module APB-22MRDL
- 1000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | YUMO | Model Number: | APB-22MRDL |
Product Description
Specifications
PLC - Programmable Logic Controller module APB-22MRDL PLC
Model Number:APB-22MRD(L) Brand Name:yumo Certificate:CE
- Quality assurance: 1 year Website:

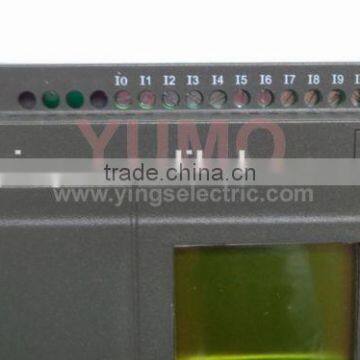

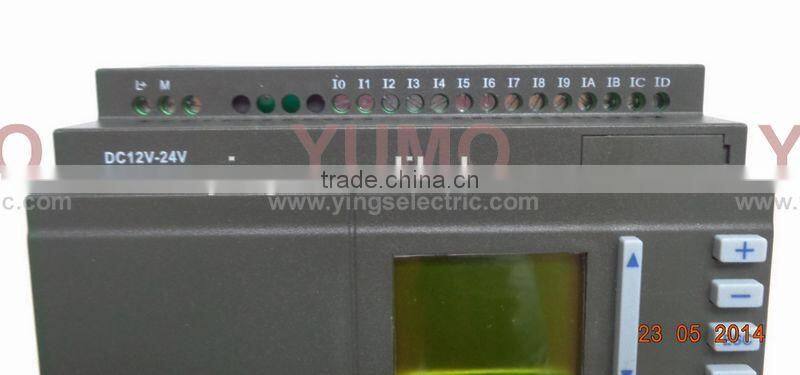

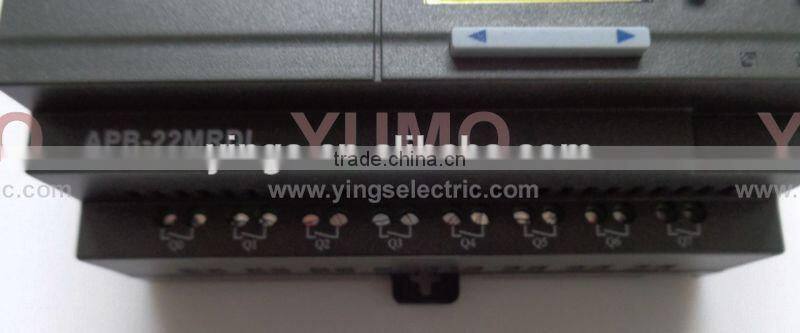

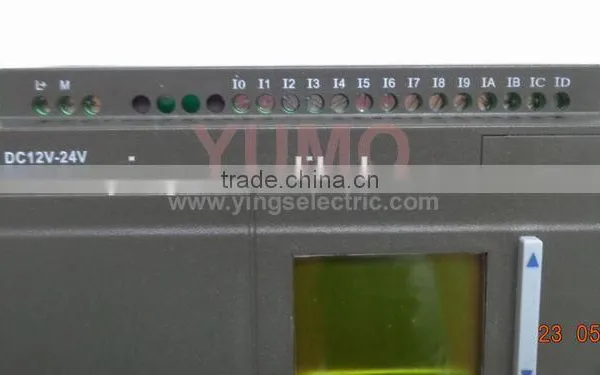

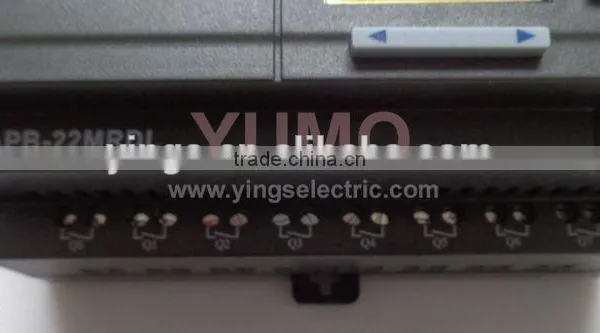

APB-22MRD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points relay output
|
Features:

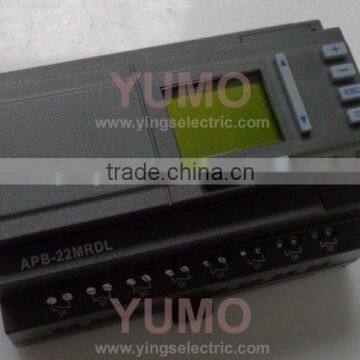

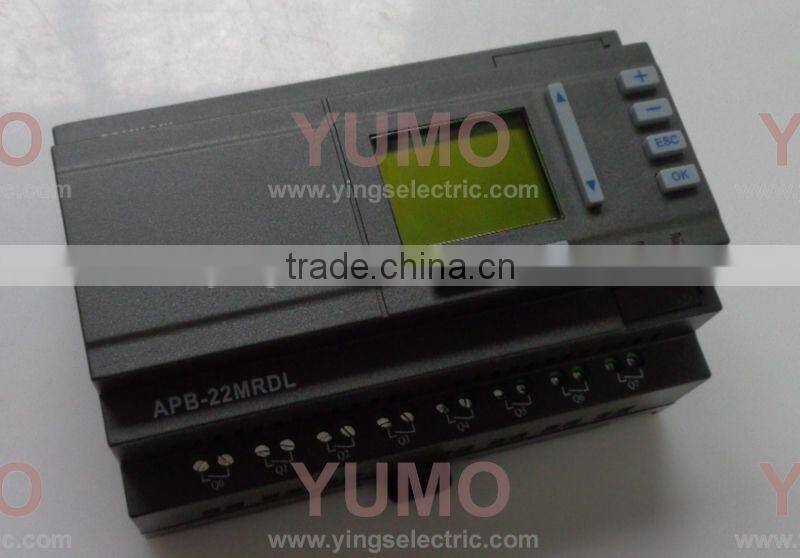

Note: The economical type is supplied without LCD panel, and the basic type (L) is supplied with LCD panel.
Main module:122224 points: Extension module: 22 points; It is flexible for extending, and the optimal configuration: 7 I/O extension modules, 1 voice module, and 1 SMS module;
Program memory capacity: 320 FBDs, EEPROM;It is allowed to place a Li-ion battery to power the clock; Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs 0/4-20mA and 2 analog outputs 0/4-20mA; High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 50KHZ; MODBUS protocol, and can be connected to SH-300 (Text Panel); New function blocks: pulse width modulation (PWM), pulse output (PTO), ACC, SMS and analog calculation etc.
Surge Immunity | 2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5) | ||||||||
Electrostatic Discharge (outer casing) | ±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5) | ||||||||
Ambient Temperature | -10°C~+55°C | ||||||||
Storage Temperature | -40°C~+70°C | ||||||||
Ambient Humidity | 5%~95%RH | ||||||||
Degree of Protection | IP20(Non-waterproof) | ||||||||
Installation | Fixing with M3 screws or Standard DIN rail mounting | ||||||||
Dimensions (mm) | 71*99*90(12 points);126*99*90(22 points);126*99*90(24 points) | ||||||||
Programming Language | FBD | ||||||||
Points | 12 points/22 points/24 points/can support 7 I/O extension modules | ||||||||
Memory Capacity | 320 FBDs | ||||||||
Filtering Duration of Input Signal | It can be set to improve the stability of signal | ||||||||
Real-time Clock | 160h,can place a Li-ion battery if it is necessary | ||||||||
Password Protection | Multiple passwords protection | ||||||||
High-speed Operation | At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 50KHz | ||||||||
Analog Operation | At most 12 voltage 0-10V and 2 current 0/4-20mA analog inputs, and 2 analog outputs 0/4-20mA | ||||||||
Power Failure Protection | Yes | ||||||||
Simulate Monitoring | Yes | ||||||||
Communication Interface | TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces | ||||||||
Baud Rate | 9600bps | ||||||||
Communication Protocol | MODBUS RTU
| ||||||||
Important Information about PLC Conditions
1. All of the PLC are brand new, top quality components: absolutely no used items or counterfeits.
2. The pictures are for reference only. Exact specifications should be obtained from the datasheet.
3. Prices, specifications, and availability of all items are subject to change without notice.
4. We are not responsible for typographical errors.
Payment Terms
- We accept payments made by Western Union,TT,PayPal.
Since you made the payment successfully, you can send us the Reference NO or MTCN.
Shipping
1.We will ship the items within 5 working days after the payment is reached.
2.We ship to you by Express.
3.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4.Any import fees or charges are the buyer's responsibility.
Warranty
Warranty is available based on the following points:
1.The PLC guaranteed for one year.
2.If the item you purchase from our company are not of perfected quality, that is they don't work electronically t o manufacturers specifications, simply return them to us for replacement or refund.
3.If the items is defective, please notify us within 3 days of delivery.
4.Any items must be returned in their original condition to qualify for a refund or replacement.
5.The buyer is responsible for all the return shipping cost incurred.
