APB-22MRDL DC12V-24V 14 Points Digital Input 8 Points Relay Output PLC Supplier Plc Control Panel

Yueqing Yings Import & Export Co., Ltd.
APB-22MRDL DC12V-24V 14 Points Digital Input 8 Points Relay Output PLC Supplier Plc Control Panel thumbnail-1
APB-22MRDL DC12V-24V 14 Points Digital Input 8 Points Relay Output PLC Supplier Plc Control Panel thumbnail-2
APB-22MRDL DC12V-24V 14 Points Digital Input 8 Points Relay Output PLC Supplier Plc Control Panel photo-1
APB-22MRDL DC12V-24V 14 Points Digital Input 8 Points Relay Output PLC Supplier Plc Control Panel photo-2
US$ 90 - 99 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YUMO
Model Number:
APB-22MRDL
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YUMO
Model Number APB-22MRDL

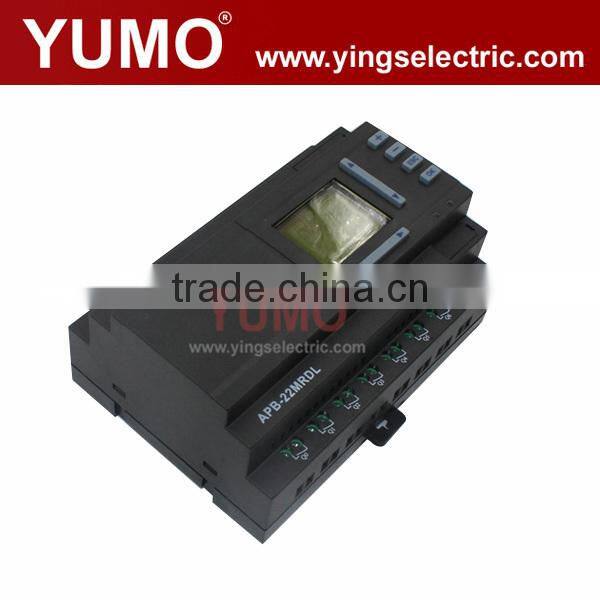

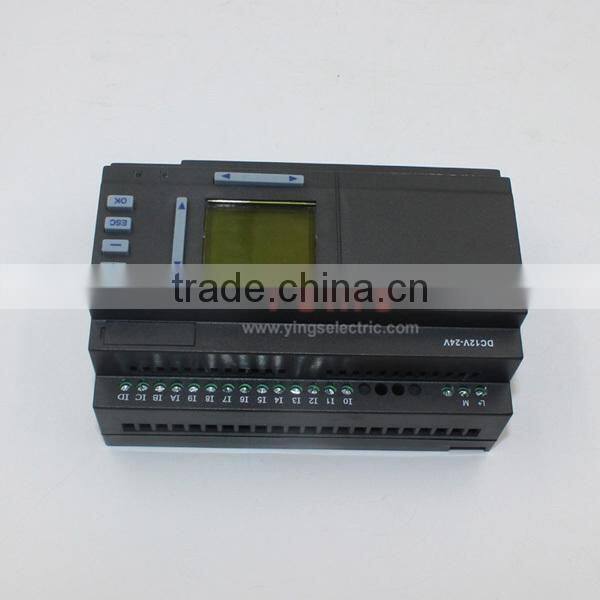

APB-22MRDL DC12V-24V 14 points digital input 8 points relay output plc control panel supplier plc control panel

YUMO ELECTRIC  APB Series plc control panel



 Main module: 122224 points; Extension module: 22 points; It
is flexible for extending, and the optimal max. configuration: 7 I/O
extension modules, 1 voice module, and 1 SMS module;
 Program memory capacity: 320 FBDs, EEPROM;
 It is allowed to place a Li-ion battery to power the clock;
Under the circumstance of DC12-24V, the main machine at
most has 12 voltage analog inputs 0-10V, 2 current analog inputs
4-20mA and 2 analog outputs 4-20mA;
 High-speed operation: at most 4 high-speed inputs 10KHZ and
2 high-speed outputs 10KHZ;
 MODBUS protocol, and can be connected to SH-300 (Text
Panel);
 New function blocks: pulse width modulation (PWM), pulse
output (PTO), ACC, SMS and analog calculation etc.;



Technical Parameters

Item

APB-12MRD(L)

APB-12MTD(L)

APB-12MGD(L)

APB-22MRA(L)

APB-24MRDL

APB-22MRD(L)
APB-22MTD(L)
APB-22MGD(L)
APB-12MRA(L)


Surge Immunity

2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5)

Electrostatic Discharge (outer casing)

±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5)

Ambient Temperature

-10℃~+55℃

Storage Temperature

-40℃~+70℃

Ambient Humidity

5%~95%RH

Degree of Protection

IP20(Non-waterproof)

Installation

Fixing with M3 screws or Standard DIN rail mounting

Dimensions (mm)

71*99*58.5(12 points);126*99*58.5(22 points);126*99*58.5(24 points)

Programming Language

FBD

Points

12 points/22 points/24 points/can support 7 I/O extension modules

Memory Capacity

320 FBDs

Filtering Duration of Input Signal

It can be set to improve the stability of signal

Real-time Clock

160h,can place a Li-ion battery if it is necessary

Password Protection

Multiple passwords protection

High-speed Operation

At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 10KHz

Analog Operation

At most 12 voltage 0-10V and 2 current 4-20mA analog inputs, and 2 analog outputs 0/4-20mA

Power Failure Protection

Yes

Simulate Monitoring

Yes

Communication Interface

TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces

Baud Rate

9600bps

Communication Protocol

MODBUS RTU

Power Supply

Rated Voltage

DC12-24V

DC12-24V

DC12-24V

AC110-220V

DC12-24V

Permissible Range

DC11-28V

DC11-28V

DC11-28V

AC85V-265V

DC11-28V

Power Consumption

3.5w
--
--
--
--

Digital Input

Input Type

NPN/PNP

NPN/PNP

NPN/PNP

NPN/PNP

NPN/PNP

Input Signal 0

DC0-5V

DC0-5V

DC0-5V

AC0-70V

DC0-5V

Input Signal 1

DC8.5-28V

DC8.5-28V

DC8.5-28V

AC85-265V

DC8.5-28V

Isolation

Non-isolation

Non-isolation

Non-isolation

Photoelectric isolation

Non-isolation

Isolated Group

--

--

--

14

--

Isolated Voltage

--

--

--

2500/5000Vr.m.s

--

Digital Output

Output Type

Relay

Transistor(NPN)

Transistor(PNP)

Relay

Relay

Rated Voltage

24VDC/220VAC

24VDC

24VDC

24VDC/220VAC

24VDC/220VAC

Isolation Method

Relay isolation

-

-

Relay isolation

Relay isolation

Analog Input

Input Type

(DC0-10V)/8 inputs

(DC0-10V)/8 inputs

(DC0-10V)/8 inputs

--

(4-20mA)/2 inputs

(DC0-10V)/12 inputs
(DC0-10V)/12 inputs
(DC0-10V)/12 inputs
(DC0-10V)/12 inputs

Analog Output

Output Type

--

--

--

--

4-20mA/2inputs

A/D Conversion

--

--

--

--

12 bits

Isolation

Non-isolation

Non-isolation

Non-isolation

Non-isolation

Non-isolation

High-speed Operation



Input Type

4 inputs /10KHz

4 inputs /10KHz

4 inputs /10KHz

--

4 inputs /10KHz

Support single-phase counter and two-phase counterSupport single-phase counter and two-phase counterSupport single-phase counter and two-phase counter
--
Support single-phase counter and two-phase counter



Output Type



--

2 outputs / 10KHZ

2 outputs /10KHZ



--



--

Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse

Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse

Type

Note: The economical type is supplied without LCD panel, and the basic type is supplied with LCD panel.

APB-12MRD(L)

DC12V-24V

8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports

4 points relay output

APB-12MTD(L)

DC12V-24V

8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports

4 points NPN transistor output

Q2,Q3 can be high-speed output ports

APB-12MGD(L)

DC12V-24V

8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports

4 points PNP transistor output

Q2,Q3 can be high-speed output ports

APB-22MRA(L)

AC100V-240V

14 points input

8 points relay output

APB-22MRD(L)

DC12V-24V

14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports

8 points relay output



APB-22MTD(L)

DC12V-24V

14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports

8 points NPN transistor output

Q2,Q3 can be high-speed output ports

APB-22MGD(L)

DC12V-24V

14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports

8 points PNP transistor output

Q2,Q3 can be high-speed output ports

APB-24MRDL

DC12V-24V

2points for current input, and 14points for digital input (the first 12 points can be 0~10V analog inputs); I4-I7 can be high-speed ports

6 points relay output + 2 analog outputs

APB-22ERA

AC100V-240V

14 points digital input

8 points relay output

APB-22ERD

DC12V-24V

14 points digital input

8 points relay output

APB-22ETD

DC12V-24V

14 points digital input

8 point NPN transistor output

APB-22EGD

DC12V-24V

14 points digital input

8 point NPN transistor output

 Auxiliary Module

APB-SMS

supports I/O control and SMS alarm, as well as receives and sends short message in another mode

APB-EXPMC

applied in the long-distance signal transmission interface and constitutes a nerwork with 485 bus

APB-EXNET

use cable network and TCP/IP protocol to link the remote network


Dimensions

Take the 12 points module as an example. The 12 points, 22 points, and 24 points modules and other extension modules share the same width and height, the only one difference exists in the length.

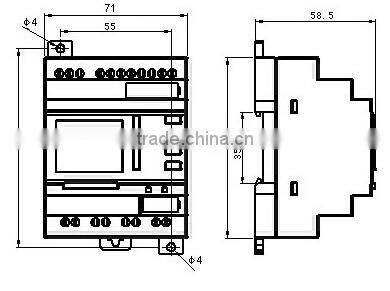

APB-22MRDL DC12V-24V 14 points digital input 8 points relay output PLC supplier plc control panel



Type

Dimensions(mm)

12 points main module

71*99*58.5

22 points main module

126*99*58.5

24 points main module

126*99*58.5

I/O extension module

126*99*58.5

SMS extension module

71*99*58.5











APB-22MRDL DC12V-24V 14 points digital input 8 points relay output PLC supplier plc control panelAPB-22MRDL DC12V-24V 14 points digital input 8 points relay output PLC supplier plc control panelAPB-22MRDL DC12V-24V 14 points digital input 8 points relay output PLC supplier plc control panelAPB-22MRDL DC12V-24V 14 points digital input 8 points relay output PLC supplier plc control panel


  plc control panel --Programmable Logic Controller APB-22MRDL plc control panel --Programmable Logic Controller APB-22MRDL plc control panel --Programmable Logic Controller APB-2 APB-22MRDL DC12V-24V 14 points digital input 8 points relay output plc control panel supplier plc control panel  APB-22MRDL DC12V-24V 14 points digital input 8 points relay output plc control panel supplier plc control panel  APB-22MRDL DC12V-24V 14 points digital input 8 points relay output plc control panel supplier plc control panel  APB-22MRDL DC12V-24V 14 points digital input 8 points relay output plc control panel supplier plc control panel  APB-22MRDL DC12V-24V 14 points digital input 8 points relay output plc control panel supplier plc control panel  ler APB-22MRDL plc control panel --Programmable Logic Controller APB-22MRDL
