APB-22MRD(L) DC12V-24V 14 points digital input 8 points relay output Programmable Intelligent Logic Controller PLC
Features:
Note: The economical type is supplied without LCD panel, and the basic type (L) is supplied with LCD panel.
Main module:122224 points: Extension module: 22 points; It is flexible for extending, and the optimal configuration: 7 I/O extension modules, 1 voice module, and 1 SMS module;
Program memory capacity: 320 FBDs, EEPROM;It is allowed to place a Li-ion battery to power the clock; Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs 0/4-20mA and 2 analog outputs 0/4-20mA; High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 50KHZ; MODBUS protocol, and can be connected to SH-300 (Text Panel); New function blocks: pulse width modulation (PWM), pulse output (PTO), ACC, SMS and analog calculation etc.
Surge Immunity | 2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5) | ||||||||
Electrostatic Discharge (outer casing) | ±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5) | ||||||||
Ambient Temperature | -10°C~+55°C | ||||||||
Storage Temperature | -40°C~+70°C | ||||||||
Ambient Humidity | 5%~95%RH | ||||||||
Degree of Protection | IP20(Non-waterproof) | ||||||||
Installation | Fixing with M3 screws or Standard DIN rail mounting | ||||||||

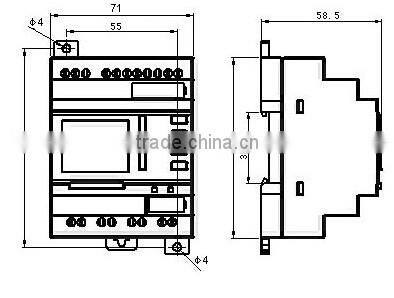

Dimensions (mm) | 71*99*90(12 points);126*99*90(22 points);126*99*90(24 points) | ||||||||
Programming Language | FBD | ||||||||
Points | 12 points/22 points/24 points/can support 7 I/O extension modules | ||||||||
Memory Capacity | 320 FBDs | ||||||||
Filtering Duration of Input Signal | It can be set to improve the stability of signal | ||||||||
Real-time Clock | 160h,can place a Li-ion battery if it is necessary | ||||||||
Password Protection | Multiple passwords protection | ||||||||
High-speed Operation | At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 50KHz | ||||||||
Analog Operation | At most 12 voltage 0-10V and 2 current 0/4-20mA analog inputs, and 2 analog outputs 0/4-20mA | ||||||||
Power Failure Protection | Yes | ||||||||
Simulate Monitoring | Yes | ||||||||
Communication Interface | TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces | ||||||||
Baud Rate | 9600bps | ||||||||
Communication Protocol | MODBUS RTU
| ||||||||
APB-22MRD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points relay output
|
APB-22MRD(L) DC12V-24V 14 points digital input 8 points relay output Programmable Intelligent Logic Controller PLC APB-22MRD(L) DC12V-24V 14 points digital input 8 points relay output Programmable Intelligent Logic Controller PLC APB-22MRD(L) DC12V-24V 14 points digital input 8 points relay output Programmable Intelligent Logic Controller PLC APB- -22MRD(L) DC12V-24V 14 points digital input 8 points relay output Programmable Intelligent Logic Contr22MRD(L) DC12V-24V 14 points digital input 8 points relay output Programmable Intelligent Logic Controller PLC 22MRD(L) DC12V-24V 14 points digital input 8 points relay output Programmable Intelligent Logic Controller PLC APB-
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
