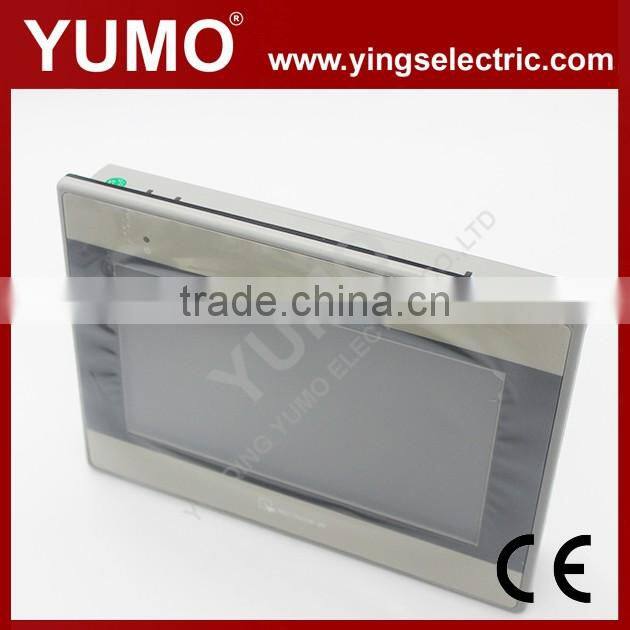

Weintek easyview weinview MT6071IE 7 inch HMI (Human Machine Interface) touch screen
| Specifications | |
| Construction | Plastic molding housing |
| Display | 7” 65,536 color TFT LCD |
| CPU and core logic | 32Bit RISC 400MHz processor |
| DRAM | 64MB DDR2 on board |
| Storage | 128MB Flash memory on board, |
| I/O | USB Host USB 2.0 x 1 |
| USB Client USB 2.0 x 1 | |
| Ethernet N/A | |

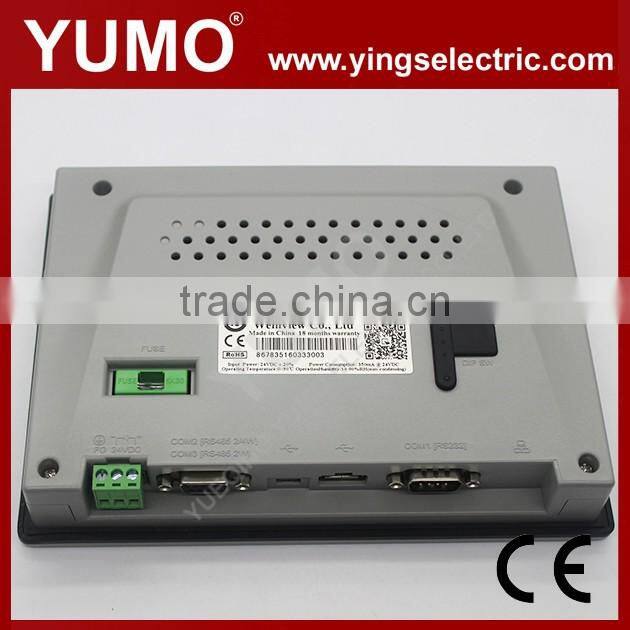

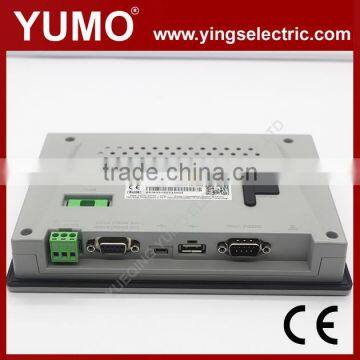

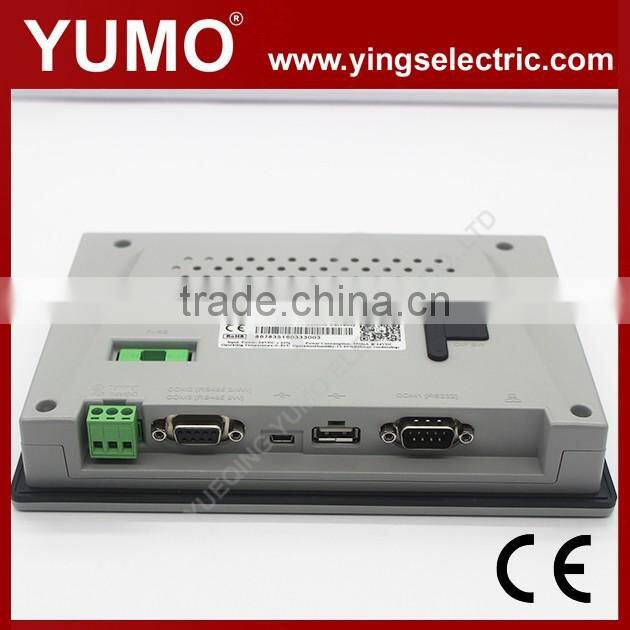

| COM Port | |
| COM1: RS-232, | |
| COM2: RS-485 2w/4w, | |
| COM3: RS-485 2w | |
| RTC | Built-in |
| Power Input | 24±20% VDC, 250mA@24VDC |
| Dimension(W*H*D) | 200*146*42.5mm |
| Weight | 0.85kg |
| Software | EB8000 V2.0.0 or later |
| LCD Display | |
| Display type | TFT LCD |
| Display size(diagonal) | 7” |
| Max colors | 65536 |
| Resolution | 800*480 |
| Pixel pitch(HxV, mm) | 0.1905*0.1905 |
| Viewing angle(°) | 70/50/70/70(T/B/R/L) |
| Luminance(cd/m2) | 500 |
| Backlight | LED |
| Backlight Life Time | 30000 hrs |
| Contrast ratio | 500:01:00 |
| Touchscreen | |
| Type | 4-wire, analog resistive |
| Resolution | continuous |
| Light transmission | above 80% |
| Life | 1 million activation minimum |
| Environmental Specifications | |
| Operating temperature | 0~50°c (32~122°F) |
| Storage temperature | -20~60 °c (-4~140 °F) |
| Relative humidity | 10~90%@40 °c (non-condensing) |
| Shock(operation) | 10~25Hz |
| (X,Y,Z direction 2G 30 minutes) | |
| CE/FCC | EN 55022:2006 Class A |
| EN 55024:1998+A1;2001+A2;2003 | |
| EN 61000-3-2:2006 | |
| EN 61000-3-3:1995+A1;2001+A2;2005 | |
| AS/NZS CISPR 22:2009+A1:2010 | |
| Front panel meets NEMA4/ IP65 | |
Weintek easyview weinview MT6070IE 7 inch HMI (Human Machine Interface) touch screen Weintek easyview weinview MT6070IE 7 inch HMI (Human Machine Interface) touch screen Weintek easyview weinview MT6070IE 7 inch HMI (Human Machine Interface) touch screen Weintek easyview weinview MT6070IE 7 inch HMI (Human Machine Interface) touch screenWeintek easyview weinview MT6070IE 7 inch HMI (Human Machine Interface) touch screen
| ITEM | Description |
| TK Series | |
| TK6050iP | 4.3",65536color,TFT,480x272,300cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,support MPI |
| TK6070iP | 7",65536color,TFT,800x480,350cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,support MPI |
| TK6070iH | 7",65536color,TFT,800x480,350cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,support MPI |
| TK8070IH | 7",65536color,TFT,800x480,350cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,10/100-Base-Tsupport MPI |
| TK6102iV3 | 10"65536color,TFT,800x480,300cd/m2,500:1,LED,CPU400MHZ,64MB-DRAM,128MBFiash,support MPI |
| TK6102iV5 | 10"65536color,TFT,800x480,300cd/m2,500:1,LED,CPU400MHZ,64MB-DRAM,128MBFiash,support MPI |
| MT Series | |
| MT8070iER | 7",16M color,TFT,800x480,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT6071iE | 7",16M color,TFT,800x480,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT8050iE | 4.3",16M color,TFT,480x272,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, 10/100 Base-T, support MPI |
| MT8070iE | 7",16M color,TFT,800x480,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT8100iE | 10", 262K color,TFT,800x480,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT8101iE | 10", 262K color,TFT,800x480,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT8121iE | 12.1",16.2M color,TFT,1024x768,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT8150iE | 15",16.2M color,TFT,1024x768,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT6050iP | 4.3",65536color,TFT,480x272,300cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,support MPI |
| MT6070iH5 | 7",65536color,TFT,800x480,350cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,support MPI |
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
