Home > Consumer Electronics > Display & Accessories > LCD Module > Weintek Easyview Weinview MT8071IE 7 Inch HMI (Human Machine Interface) Touch Screen

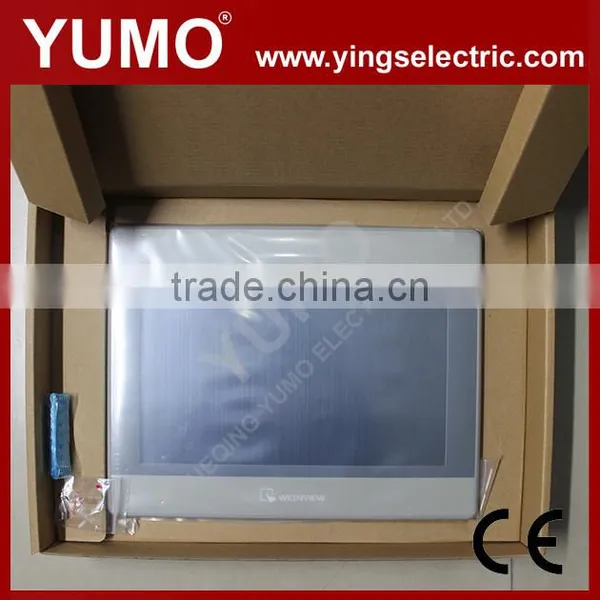

Weintek Easyview Weinview MT8071IE 7 Inch HMI (Human Machine Interface) Touch Screen
US$ 190 - 262
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
EasyView Weintek
Model Number:
MT6070IH EasyView Weintek
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Weintek HMI MT Series LCD Touch Screen MT6071iP Human Machine InterfaceUS$ 120 - 150MOQ: 1 Piece -
New and Original Weintek MT6071IE HMI Touch Screen Panel 7 Inch MT6071IEUS$ 190 - 210MOQ: 10000 Pieces
-
New and Original Weintek HMI MT Series LCD Touch Screen MT6071iP 1WV Human Machine InterfaceUS$ 120 - 150MOQ: 1 Piece
-
Human Machine Interface MT6070IH 3WV 7inch HMI Panel EasyView WeintekUS$ 180 - 250MOQ: 1 Piece
-
Weintek Weinview MT6070iH 5WV 7 Inch HMI Human Machine Interface Touch ScreenUS$ 160 - 230MOQ: 1 Piece
Place of Origin
Taiwan, China
Brand Name
EasyView Weintek
Model Number
MT6070IH EasyView Weintek
Type
TFT
Weintek easyview weinview MT8071IE 7 inch HMI (Human Machine Interface) touch screen
Product Description
| Show | Monitor | 7 "TFT |
| Resolution | 800x480 | |
| Brightness | 350 | |
| Contrast | 500:01:00 | |
| Backlight Type | LED | |
| Backlight Life | > 30,000 hours | |
| Display Colors | 24 bits | |
| Touch panel | Type | 4-wire resistive |
| Touch Accuracy | Action area length (X) ± 2%, the width (Y) ± 2% | |
| Memory | Flash (Flash) | 128 MB |
| Memory (RAM) | 128 MB | |
| Processor | Cortex A8 32Bit RISC 600MHz | |
| I / O interface | USB Host | USB 2.0 x 1 |
| Ethernet Interface | 10/100 Base-T | |
| Serial Interface | Com1: RS-232, COM2 port RS-485 2w / 4w, Com3: RS-485 2w | |
| Calendar | Internal | |
| Power supply | Input Power | 24 ± 20% VDC |
| Power | 350mA @ 24V | |
| Power Isolation | Internal | |
| Withstand voltage | 500VAC (1 min) | |
| Insulation resistance | More than 50MΩ @ 500VDC | |
| Vibration resistance | 10 to 25Hz (X, Y, Z direction 2G30 minutes) | |
| Specification | Shell Material | Engineering Plastics |
| Dimensions WxHxD | 200.3 x146.3 x 34mm | |
| Hole Size | 192 x 138 mm | |
| Weight | About 0.6 kg | |
| Operating environment | Degree of protection | IP65 front panel protection |
| Storage temperature | -20 ° ~ 60 ° C (-4 ° ~ 140 ° F) | |
| Ambient temperature | 0 ° ~ 50 ° C (32 ° ~ 122 ° F) | |
| Operating Humidity | 10% ~ 90% RH (non-condensing) | |
| Authenticate | CE | Complies with CE certification standards |
| UL | - | |
| Use Software | EasyBuilder Pro V4.10.04 or later |
| ITEM | Description |
| TK Series | |
| TK6050iP | 4.3",65536color,TFT,480x272,300cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,support MPI |
| TK6070iP | 7",65536color,TFT,800x480,350cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,support MPI |
| TK6070iH | 7",65536color,TFT,800x480,350cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,support MPI |
| TK8070IH | 7",65536color,TFT,800x480,350cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,10/100-Base-Tsupport MPI |
| TK6102iV3 | 10"65536color,TFT,800x480,300cd/m2,500:1,LED,CPU400MHZ,64MB-DRAM,128MBFiash,support MPI |
| TK6102iV5 | 10"65536color,TFT,800x480,300cd/m2,500:1,LED,CPU400MHZ,64MB-DRAM,128MBFiash,support MPI |
| MT Series | |
| MT8070iER | 7",16M color,TFT,800x480,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT6071iE | 7",16M color,TFT,800x480,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT8050iE | 4.3",16M color,TFT,480x272,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, 10/100 Base-T, support MPI |
| MT8070iE | 7",16M color,TFT,800x480,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT8100iE | 10", 262K color,TFT,800x480,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT8101iE | 10", 262K color,TFT,800x480,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT8121iE | 12.1",16.2M color,TFT,1024x768,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT8150iE | 15",16.2M color,TFT,1024x768,LED,Cortex-A8 600 Mhz CPU,128MB-Flash, RS-485 Dual Isolation, PCB coating, support MPI |
| MT6050iP | 4.3",65536color,TFT,480x272,300cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,support MPI |
| MT6070iH5 | 7",65536color,TFT,800x480,350cd/m2,500:1,LED,CPU 400MHZ,64MB-DRAM,128MBFlash,support MPI |
