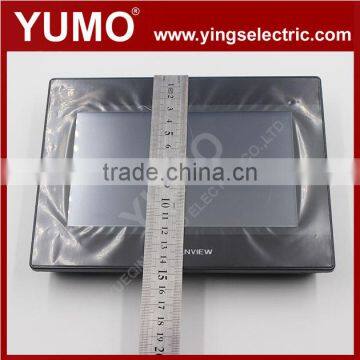

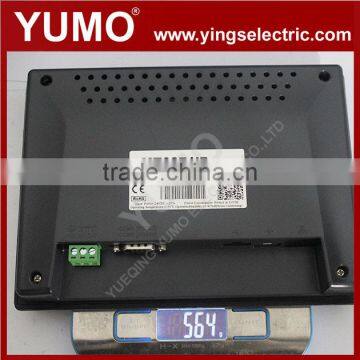

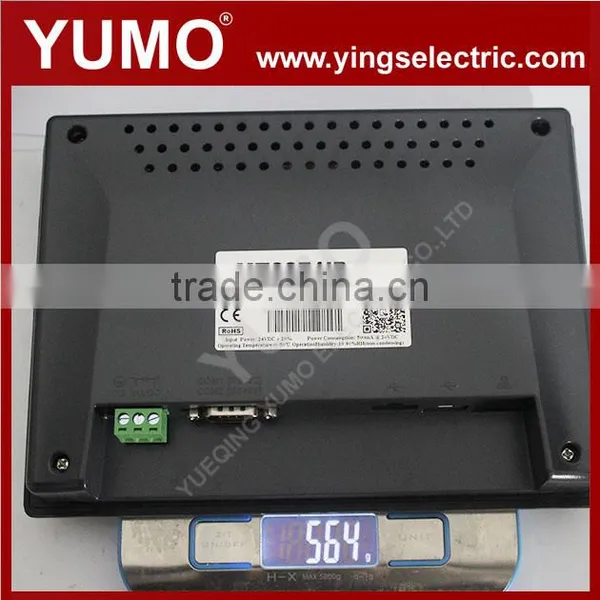

Weintek HMI MT Series LCD touch screen MT6071iP Human Machine Interface
| Display |
Display: 7" TFT LCD Resolution: 800X480 Brightness: 300 Contrast Ratio: 500:1 Backlight Type: LED Backlight Life Time: >30,000hrs. Colors: 16M LED Viewing Angle(T/B/L/R): 70/50/70/70 |
| Touch Panel |
Type: 4-wire Resistive Type Accuracy: Active Area Length(X)±2%,width(Y)±2% |
| Memory |
Flash: 128MB RAM:128MB |
| Processor | 32 bits RISC Cortex-A8 600MHz |
| I/O Ports |
USB Host: USB2.0X1 USB Client: USB 2.0X1(Micro USB) Ethernet: N/A COM Port: COM1:RS-232 COM2:RS-485 2W/4W |
| RTC | Built-in |
| Power |
Input Power: 24±20%VDC Power Isolation: Built-in Power Consumption: 500mA@24VDC Voltage Resistance: 500VAC(1 min.) Isolation Resistance: Exceed 50MΩ at 500VDC Vibration Endurance: 10 to 25Hz(X,Y,Z direction 2G 30 minutes) |
| Specification |
PCB Coating: N/A Enclosure: Plastic Dimensions WxHxD: 200.4X146.5X34mm Panel Cutout: 192X138mm Weight: Approx. 0.52 kg Mount: Panel mount |
| Environment |
Protection Structure: NEMA4/IP65 Compliant Front Panel Storage Temperature: -20°~60°C(-4°~140°F) Operating Temperature: 0°~50°C(32°~122°F) Relative Humidity: 10%~90%(non-condensing) |
| Software | EasyBuilder Pro |
