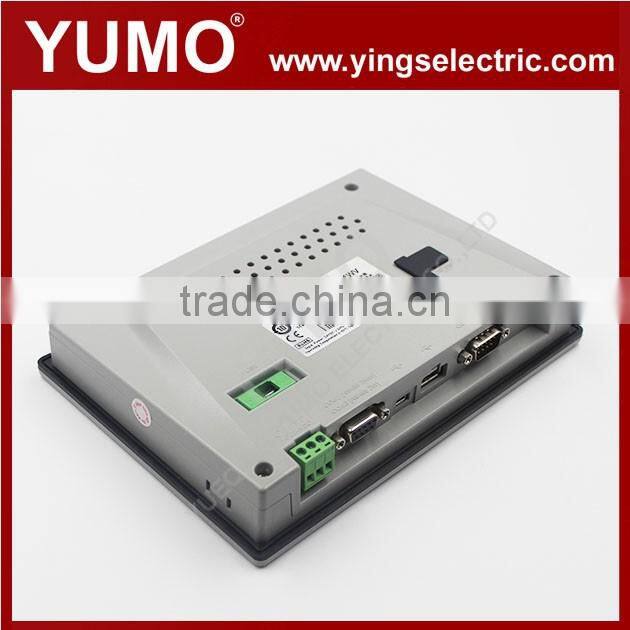

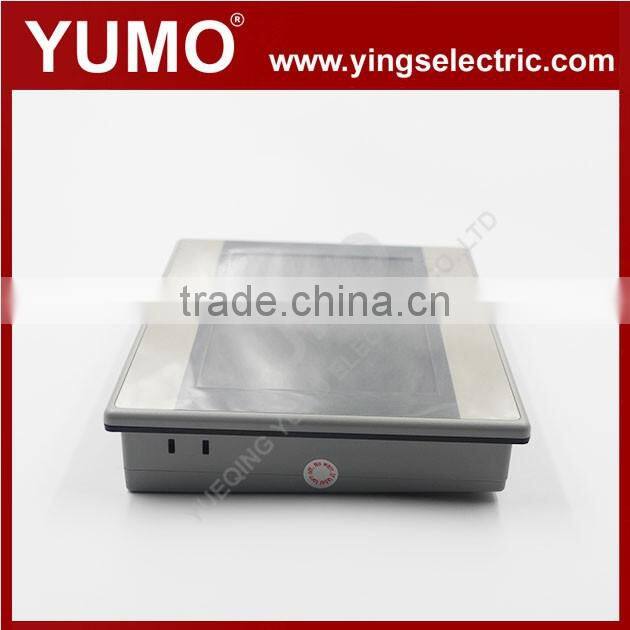

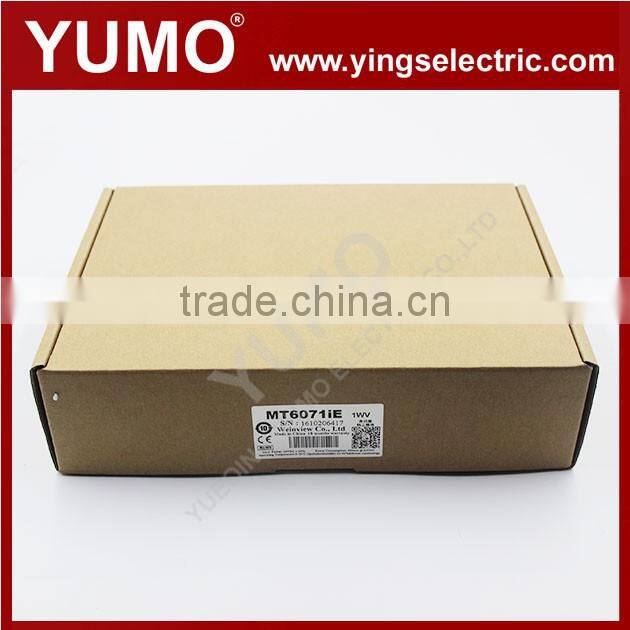

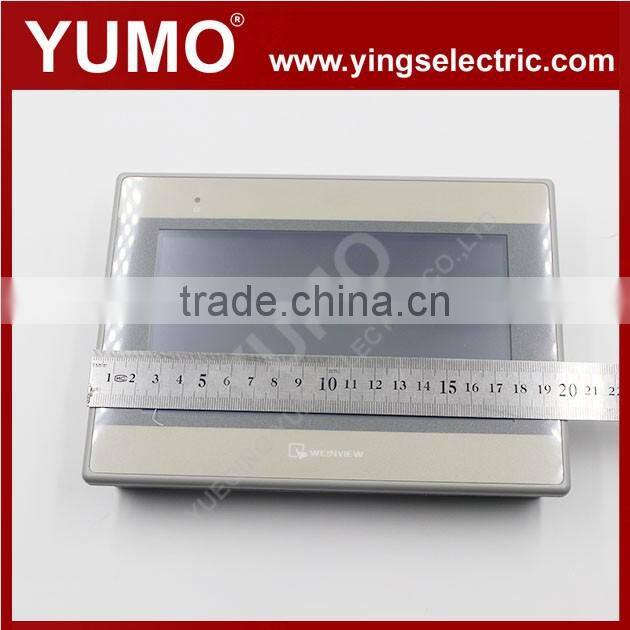

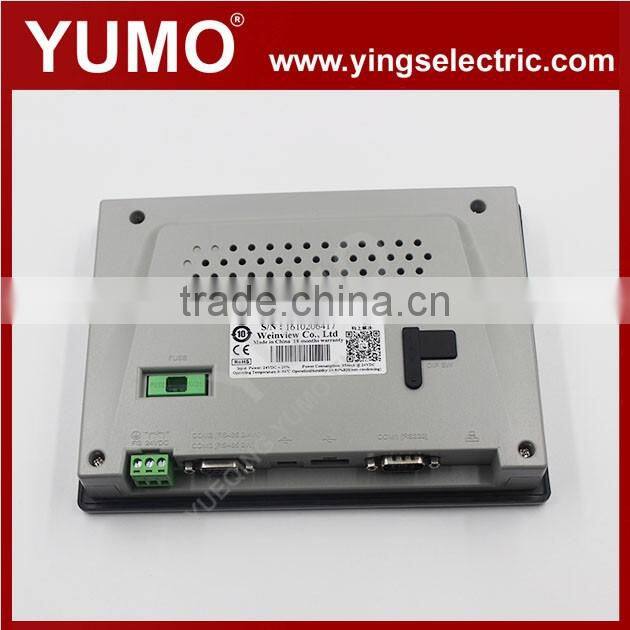

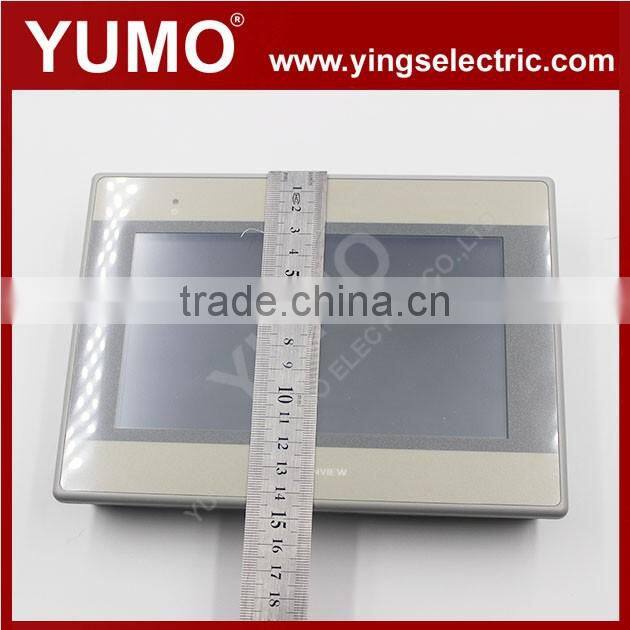

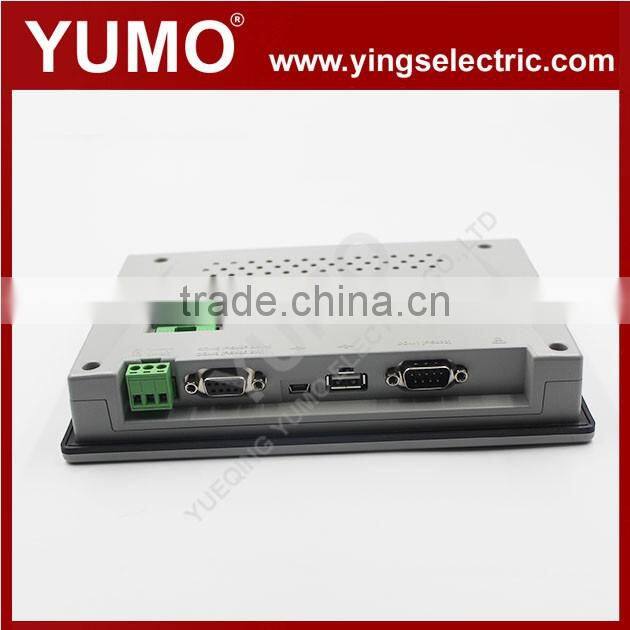

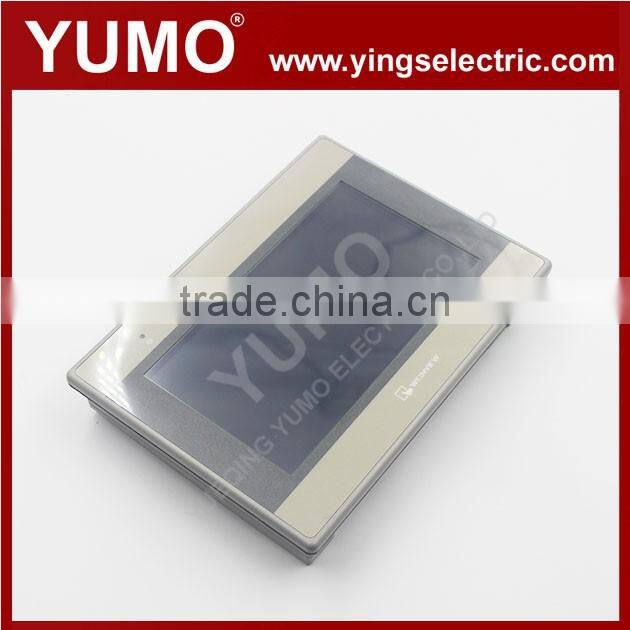

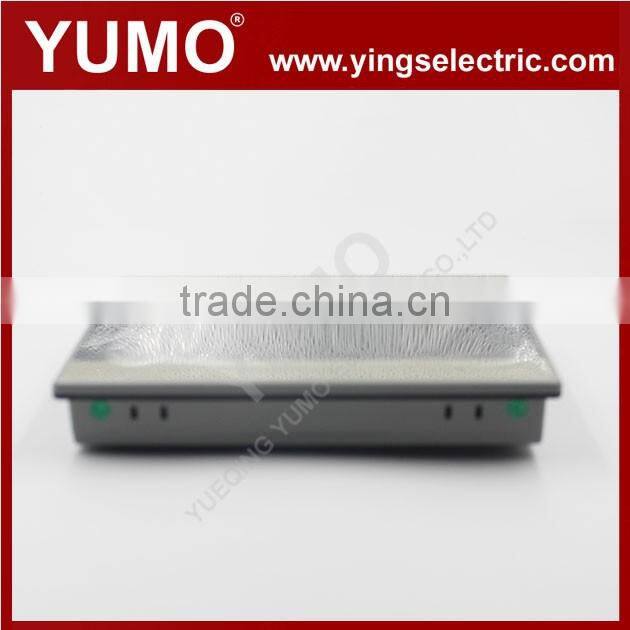

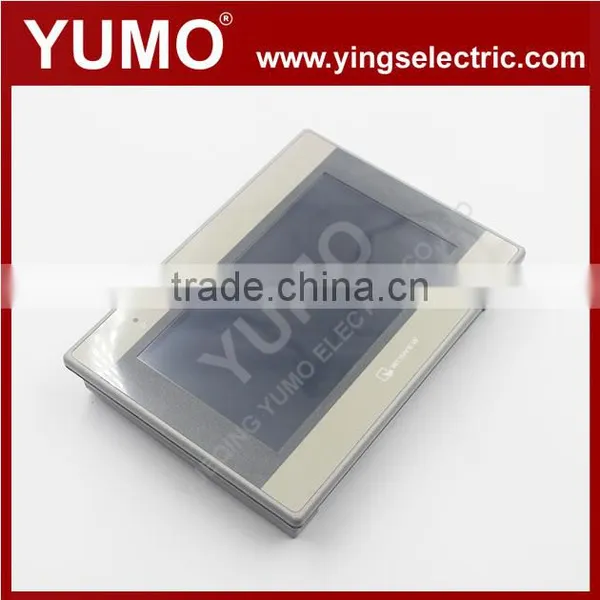

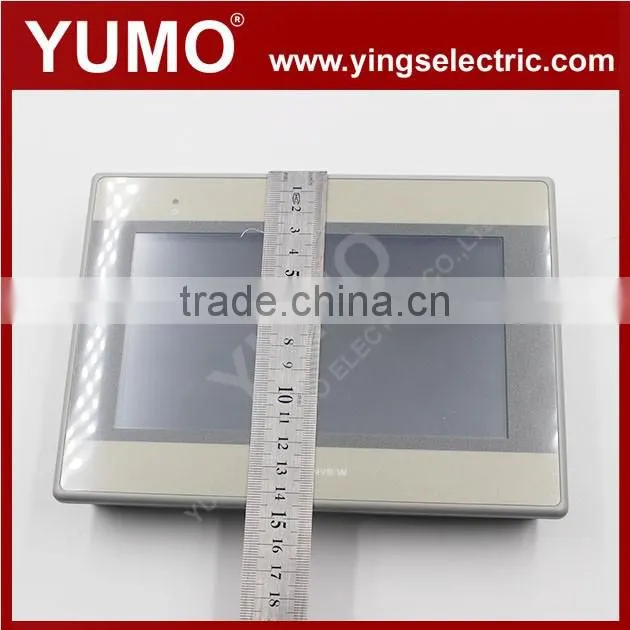

New and original Weintek MT6071IE HMI touch screen panel 7 inch MT6071IE
Display |
7" TFT Widescreen |
Resolution |
800x480 |
Brightness (cd/m²) |
300cd/m2 |
Contrast Ratio |
500:1 |
Back Light |
LED |
Life Time |
30,000 hr |
Touch Panel Type |
4 wires resistive type |
Storage(MB) |
128MB |
Storage RAM(MB) |
128MB |
Processor |
32 bit RISC CPU 600 MHz |
SD Card Slot |
Yes |
USB Host |
USB 2.0x 1 |
USB Client |
USB 2.0 x 1 |
Ethernet Port |
10/100 Base-T |
COM Port |
COM1 (RS232 / RS485 2W/4W),COM(RS232) |
Audio |
N/A |
RTC |
Yes |
Input Power |
24± 20% VDC |
Power Consumption |
350mA@24VDC |
Panel Cutout (mm) |
200x142mm |

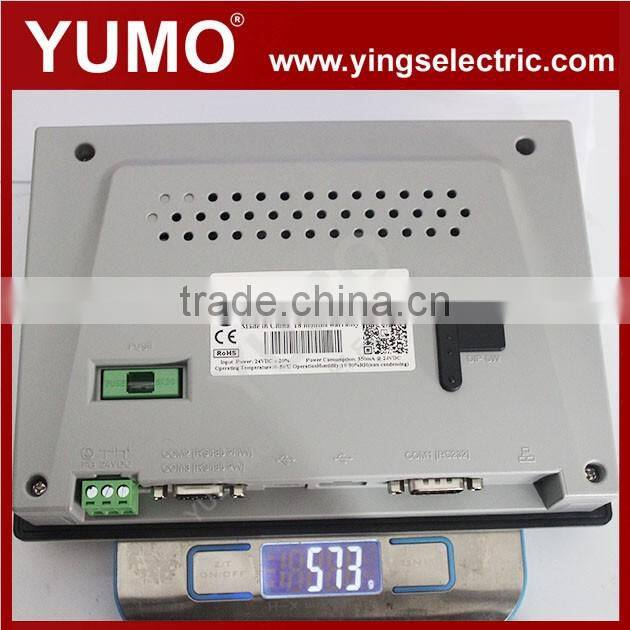

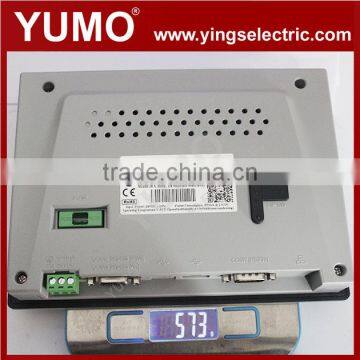

Weight(Kg) |
580g |
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
