Home > Electrical & Electronics > Electric Motor > AC Motor > IE3 Standard High Efficiency Cast Iron Three Phase Electric Motor T3C 160L 2

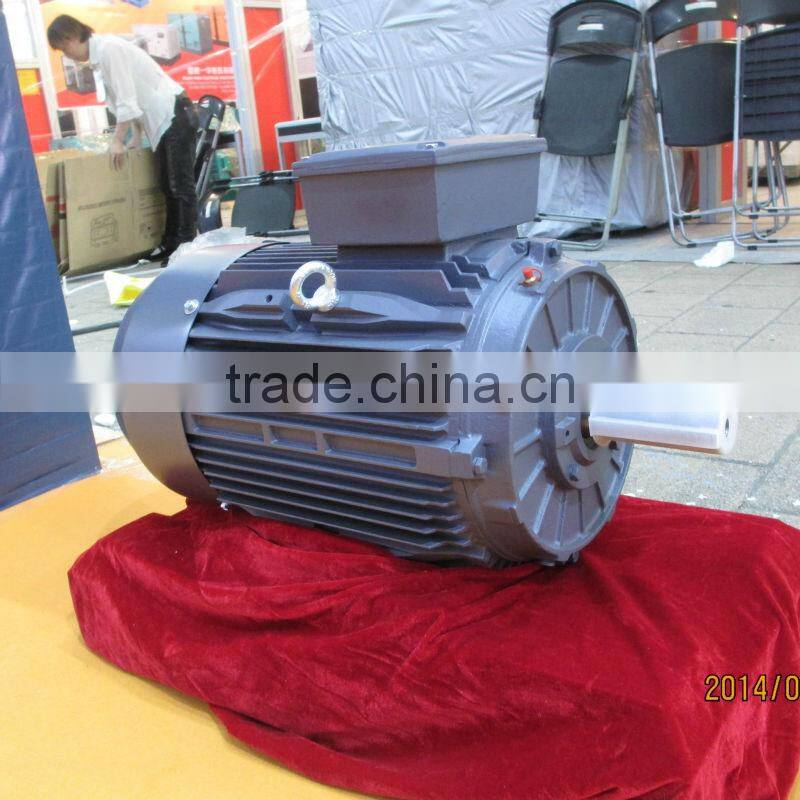

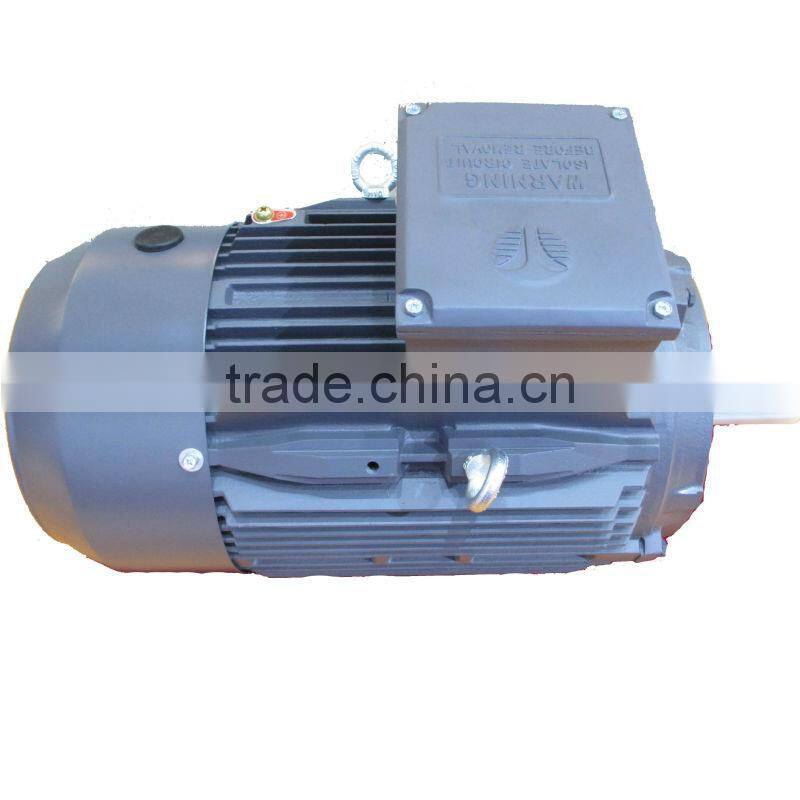

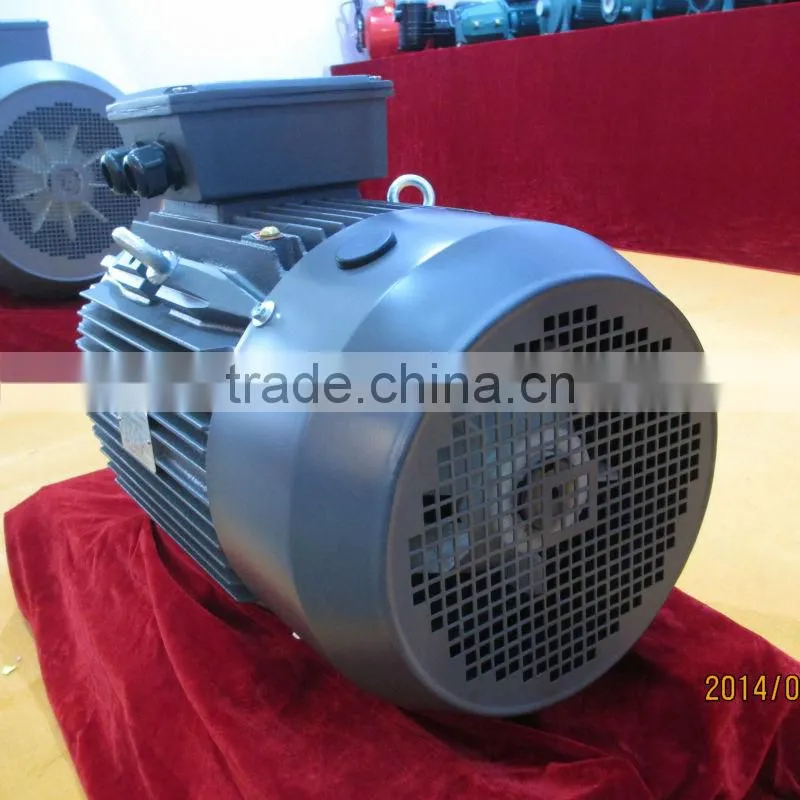

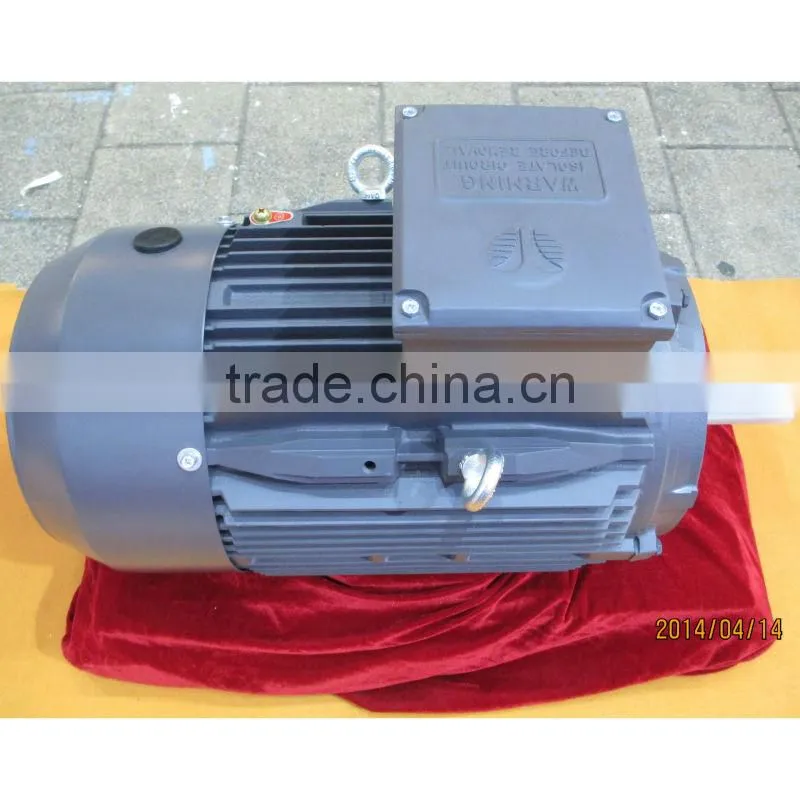

IE3 Standard High Efficiency Cast Iron Three Phase Electric Motor T3C 160L 2
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HALOTOP
Model Number:
T3C 160L 2
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
China Sea Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6 Pole IE2 Standard Synchronous Speed Cast Iron Three Phase Electric MotorNegotiableMOQ: 1 Set -
IE Standard Single Phase Capacitor Start and Capacitor Run Asynchronius Motors ML90L 4NegotiableMOQ: 1 Set
-
IE2 Standard Synchronous Speed High Efficiency Cast Iron Three Phase Electric MotorNegotiableMOQ: 1 Set
-
IE2 Standard Single-Phase Capacitor Start Asynchronous Motors Aluminum Housing MC801 2NegotiableMOQ: 1 Set
-
IE1 Standard Three Phase Asynchronius Motors Aluminum Housing MS561 2NegotiableMOQ: 1 Set
Brand Name
HALOTOP
Model Number
T3C 160L 2
Type
Asynchronous Motor
Frequency
50HZ
Output Power
18.5KW
Protect Feature
Totally Enclosed
Phase
Three-phase
Certification
CE, UL
AC Voltage
Other, 400V
Place of Origin
Shanghai, China
Efficiency
IE 3
Specifications
1. IE3 Standard Three Phase Electric Motor2.UL CE Certified Motor
3.Premium Efficiency Motor
4.Cast Iron Motor
Product Description
IE3 Standard High Efficiency Cast Iron Three Phase Electric Motor T3C 160L 2
IE3 Standard Motor / CE Certificate Motor / Three Phase Motor
| Features |
| 1.Energy saving, high efficiency |
| 2.High starting torqaue,lower starting current |
| 3.Versatile design(easy to modify for varieties of application |
| 4.Option of integrated or removable foot |
| 5.Option of aluminum housing up to frame size 200 |
| 6.Option of terminal box location(top, left or right) |
| Applications |
| 1.Pumps |
| 2.Waste water treatment plant |
| 3.Air compressors, fans |
| 4.Gear reducers and power transmission |
| 5.Pulp and paper mill |
| 6.Steel mill |
| 7.Conveyors, elevators |
| 8.Should be "Material handling equipments" |
| 9.Agricultural applications |
| 10.Mining equipment |
| 11.Hydraulic equipments |
| IEC Standard Efficiency Motors Technical Data | ||||||||||||
| Model | Power | Full Load Speed | lnl 400V | lfl 400V | lst/ln | Eff. 100% | Power Factor | Full load Torque | Tst/Tn | Tmin/Tn | Tmax/Tn | IEC |
| (KW) | (r/min) | (A) | (A) | (Times) | (%) | (Cosφ) | (N.M) | (Times) | (Times) | (Times) | ||
| T3C 160L1-2 | 18.5 | 2922 | 9.48 | 31.41 | 8 | 92.4 | 0.92 | 60.46 | 2.4 | 2.1 | 2.9 | 3 |
| T2C 280S-4 | 75 | 1480 | 40.19 | 126.56 | 7.5 | 94 | 0.91 | 483.92 | 2.2 | 1.9 | 2.6 | 2 |
