Home > Electrical & Electronics > Electric Motor > AC Motor > 6 Pole IE2 Standard Synchronous Speed Cast Iron Three Phase Electric Motor

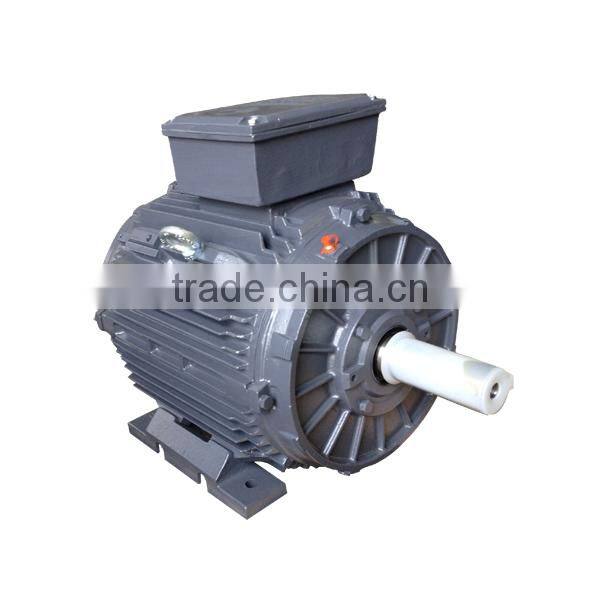

6 Pole IE2 Standard Synchronous Speed Cast Iron Three Phase Electric Motor

Name: 6 Pole IE2 Standard Synchronous Speed Cast Iron Three Phase Electric Motor
Brand: HALOTOP Motor
SKU: 141199484
Availability: InStock

Shanghai Halotop Import & Export Co., Ltd.

6 Pole IE2 Standard Synchronous Speed Cast Iron Three Phase Electric Motor thumbnail-1

6 Pole IE2 Standard Synchronous Speed Cast Iron Three Phase Electric Motor photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

HALOTOP Motor

Model Number:

6 Pole T2C Motor

Type:

Asynchronous Motor

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China Sea Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name HALOTOP Motor

Model Number 6 Pole T2C Motor

Type Asynchronous Motor

Frequency 50HZ Motor

Output Power 0.75-4KW Motor

Protect Feature Totally Enclosed

Phase Three-phase

Certification CE, UL

AC Voltage Other, 400V

Place of Origin Shanghai, China

Efficiency IE 2

Specifications

1. IE2 Standard Three Phase Electric Motor
2.UL CE Certified Motor
3.6 Pole Motor
4.Cast Iron Motor

6 Pole IE2 Standard Synchronous Speed Cast Iron Three Phase Electric Motor

Features

1.Energy saving, high efficiency

2.High starting torqaue,lower starting current

3.Versatile design(easy to modify for varieties of application

4.Option of integrated or removable foot

5.Option of aluminum housing up to frame size 200

6.Option of terminal box location(top, left or right)

Applications

1.Pumps

2.Waste water treatment plant

3.Air compressors, fans

4.Gear reducers and power transmission

5.Pulp and paper mill

6.Steel mill

7.Conveyors, elevators

8.Should be "Material handling equipments"

9.Agricultural applications

10.Mining equipment

11.Hydraulic equipments

6 Pole-1000 rpm Synchronous Speed 50Hz
Model	Power (KW)	Full Load Speed (r/min)	I_nl400V (A)	I_fl400V (A)	I_st/I_n(Times)	Eff. 100%FL (%)	Power Factor (Cosφ)	Full Load Torque (N.M)	T_st/T_n (Times)	T_min/T_n (Times)	T_max/T_n (Times)
90S-6	0.75	935	0.95	1.88	6.2	75.9	0.76	7.66	2.2	2	2.7
90L-6	1.1	935	1.18	2.54	6	78.1	0.8	11.23	2.3	2.1	2.6
100L-6	1.5	940	1.46	3.31	5.8	79.8	0.82	15.24	2.3	2.1	2.7
112M-6	2.2	940	2.25	4.85	6.4	81.8	0.8	22.35	2.3	2.1	2.9
132S-6	3	940	2.69	6.26	6.3	83.3	0.83	30.48	2.4	2.2	2.8
132M1-6	4	945	3.39	8.12	6.2	84.6	0.84	40.42	2.5	2	2.8
