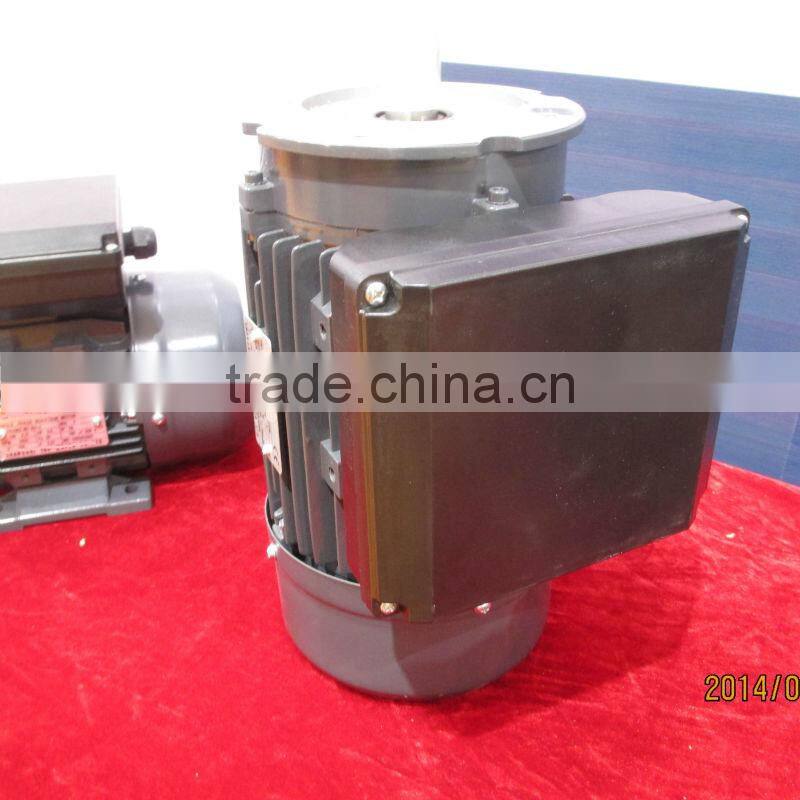

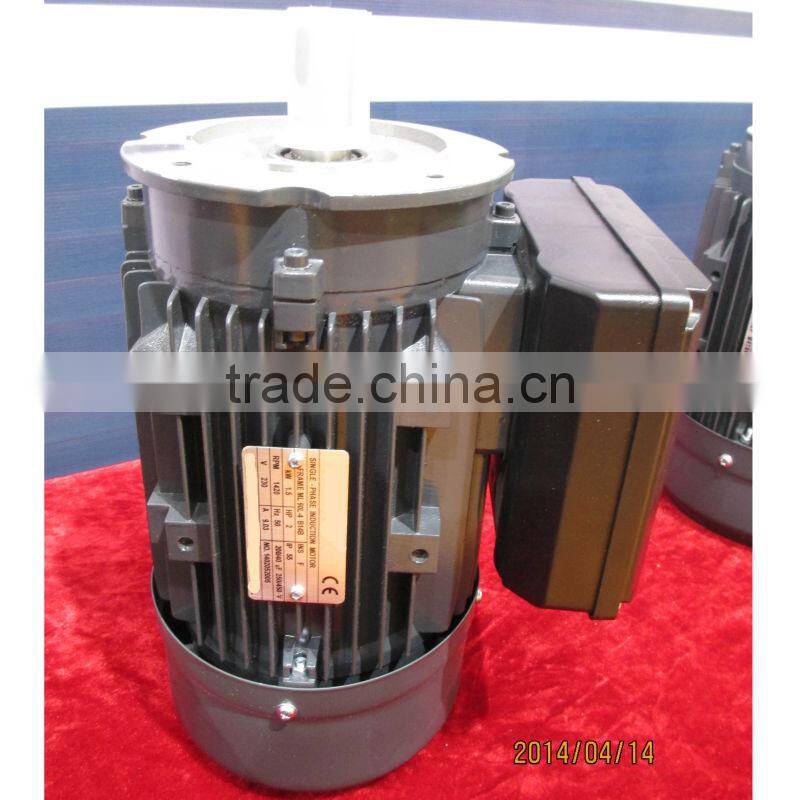

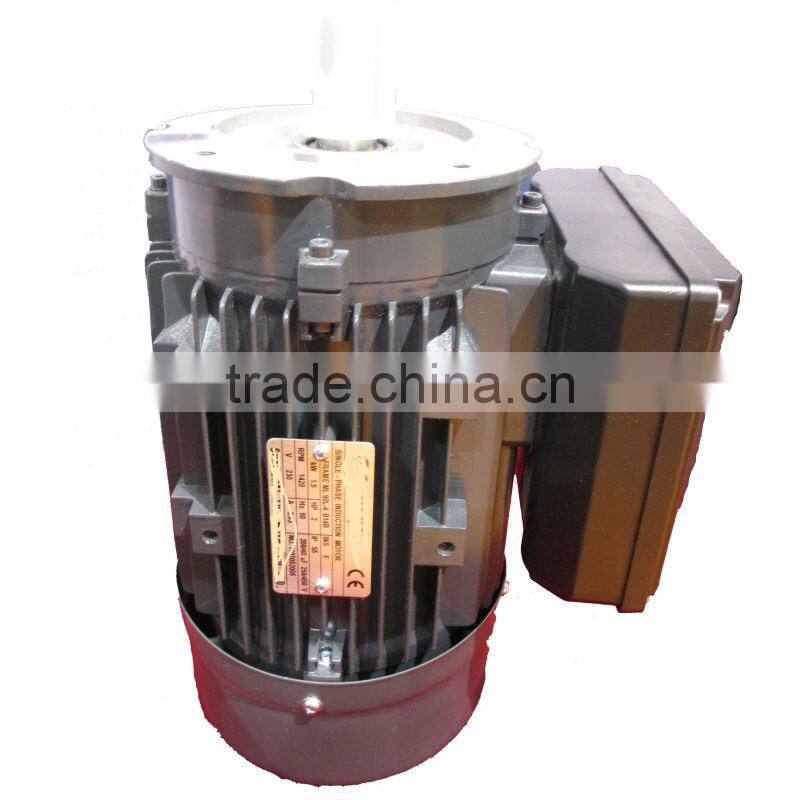

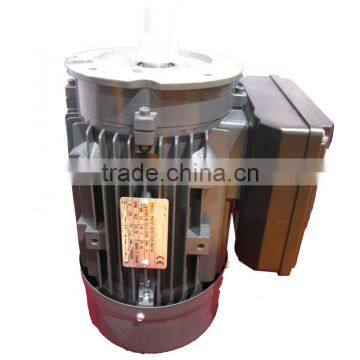

IE Standard Single Phase Capacitor Start and Capacitor Run Asynchronius Motors ML90L 4
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HALOTOP
Model Number:
ML90L-4
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
China Sea Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IE2 Standard Synchronous Speed High Efficiency Cast Iron Three Phase Electric MotorNegotiableMOQ: 1 Set -
IE2 Standard Single-Phase Capacitor Start Asynchronous Motors Aluminum Housing MC801 2NegotiableMOQ: 1 Set
-
IE1 Standard Three Phase Asynchronius Motors Aluminum Housing MS561 2NegotiableMOQ: 1 Set
-
IE2 UL Approved Synchronous 30KW 90KW Cast Iron Three Phase Electric MotorNegotiableMOQ: 1 Set
-
IE2 Standard Three Phase Asynchronous Motors Aluminum Housing At 400V 50HZ MS2 100L 6NegotiableMOQ: 1 Set
Brand Name
HALOTOP
Model Number
ML90L-4
Type
Asynchronous Motor
Frequency
50HZ
Output Power
1.5KW
Protect Feature
Totally Enclosed
Phase
Single-phase
Certification
CE, UL
AC Voltage
Other, 230V
Place of Origin
Shanghai, China
Efficiency
IE 2
Specifications
IE Standard Single Phase Capacitor Start and Capacitor Run Asynchronius Motors ML90L 41.UL CE Certified Motor
Product Description
IE Standard Single Phase Capacitor Start and Capacitor Run Asynchronius Motors ML90L-4
IE Standard Motor / CE Certificate Motor / Dual capacitor asynchronous motor
| ML Series Single-Phase Motor | |||||||||||||
| Model | Power | Current | Speed | Eff. | Power Factor | Rate Torque | Tst/Tn | Tmax/Tn | Starting Current | Run Capacitor | Start Capacitor | Noise | W.T |
| (KW) | (A) | (r/min) | (%) | (Cosφ) | (N.M) | (Times) | (Times) | (A) | μF/V | μF/V | dB(A) | (Kg) | |
| ML90L-4 | 1.5 | 9.61 | 1400 | 73 | 0.93 | 10.24 | 2.5 | 1.8 | 55 | 40μF/450V | 200μF/ 300V | 79 | 16.7 |
