Manufacturer rtu sms alarm control gsm sms controller kit

Netual packing

Specifications

gsm sms controller kit
6 digital inputs
6 relay outputs
2 analog input
internal battery(option)

Manufacturer  rtu sms alarm sms controlle water leak alarm Support Android Apps

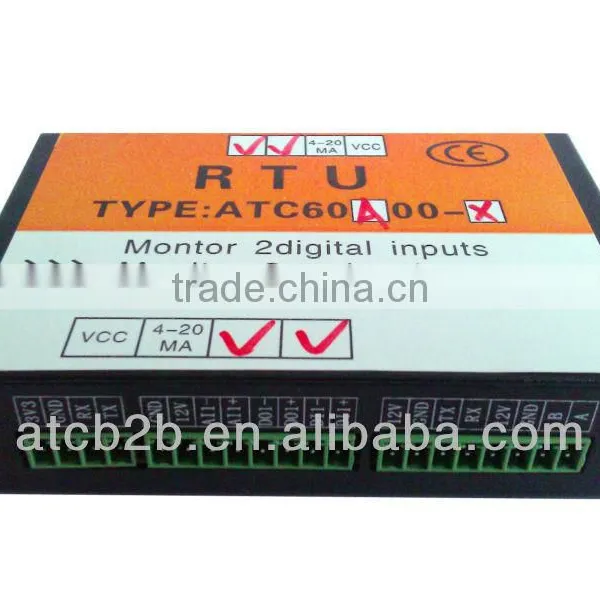

The Q26_RTU GSM/GPRS/EDGE Remote Monitoring& Remote Control System is a complete Remote Telemetry unit. It contains a GSM/GPRS/EDGE Modem and control circuitry. It is capable of controlling up to  Relay outputs and monitor  Digital inputs and  Analogue inputs.(Analogue input support: Detect Water leaks. Monitoring Temperatures for out-of-range conditions, Monitor Humidity for Damaging High Humidity Levels and monitor fuel levels).



The Q26_RTU GSM/GPRS/EDGE Remote Monitor &Remote Control System is operated by the sending of SMS and GPRS/EDGE. The GSM/GPRS/EDGE controller
can be used as a remote telemetry system; users can directly control the output relays from a simple text message or GPRS. The controller can also be used as a

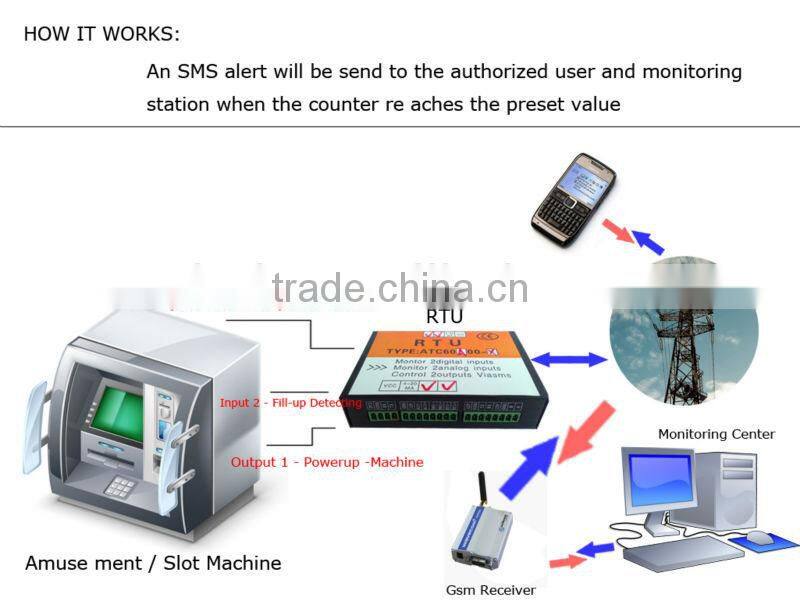

remote monitoring system; the unit can automatically notify the user whenever the any inputs change state and inputs counter.
The Q26_RTU is complete with extend function include DI/DO/AI by UART2, support back up battery and built-in Quad-Band Modem -900/1800/850/1900.





Features



1	Monitors up to Digital inputs& Analogue inputs
2	Remote control outputs for switching applications
3	Fast and easy installation
4	Low set up and running costs
5	No field programming required as it can be done by SMS
6	Able to work in GMS mode/GPRS mode/EDGE mode
7	Works with 4 - 20mA(default)/1-5V based transducer
8	Accept other kind of transducer - temperature /motion transducer etc.
9	Reports on set point alarms and other triggers
10	Up to 10 alarm time set point
11	Support for get GPS location
12	Programmable low/high alarm points for each analogue input





Shopping Guide:

Warranty :One year

After -sell service : technician support

Packing :white paper box

Standard package : power supplier x 1 ,RS232 cable x1 .GSM antenna x1 .connecting port x1

Option :GPS antenna Internal .Gps Module .Internal battery . Temperature sensor .humidity sensor .smoke sensor .Led Screen ,gas sensor (payment another)

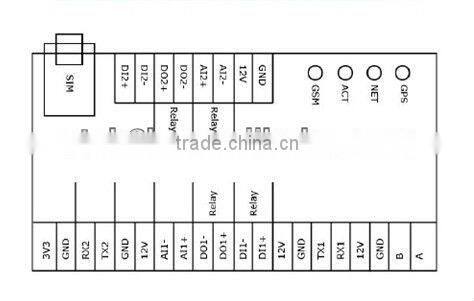

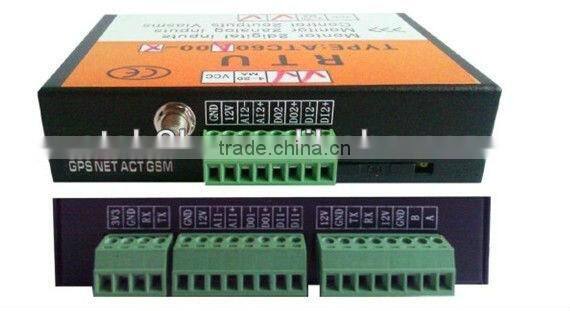

Interface







Power:  12V (12V-35V)



       Correspond Relay Specification



Communicate:   485/232 (Factory Default: 232)



              485:       (A   B)



              232:       (RX1       TX1        GND)



Digital Input:



              DI1:        (DI1+     DI1-)



              DI2:        (DI2+     DI2-)



Digital Output:



              DO1:      (DO1+    DO1-)



              DO2:      (DO2+    DO2-)



Analog Input:     Transmitter (temperature /water level / humidity/ pressure)



              Type:     Current (4-20mA)



              AI1:        (AI1+      AI1-)



              AI2:        (AI2+      AI2-)



Indicator Light:



              GSM:     Device Register State



              ACT:      Reserve for customized



              NET:      Reserve for customized



              GPS:      Reserve for customized



SIM Card:     3V/1V8







Access Equipment:   Serial Port Equipment (Camera /PLC….)



              Reserve for customized





Configuration software:











  Application



1) SMS/MMS/Voice solutions Remote data transmit
2) POS Machine Recharging system
3) Vending machine Power/Oil/Gas system
4) Remote LED system Environmental detection
5) IPC system Remote meter reading

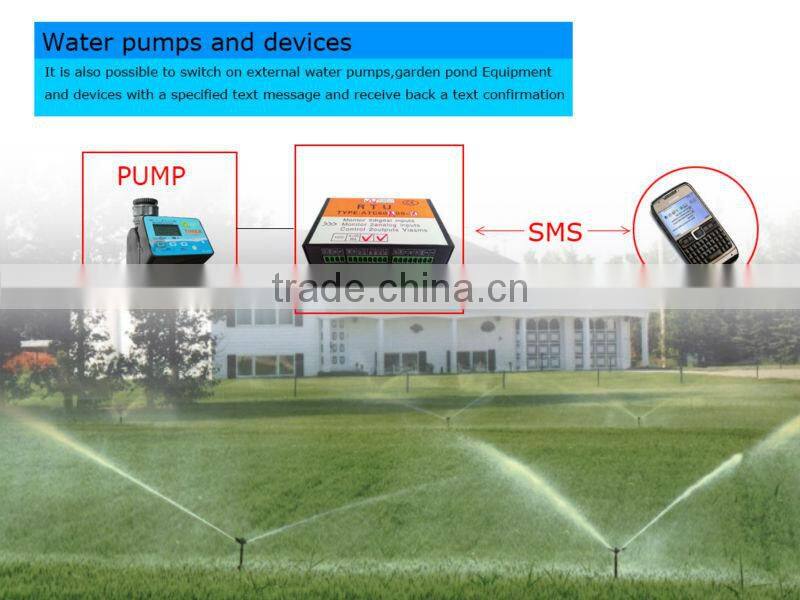

6) Remote controlling system
7) Singlechip remote data communication system

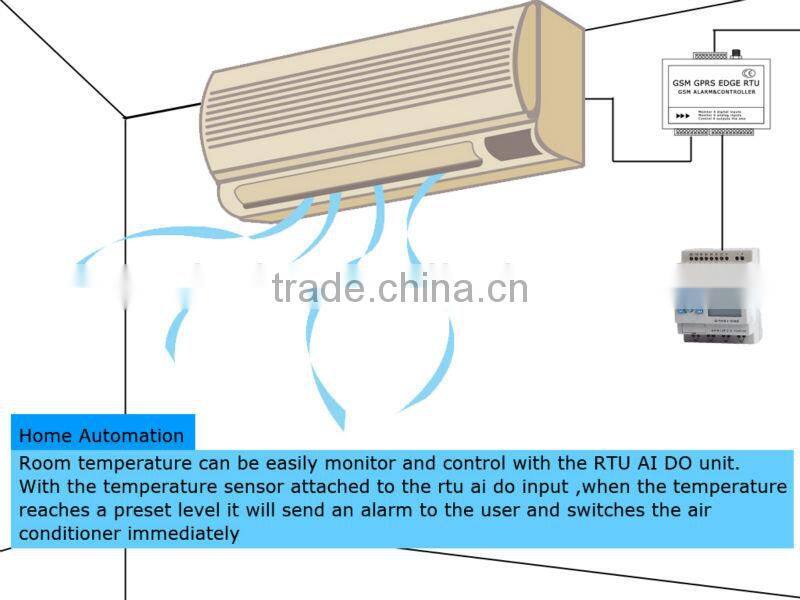

8)temperature sensor
9)Environmental monitoring

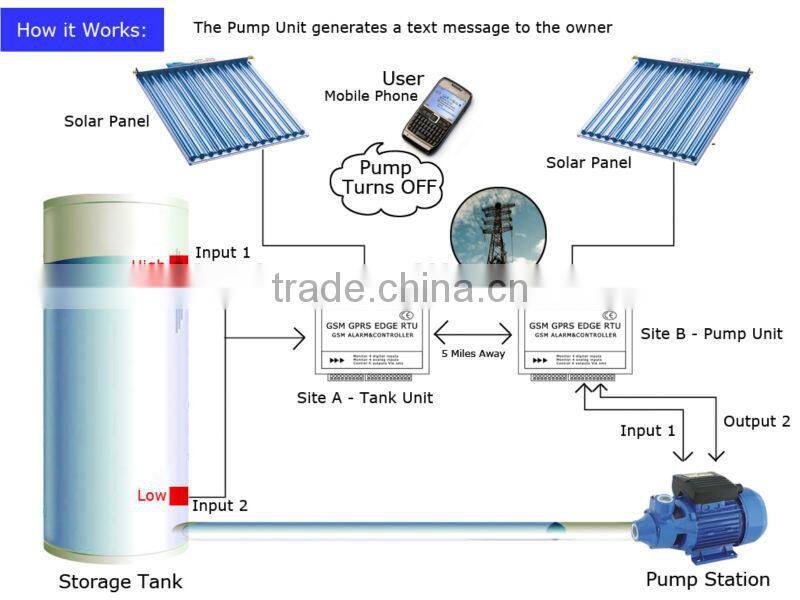

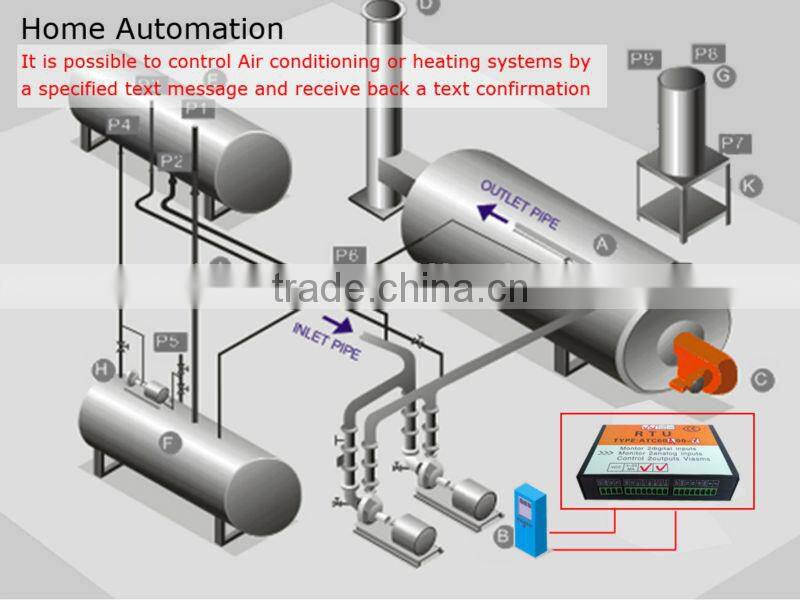

10)industrial water pressure monitoring
11)pressure monitoring
