Q26 RTU sms gsm controller tank level
The Q26_RTU GSM/GPRS/EDGE Remote Monitoring& Remote Control System is a complete Remote Telemetry unit. It contains a GSM/GPRS/EDGE Modem and control circuitry. It is capable of controlling up to 2 Relay outputs and monitor 2 Digital inputs and 2 Analogue inputs.(Analogue input support: Detect Water leaks. Monitoring Temperatures for out-of-range conditions, Monitor Humidity for Damaging High Humidity Levels and monitor fuel levels).
The Q26_RTU GSM/GPRS/EDGE Remote Monitor &Remote Control System is operated by the sending of SMS and GPRS/EDGE. The GSM/GPRS/EDGE controller
can be used as a remote telemetry system; users can directly control the output relays from a simple text message or GPRS. The controller can also be used as a
remote monitoring system; the unit can automatically notify the user whenever the any inputs change state and inputs counter.

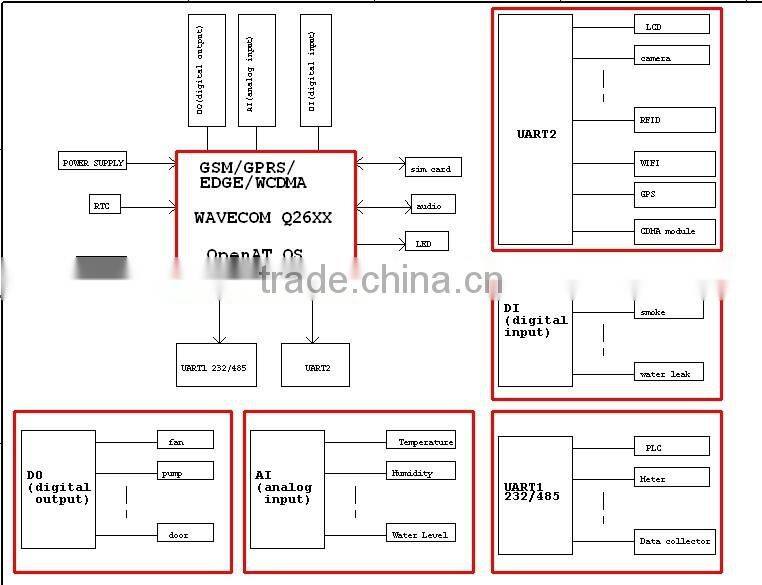

The Q26_RTU is complete with extend function include DI/DO/AI by UART2, support back up battery and built-in Quad-Band Modem -900/1800/850/1900.
Features
1 | Monitors up to 2 Digital inputs&2 Analogue inputs |
2 | 2 Remote control outputs for switching applications |
3 | Fast and easy installation |
4 | Low set up and running costs |
5 | No field programming required as it can be done by SMS |
6 | Able to work in GMS mode/GPRS mode/EDGE mode |
7 | Works with 4 - 20mA(default)/1-5V based transducer |
8 | Accept other kind of transducer - temperature /motion transducer etc. |
9 | Reports on set point alarms and other triggers |
10 | Up to 10 alarm time set point |
11 | Support for get GPS location |
12 | Programmable low/high alarm points for each analogue input |
Pictures show
Interface
Power: 12V (12V-35V)
Correspond Relay Specification
Communicate: 485/232 (Factory Default: 232)
485: (A B)
232: (RX1 TX1 GND)
Digital Input:
DI1: (DI1+ DI1-)
DI2: (DI2+ DI2-)
Digital Output:
DO1: (DO1+ DO1-)
DO2: (DO2+ DO2-)
Analog Input: Transmitter (temperature /water level / humidity/ pressure)
Type: Current (4-20mA)
AI1: (AI1+ AI1-)
AI2: (AI2+ AI2-)
Indicator Light:
GSM: Device Register State
ACT: Reserve for customized
NET: Reserve for customized
GPS: Reserve for customized
SIM Card: 3V/1V8
Access Equipment: Serial Port Equipment (Camera /PLC….)
Reserve for customized
Configuration software:
Application
1) SMS/MMS/Voice solutions Remote data transmit
2) POS Machine Recharging system
3) Vending machine Power/Oil/Gas system
4) Remote LED system Environmental detection
5) IPC system Remote meter reading
6) Remote controlling system
7) Singlechip remote data communication system
8)temperature sensor
9)Environmental monitoring
10)industrial water pressure monitoring
11)pressure monitoring
