Specifications
RTU Control PanelsGSM remote switch
alarm and count via SMS
Control 2 outputs via sms
Remote gas pneumatic alarm detector Controller GPRS RTU
1,Specifications
DC Power supply 12-24V DC(Standard adapter:DC 12V/2A)
Power consumption 12V input Max.150mA/Average 45mA
Frequency range Quad-frequency 900/1800/850/1900MHz
SIM Card Supporting 3V SIM Card
Antenna 50 SMA Antenna interface
Communication interface RS-232C
Woring temperature -30~+75
Working humidity Relative humidity 95%
Input 4 relay inputs(12V/1A)
Output 2 relay Outputs(2A/220Vac)
Exterior dimension 110x90x25mm
Weight 220G
2, functions of the software
2.1 remote configuration super user phone number
2.2 query, configuration, clear five master(host) telephone number
2.3 remote calibration equipment time by sms
2.4 message inquiry, configuration, remove the four input count by sms
2.5 four input opening or closing the alarm report to three master telephone number
2.6 SMS remote query, modify, four input alarm content
2.7 set timing reported four input state and count
2.8 set up two way relay open and shut. With time delay inverse
2.9 set up two way relay a certain time point open and shut
3.Applications
- Remote montoring of functions and instrumentation for:
- Oil and gas (offshore platforms, onshore oil wells).
- Networks of pump stations (wastewater collection, or for water supply).
- Environmental monitoring systems (pollution, air quality, emissions monitoring).
- Mine sites.
- Air traffic equipment such as navigation aids (DVOR, DME, ILS and GP)
- Remote monitoring and control of functions and instrumentation for:
- Hydro-graphic (water supply, reservoirs, sewerage systems).
- Electrical power transmission networks and associated equipment.
- Natural gas networks and associated equipment.
- Outdoor warning sirens.

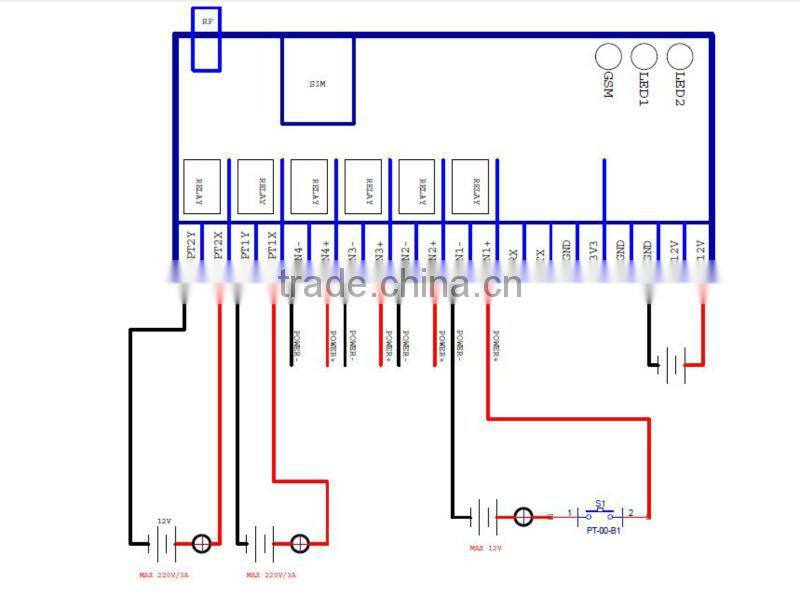

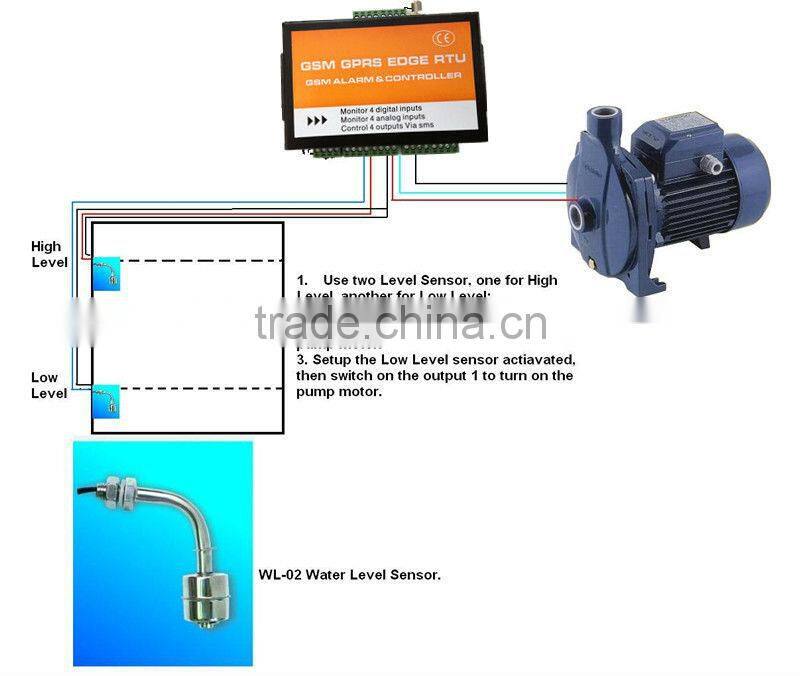

4.Product Pictures
