Gsm Sms Q26 Rtu

Shenzhen Antecheng Technology Co., Ltd. Gold Verified Supplier
5Yrs
Gsm Sms Q26 Rtu thumbnail-1
Gsm Sms Q26 Rtu photo-1
US$ 60 - 90 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AT
Model Number:
ATC600A00-G
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name AT
Model Number ATC600A00-G

Specifications

1:Alarm and Conroller Telemetry RTU
2:GSM alarm and controller
3:Monitor 4 digital inputs
4:smoke detector alarm RTU



gsm sms q26 rtu













The Q26_RTU GSM/GPRS/EDGE Remote Monitoring& Remote Control System is a complete Remote Telemetry unit. It contains a GSM/GPRS/EDGE Modem and control circuitry. It is capable of controlling up to 2 Relay outputs and monitor 2 Digital inputs and 2 Analogue inputs.(Analogue input support: Detect Water leaks. Monitoring Temperatures for out-of-range conditions, Monitor Humidity for Damaging High Humidity Levels and monitor fuel levels).





The Q26_RTU GSM/GPRS/EDGE Remote Monitor &Remote Control System is operated by the sending of SMS and GPRS/EDGE. The GSM/GPRS/EDGE controller
can be used as a remote telemetry system; users can directly control the output relays from a simple text message or GPRS. The controller can also be used as a
remote monitoring system; the unit can automatically notify the user whenever the any inputs change state and inputs counter.
The Q26_RTU is complete with extend function include DI/DO/AI by UART2, support back up battery and built-in Quad-Band Modem -900/1800/850/1900.







Features







1

Monitors up to 2 Digital inputs&2 Analogue inputs

2

2 Remote control outputs for switching applications

3

Fast and easy installation

4

Low set up and running costs

5

No field programming required as it can be done by SMS

6

Able to work in GMS mode/GPRS mode/EDGE mode

7

Works with 4 - 20mA(default)/1-5V based transducer

8

Accept other kind of transducer - temperature /motion transducer etc.

9

Reports on set point alarms and other triggers

10

Up to 10 alarm time set point

11

Support for get GPS location

12

Programmable low/high alarm points for each analogue input

























Specifications




1

Parameter item Reference scope

2

DC Power supply 9-28V DC (Standard adapter: DC 12V/1.5A)

3

Power consumption 12V input Max. 150mA/Average 50mA

4

Frequency range Dual-frequency 900/1800/850/1900

5

SIM Card Supporting 3V SIM Card

6

Antenna 50 Ω SMA Antenna interface

7

Serial RS232/rs485

8

Temperature range -30° C ~ +80 ° C

9

Humidity range Relative humidity 95%

10

Digital Input 2 digital inputs(Dry contact)

11

Output 2 drivable relay outputs(open-collector outputs)

12

Output drive voltage Equal to input DC voltage

13

Output drive power Drive voltage ≤ 35V, drive current ≤ 500mA

14

Analog Input 2 analog inputs(4~20mA or 0~5V)

15

Audio interface 3.5mm audio in and audio out

16

Weight 400 g





Highlights!



OEM/ODM

Acceptable

Accessories

Power supply, RS232, cable, GSM antenna, commecting port

Option

GPS antenna, internal GPS module, internal battery

Standard packing

Paper box

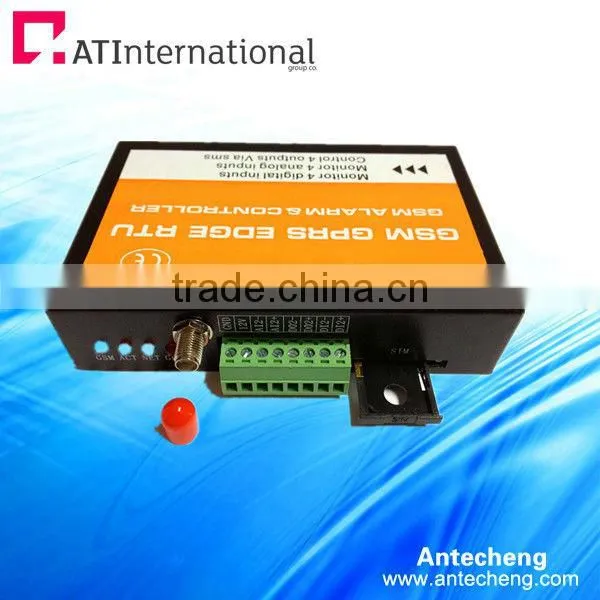

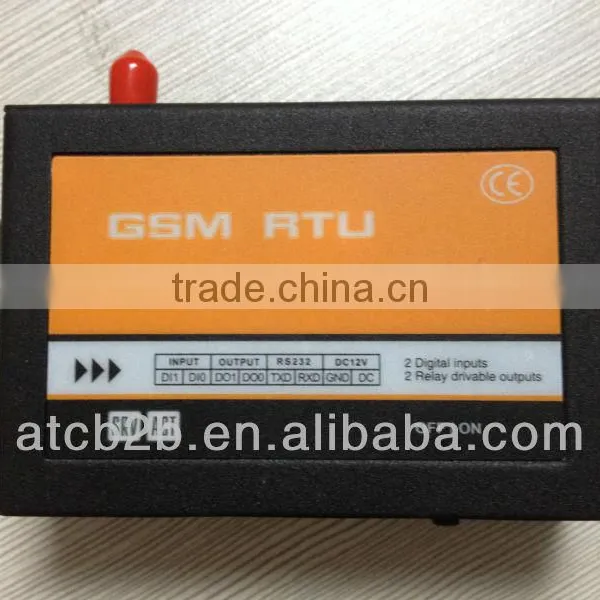

Pictures show











Interface











Power:  12V (12V-35V)



       Correspond Relay Specification



Communicate:   485/232 (Factory Default: 232)



              485:       (A   B)



              232:       (RX1       TX1        GND)



Digital Input:



              DI1:        (DI1+     DI1-)



              DI2:        (DI2+     DI2-)



Digital Output:



              DO1:      (DO1+    DO1-)



              DO2:      (DO2+    DO2-)



Analog Input:     Transmitter (temperature /water level / humidity/ pressure)



              Type:     Current (4-20mA)



              AI1:        (AI1+      AI1-)



              AI2:        (AI2+      AI2-)



Indicator Light:



              GSM:     Device Register State



              ACT:      Reserve for customized



              NET:      Reserve for customized



              GPS:      Reserve for customized



SIM Card:     3V/1V8







Access Equipment:   Serial Port Equipment (Camera /PLC….)



              Reserve for customized
