Industrial ATC-RTU-60A14 M2m Gsm Access Control

The Q26_RTU GSM/GPRS/EDGE Remote Monitoring& Remote Control System is a complete Remote Telemetry unit. It contains a GSM/GPRS/EDGE Modem and
control circuitry. It is capable of controlling up to 2 Relay outputs and monitor 2 Digital inputs and 2 Analogue inputs.(Analogue input support: Detect Water leaks,
Monitoring Temperatures for out-of-range conditions, Monitor Humidity for Damaging High Humidity Levels and monitor fuel levels).

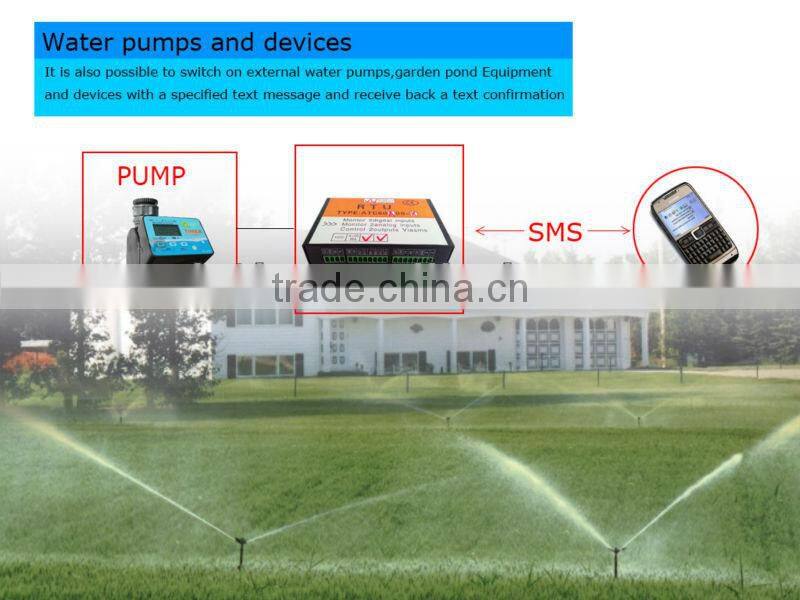

The Q26_RTU GSM/GPRS/EDGE Remote Monitor &Remote Control System is operated by the sending of SMS and GPRS/EDGE. The GSM/GPRS/EDGE controller
can be used as a remote telemetry system; users can directly control the output relays from a simple text message or GPRS. The controller can also be used as a
remote monitoring system; the unit can automatically notify the user whenever the any inputs change state and inputs counter.
The Q26_RTU is complete with extend function include DI/DO/AI by UART2, support back up battery and built-in Quad-Band Modem -900/1800/850/1900.

Features

Characteristic

·Configurable for alarm and recover sms
·Automatically report the status of itself on schedule
·Support remote setting via sms commands
·Preset 10 phone numbers (can be distributed authority)
·Remote add/edit/delete phone group
·Automatically update internal clock via sms
·Time stamped in alarm or recover messages
·Support ring call when alarm
·Audio in and audio out can connect speak and mic
·Temperature sensor (optional)
·Internal battery and providing power cut off alarm
·Easy used configure software
·Adopted highly integrated industrial CPU

 6 Digital Inputs

·NO or NC type can be preset

·Configurable for alarm and recover sms
·Configurable for alarm ensure time
·Configurable for alarm delay time
·Configurable for service number’s authority of receive inputs alarm
·Remote query inputs status

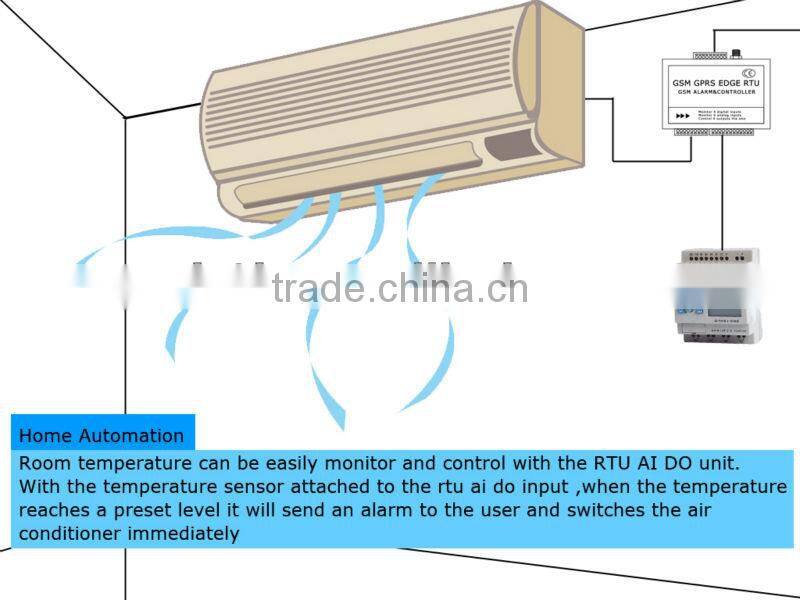

6 Analogue Inputs

·Preset high and low level
·Every AD input current values can be query via sms
·Configurable the alarm and recover message
·Configurable for alarm ensure time
·Configurable for alarm delay time
·Configurable for offset and gain
·Configurable for lag
Specifications

6 Digital Outputs

·Multiple output type can be preset
·Remote On/Off/Pulse outputs
·Configurable for pulse time
·Remote query outputs status
·Outputs can be activated by alarm or call
·Outputs can be activated on schedule

GSM Modem

Integral to the design of Q26_RTU is a GSM/GPRS/EDGE 900/1800/850/1900 industrial grade modem. Its capabilities and

performance are highly optimized by the operating firmware.

Any change in the GSM signal and receiving conditions are detected quickly and the software automatically takes care of signal errors.

GPS Location Information

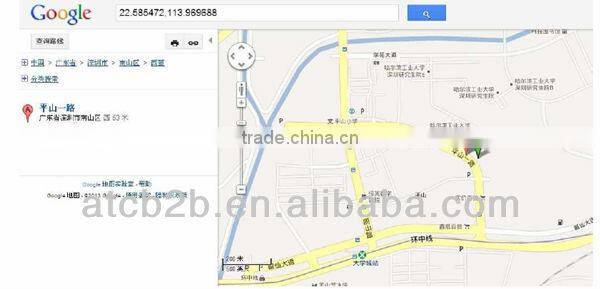

Q26_RTU provide GPS location information .User can get GPS location information by sending a SMS.
And the user can open the response in the smart phone with Google map and show your location.

Specifications
Parameter item Reference scope
DC Power supply 9-28V DC (Standard adapter: DC 12V/1.5A)
Power consumption 12V input Max. 150mA/Average 50mA
Frequency range Dual-frequency 900/1800 or 900/1800/850/1900
SIM Card Supporting 3V SIM Card
Antenna 50 Ω SMAAntenna interface
Serial RS232/rs485
Temperature range -30° C ~ +85 ° C
Humidity range Relative humidity 95%
Digital Input 2 digital inputs(Dry contact)
Output 2 drivable relay outputs(open-collector outputs)
Output drive voltage Equal to input DC voltage
Output drive power Drive voltage ≤ 35V, drive current ≤ 500mA
Analog Input 2 analog inputs(4~20mA or 0~5V)
Audio interface 3.5mm audio in and audio out
Exterior dimension 130× 80× 25mm
Weight 370 g

PICTURE SHOW:

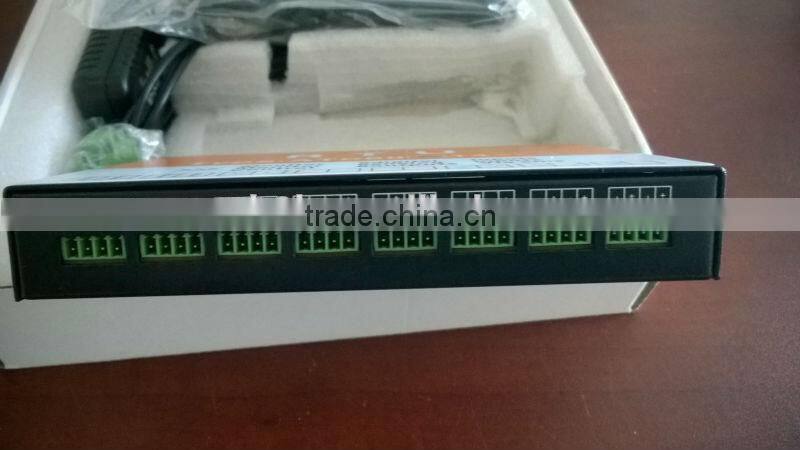

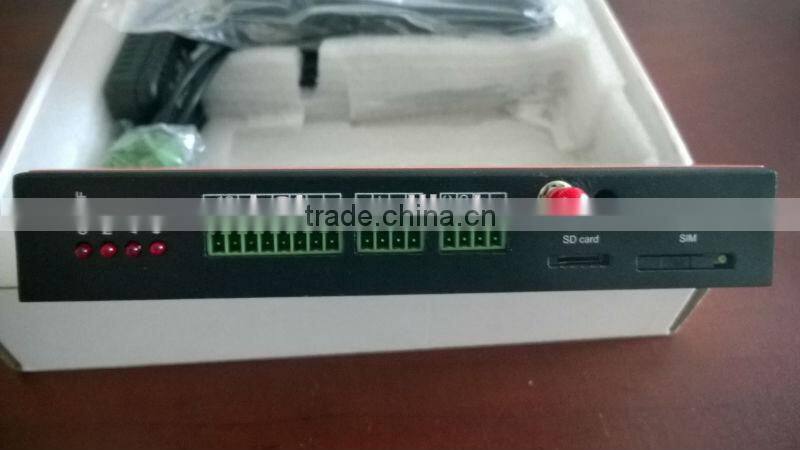

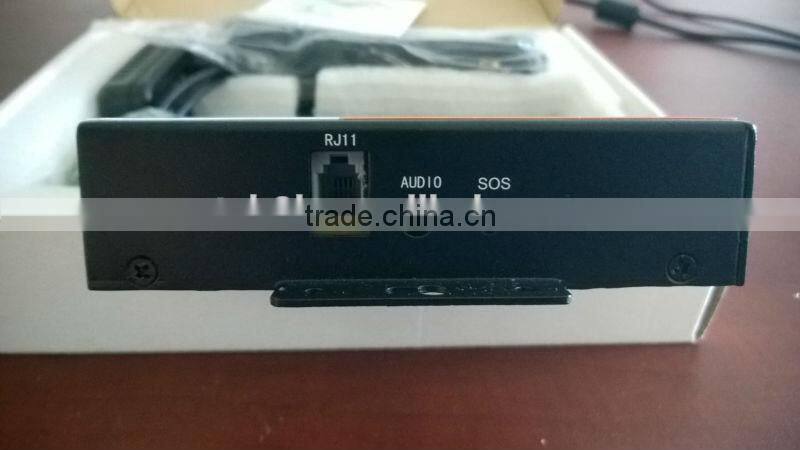

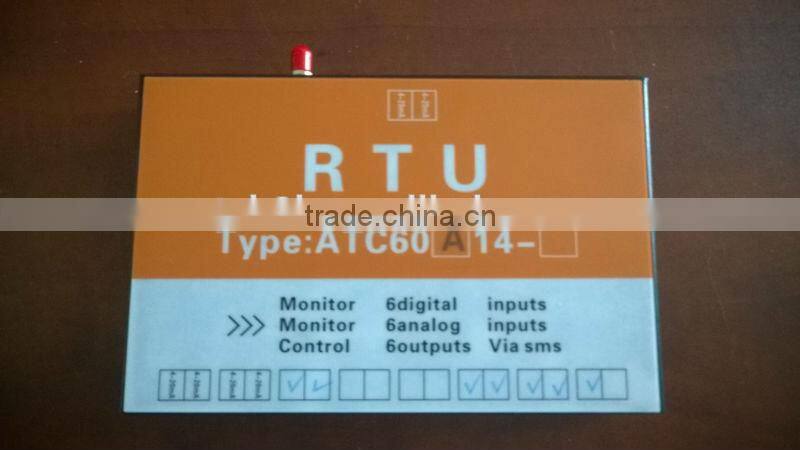

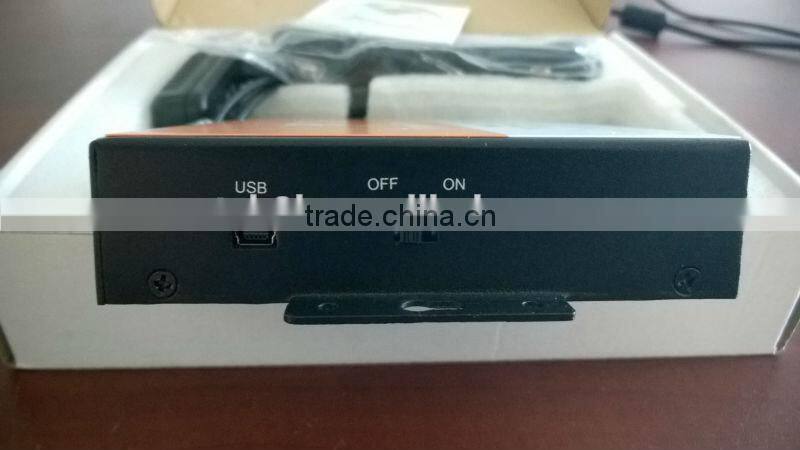

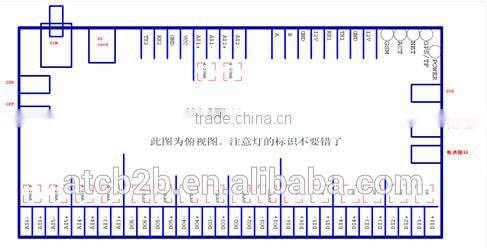

DIAGRAM

Power:  12V (12V-35V)

       Correspond Relay Specification

Communicate:   485/232 (Factory Default: 232)

              485:       (A   B)

              232:       (RX1       TX1        GND)

Digital Input:

              DI1:        (DI1+     DI1-)

              DI2:        (DI2+     DI2-)

Digital Output:

              DO1:      (DO1+    DO1-)

              DO2:      (DO2+    DO2-)

Analog Input:     Transmitter (temperature /water level / humidity/ pressure)

              Type:     Current (4-20mA)

              AI1:        (AI1+      AI1-)

              AI2:        (AI2+      AI2-)

Indicator Light:

              GSM:     Device Register State

              ACT:      Reserve for customized

              NET:      Reserve for customized

              GPS:      Reserve for customized

SIM Card:     3V/1V8

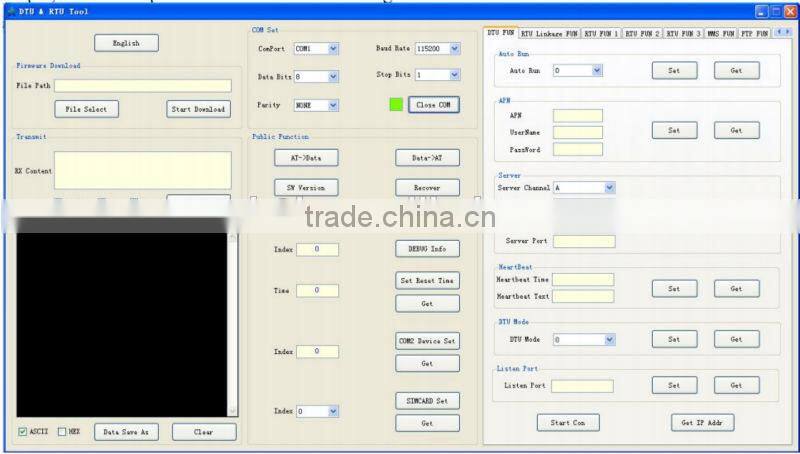

CONFIG TOOL SOFTWARE
