Specifications
1. simple operation2. high output
3. high efficiency

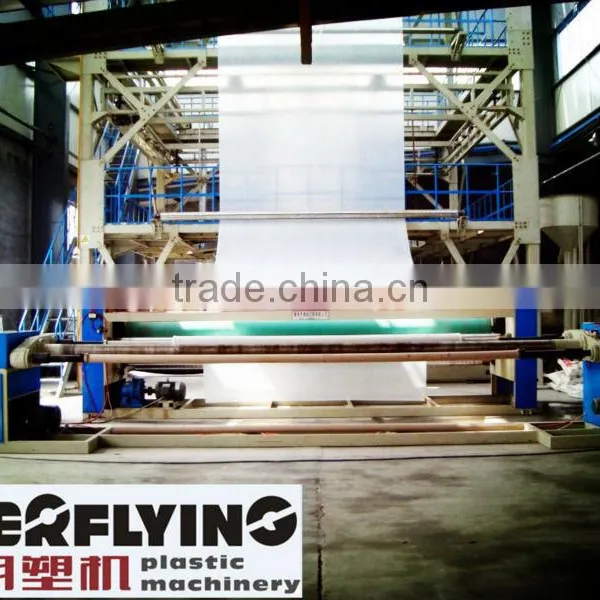

Structural characteristics of monolayer machine unit:
Monolayer plastic wide film blowing machine unit is mainly used for producing products of LDPE, LLDPE, EVA, LDPE/LLDPE Blend. Its main structural characteristics are as follows:
1. The extruder adopts corrugated screw with mixing head and force transporting barrel, and configured with DC motor (or frequency control motor).
2. The cooling system adopts air blower with low air pressure, and large air volume.
3. The haul-off system is stable and reliable.
4. It is supported by split device.
5. The inner cooling device can be matched by the requirement of users (ordered separately).
Technical parameter of monolayer machine
Model |
LD3200-I |
LD3200-II |
LD2800-I |
JCM3200-I |
JCM4000-I |
Extruder |
SJ-120/25 |
SJ-120/30 |
SJ-150/25 |
SJ-150/180/30 |
SJ-200/30 |
Dia. of screw |
120 |
120 |
150 |
150 or 180 |
200 |
L/D of screw |
25 |
30 |
25 |
30 |
30 |
Max. extrding capacity |
300 |
350 |
450 |
600 or 700 |
750 |
Dia. of neckling die |
650 |
1,000 |
1,200 |
1,400 |
1,600 |
Outer dia. of air ring |
1,400 |
2,500 |
3,200 |
3,600 |
3,600 |
Haul-off device |
Tower type structure |
||||
Haul-off height |
10,000 |
12,700 |
19,000 |
21,000 |
21,000 |
Length of nip roll |
3,200 |
3,200 |
2,800 |
3,200 |
4,000 |
Haul-off speed |
3~30 |
3~30 |
3~30 |
3~30 |
3~30 |
Wind-up device |
Two position center wind-up machine |
||||
Roller length |
3,200 |
3,200 |
2,800 |
3,200 |
4,000 |
Wind-up speed |
3~30 |
3~30 |
3~30 |
3~30 |
3~30 |
Total power of the unit |
195 |
245 |
310 |
400/or 490 |
550 |
Overall dimension |
12×5×11 |
13×5×13 |
14×7×19 |
14×7×21 |
16×8×21 |
