Help Centersj Series Multiple Layers Plastic Greenhouse Blown Film Extrusion Machine
Related Products
-
LD(L) and JCM(L) Monolayer Greenhouse Film MachineryNegotiableMOQ: 1 Set -
LD(L) and JCM(L) Multilayer Greenhouse Film Production Line 7NegotiableMOQ: 1 Set
-
Greenhouse Film Blowing Machine Set 7US$ 180,000 - 28,000,000MOQ: 1 Set
-
Two Colors Plastic Film Plant 8US$ 23,000 - 30,000MOQ: 1 Set
-
LD(L) and JCM(L) Multilayer Greenhouse Film Production Line 11NegotiableMOQ: 1 Set
Specifications
1. simple operation2. high output
3. high efficiency
1.The supplier provide all the machinery and equipment can meet the requirements of agreement and the corresponding standards.
2. Main parts warranty for one year, unit electric parts warranty half a year.
3.The supplier should be 12 months after shipment in equipment, material and process of design defects caused by any free on the damage to the machinery and equipment repair.
4.The supplier would be irresponsible for error handing, assembly, tighting and operation caused by damage.
Structural characteristics of multilayer machine unit:

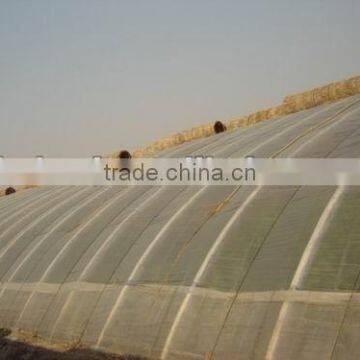

Multilayer co-extruding agricultural film, geomembrane blowing machine unit is developed and designed on the basis of absorbing western advanced key technology. It is applicable for processing LLDPE, LDPE, EVA, mPE, HDPE materials. The structure is reasonable and the property is stable. It possesses properties of good plasticizing, high output, low energy consumption, and clear layers splitting. It is ideal equipment for producing greenhouse film and geomembrane with multifunction of high strength, ageing resistance, no water drop, transmitting, and heat preservation.
Technical parameter of multiple layers machine
Model |
3FM2800-I |
3FM3500-I |
3FM5000-IV |
3FM5000-V |
3FM5500-I |
3FM5500-II |
Max. width |
10,000 |
12,000 |
14,000 |
16,000 |
18,000 |
20,000 |
Thickness |
0.08~0.12 |
|||||
Composed layers |
3 |
|||||
Applicable raw material |
LDPE, LLDPE, EVA |
|||||
Max. output |
600 |
1,000 |
1,500 |
1,800 |
2,000 |
2,300 |
Extruder |
90/30×2 120/25×1 |
120/25×2 150/30×1 |
150/30×3 |
150/30×2 180/30×1 |
180/30×3 |
180/30×3 |
Main driving power |
90×2+110 |
110×2+200 |
250×3 |
250×2+280 |
280×3 |
315×3 |
Dia of neckling die |
1,400 |
1,600 |
1,800 |
2,000 |
2,200 |
2,400 |
Outer dia. of air ring |
3,600 |
3,600 |
Double tuyeres |
Double tuyeres |
Double tuyeres |
Double tuyeres |
Haul-off height |
19,000 |
21,000 |
24,000 |
24,000 |
27,000 |
32,000 |
Wind-up speed |
3~30 |
|||||
Edge folding form |
Inserting plate |
|||||
Wind-up method |
Two position center wind-up machine |
|||||
Total power of the unit |
750 |
950 |
1,400 |
1,550 |
1,650 |
1,900 |
Overall dimension |
16×9×20 |
18×12×21 |
19×11×25 |
20×13×25 |
20×15×27 |
22×22×33 |
