Specifications
Monolayer plastic wide film blowing machine unit is mainly used for producing products of LDPE, LLDPE, EVA, LDPE/LLDPE Blend.
Greenhouse Film Blowing Machine
Structural characteristics of multilayer machine unit:
Multilayer co-extruding agricultural film, geomembrane blowing machine unit is developed and designed on the basis of absorbing western advanced key technology. It is applicable for processing LLDPE, LDPE, EVA, mPE, HDPE materials. The structure is reasonable and the property is stable. It possesses properties of good plasticizing, high output, low energy consumption, and clear layers splitting. It is ideal equipment for producing greenhouse film and geomembrane with multifunction of high strength, ageing resistance, no water drop, transmitting, and heat preservation.
Features:
1. Products: wide plastic agriculture film, functional membrane and geomembrane, etc.
2. Raw material: LDPE, LLDPE, LDPE/LLDPE blend, HDPE, and EVA, etc.
3. Functional film characteristics: high intensity, anti-aging, no fogdrop, penetration and heat insulation, etc.
4. The geomembrane product with high strength and good obstruct have special adhesion, optional parts, which improve the film cooling efficiency and outputs.
5. Screw: Adopt special screw, which has good plasticizing performance.
6. Winder: double-position and core winding type winder.
7. Low energy consumption: 10%-20% lower than the same domestic machine.
Technical parameter of multilayer machine:
Model | 3FM2800-I | 3FM3500-I | 3FM5000-IV | 3FM5000-V | 3FM5500-I | 3FM5500-II |
Max. width | 10,000 | 12,000 | 14,000 | 16,000 | 18,000 | 20,000 |
Thickness | 0.08~0.12 | |||||
Composed layers | 3 | |||||
Applicable raw material | LDPE, LLDPE, EVA | |||||
Max. output | 600 | 1,000 | 1,500 | 1,800 | 2,000 | 2,300 |
Extruder | 90/30×2 120/25×1 | 120/25×2 150/30×1 | 150/30×3 | 150/30×2 180/30×1 | 180/30×3 | 180/30×3 |
Main driving power | 90×2+110 | 110×2+200 | 250×3 | 250×2+280 | 280×3 | 315×3 |
Dia of neckling die | 1,400 | 1,600 | 1,800 | 2,000 | 2,200 | 2,400 |
Outer dia. of air ring | 3,600 | 3,600 | Double tuyeres | Double tuyeres | Double tuyeres | Double tuyeres |
Haul-off height | 19,000 | 21,000 | 24,000 | 24,000 | 27,000 | 32,000 |
Wind-up speed | 3~30 | |||||
Edge folding form | Inserting plate | |||||
Wind-up method | Two position center wind-up machine | |||||
Total power of the unit | 750 | 950 | 1,400 | 1,550 | 1,650 | 1,900 |
Overall dimension | 16×9×20 | 18×12×21 | 19×11×25 | 20×13×25 | 20×15×27 | 22×22×33 |
Display:

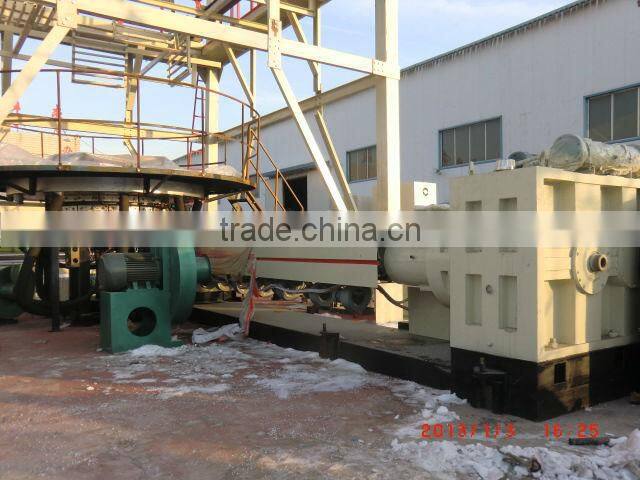

Extruder

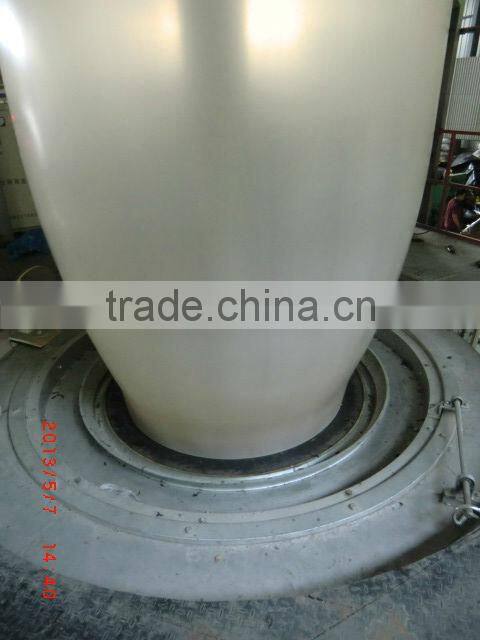

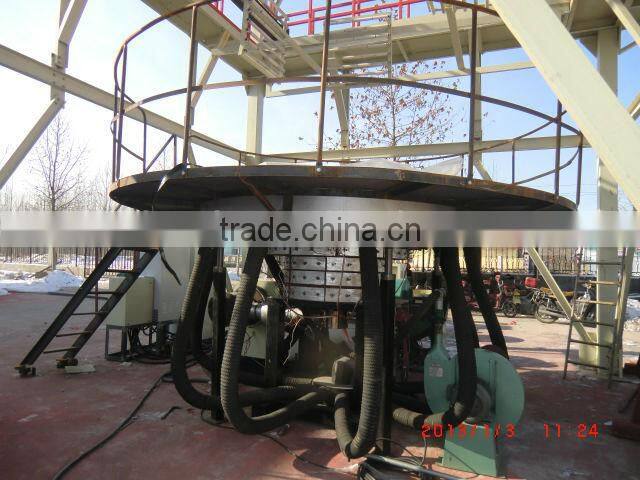

Die Head

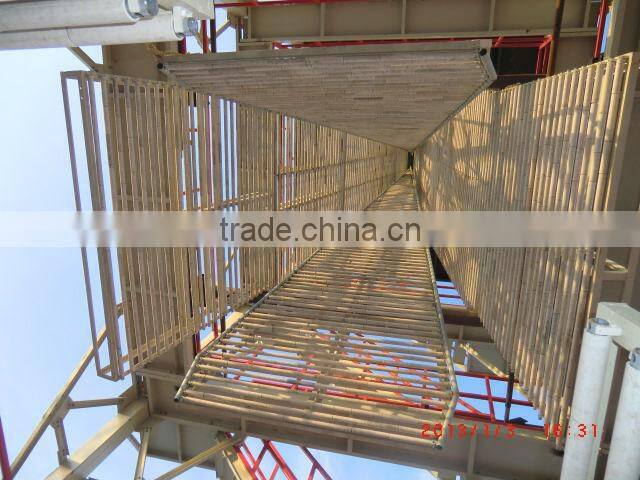

Herringbone Plate and Inserting Plate

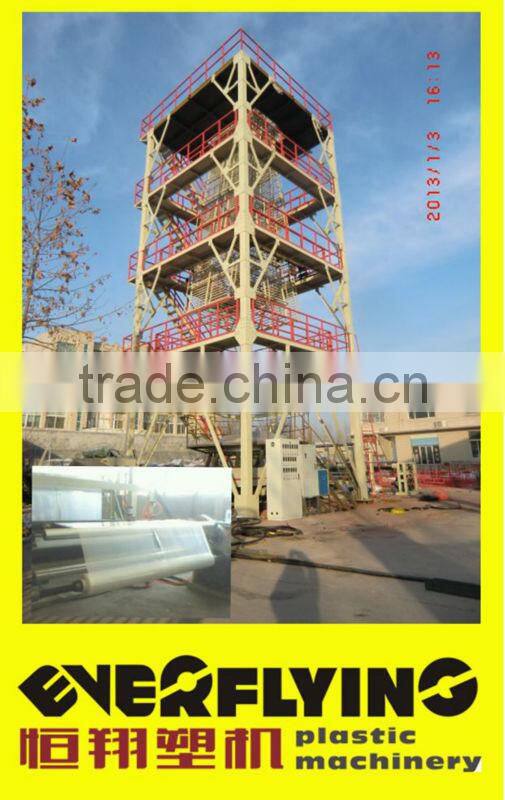

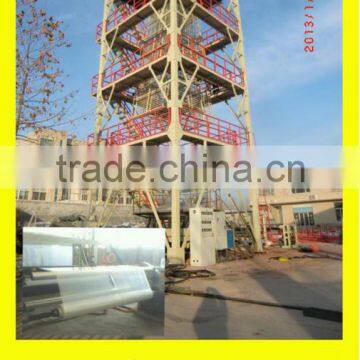

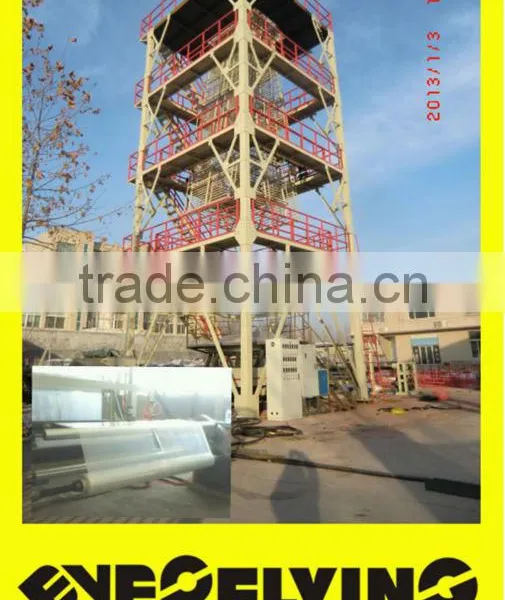

Upper Haul-off Device
Second Haul-off Device

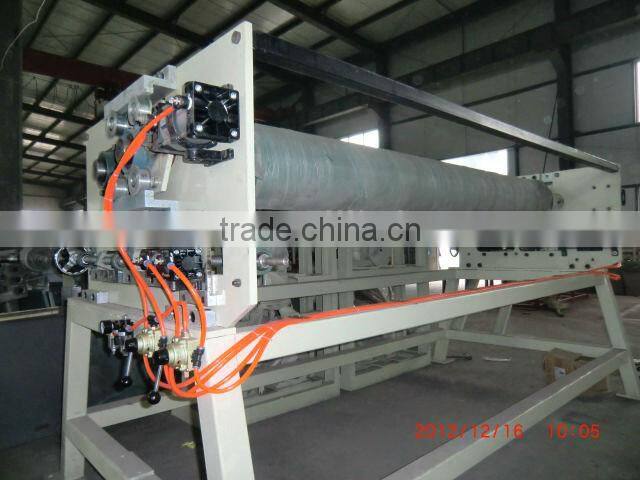

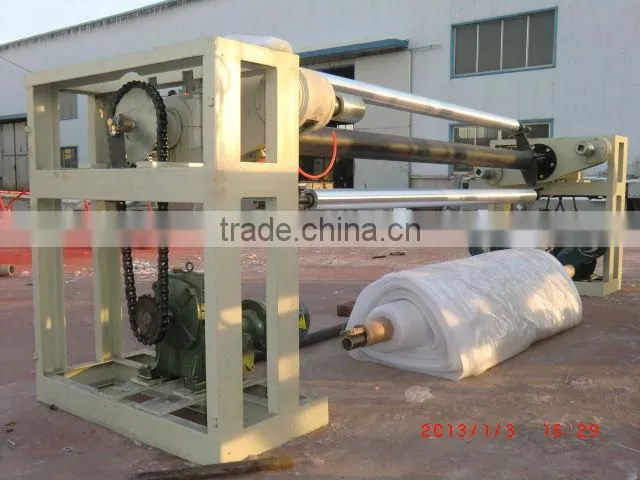

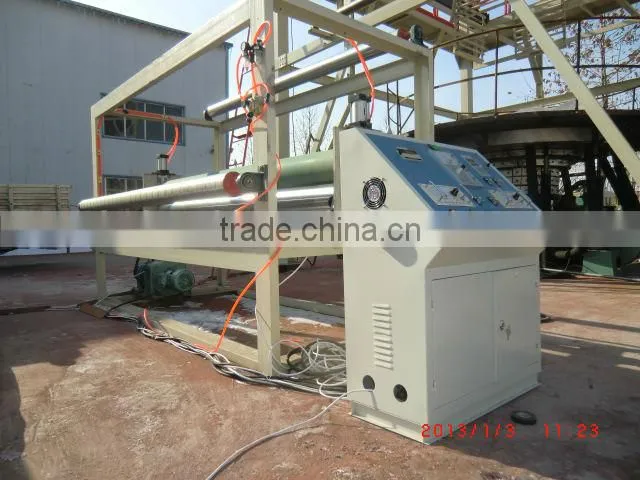

Winder
Geomembrane and Die Head
Expension Device and Winder for Geomembrane

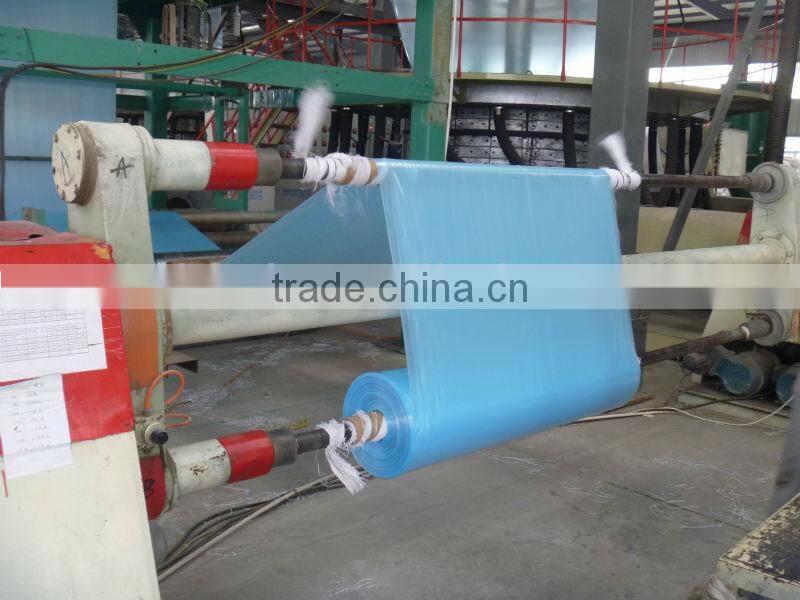

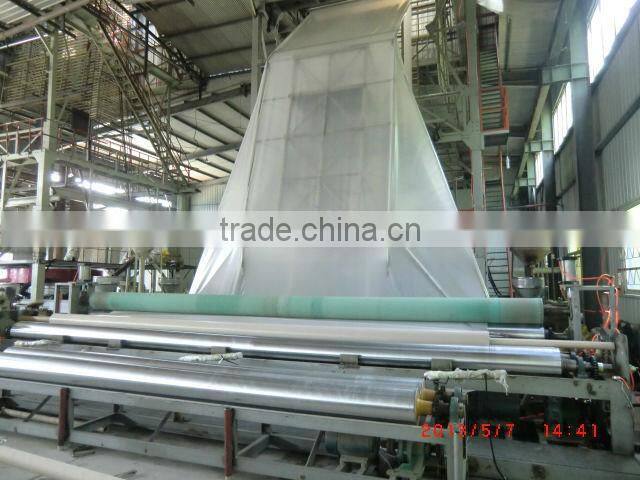

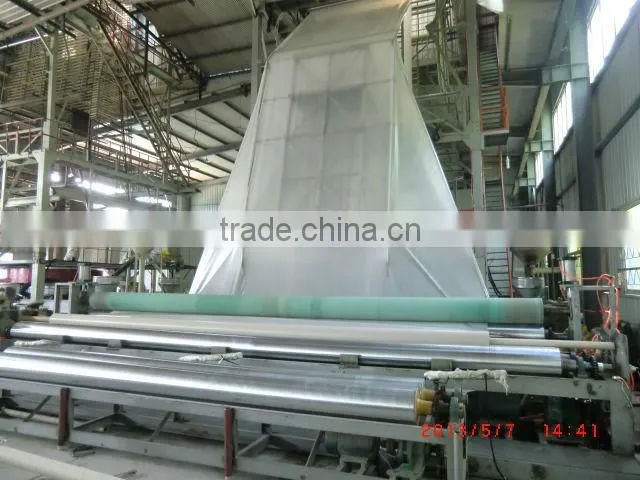

Greenhouse Film Winder
Qualifcation:
Guarantee:
Machines supplied by our company shall be guaranteed for 12 months.
We will dispatch engineers to customer's factory for installation and adjustment, and train staffs about how to operation the machine, and how to solve problems when some problems happen.
We warmly welcome you to visit our company.
Skype: juneshuijing1
