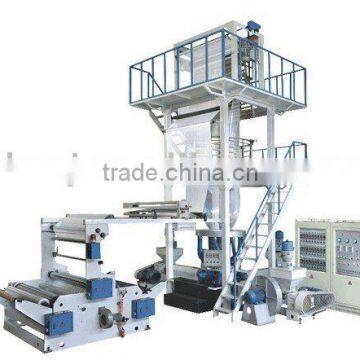

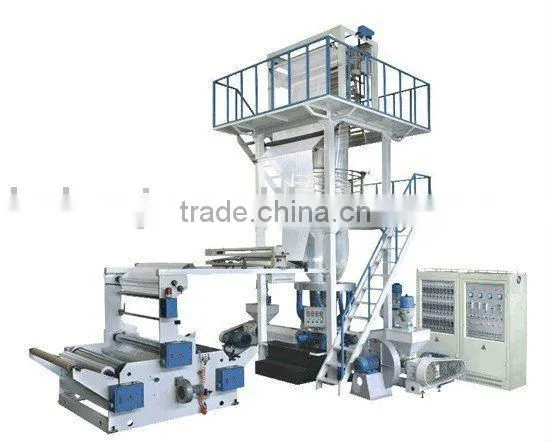

Help CenterPlastic Film Machine: PE Series 2FM Plastic Packaging Film Blowing Machine Unit
Related Products
-
Thermal Contraction / Shrink Film Making MachineNegotiableMOQ: 1 Set -
Everflying PE Plastic Film Blowing MachineNegotiableMOQ: 1 Set
-
SS-45/30 Plastic PE Two Colors Film Series Blowing Machine With Agriculture Film ScrapNegotiableMOQ: 1 Set
-
SJ-DPM Plastic Greenhouse Film Blowing MachineNegotiableMOQ: 1 Set
-
SS-DM Two Colors Film Blowing MachineNegotiableMOQ: 1 Set
Specifications
1.Applicable for LLDPE, LDPE, LLDPE/LDPE blend, mPE, EVE2. Two layers
3.air ring: dike type
4.folding width:1,000-2,000mm
Structural characteristics
It mainly adopts advanced technologies of high-efficiency and energy saving extruding system, rotating die head, elevation type haul-off, and automatic temperature control system. The die head and the screw are processed by imported processing center.
Double layer co-extruding composition plastic packaging film machine unit is mainly used for producing LDPE, LLPE, EVA, and mPE two-type two-layer or one-type two-layer composition films. It is the ideal equipment for producing various fluid packaging film, printing film and black/white films.
Main technical parameters:
Model | 2FM1100-I | 2FM1300-I | 2FM1600-I | 2FM2200-I |
Max. folding width MM | 1,000 | 1,200 | 1,500 | 2,000 |
Applicable raw material | LLDPE, LDPE, LLDPE/LDPE Blend, mPE, EVA | |||
Composed layers | 2 | 2 | 2 | 2 |
Screw dia. | Φ45/Φ45 | Φ45/Φ45 | Φ50/Φ50 | Φ55/Φ55 |
Max. plasticizing capacity | 90kg/h (LDPE) | 90kg/h (LDPE) | 110kg/h (LDPE) | 150kg/h (LDPE) |
Die head | Φ200 | Φ300 | Φ350 | Φ500 |
Air ring | Dike type, steady wind structure | |||
Length of haul-off roller | 1,100 | 1,300 | 1,600 | 2,200 |
Wind-up speed | 3~30m/min |
|
|
|
Total power kw | 60 | 62 | 70 | 90 |
Overall dimension | 7×5.5×5 | 7×5.7×5 | 7.5×6×7 | 7.5×6.6×7.6 |
Weight tons | 10 | 11 | 12 | 12.5 |
