Weifang 10KVA-500KVA Diesel Genset
1, Main Specification
1) Generators are Composed Ricardo or Deutz Engines with Stamford Alternators
2) Single or Three Phase, 50Hz@1500rpm or 60Hz@1800rpm, 400/230V or 380/220V
3) 12V/24V DC Start Motor and Storage Battery
4) 8 Hours Operation Fuel Tank
5) All Optional Types: Open Type, Soundproof with Canopy, Trailer with 4 Wheels

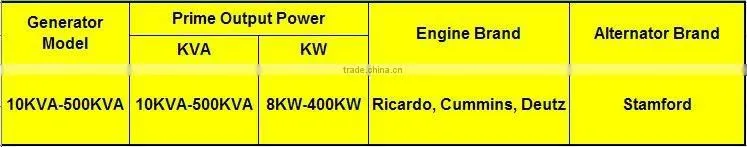

2, Generator Data Sheet
1) Prime Output Power: These ratings are applicable for supplying continuous electrical power (at avriable load) in lieu of commercially purchase power. There is no limitation to the annual hours of operation and these ratings can supply 10% overload for 1 hour in 12 hours.
2) Engine Brand: We are the factory and have produced Ricardo series diesel enignes for nearby 10 years. We also always have long-time and good cooperation with Deutz manufacturer in China.
3) Alternator Brand: We have signed the written agreement with China Stamford alternator factory and they will supply all kinds of alternators for us with so competitive prices based on best quality.

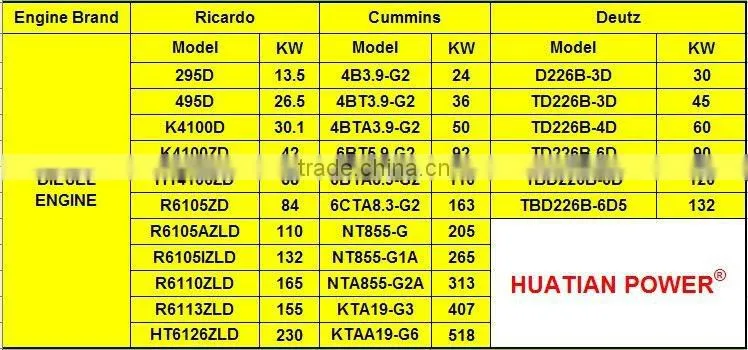

3, Diesel Engine Specification
4, Alternator Data
5, Control Panel
The base mounted control panel in vibration isolated sheet steel enclosure.
The control panel is equipped as followings,
1) Instruments: Analogue voltmeter, Hours run meter, Water pressure meter.
2) Control protection: High engine temperature, low oil pressure, overspeed, ect.
3) Control module: Standard collocation is Smartgen HGM6120 auto start with AMF.
Export Standard Plywood case
Manager: Alex Zhang
Mobile: 0086-15169542396
Whatsapp: 0086-15169542396
Viber: 0086-15169542396
Skype: alex_enginegenset
1. Weifang Huatian Diesel Engine Co., Ltd is specialized in diesel engines,gas engines, diesel generators, gas generators, diesel water pump sets and Weichai spare parts.
2. HUATIAN Brand Diesel Engines cover power from 20hp-400hp,,with 2 cylinders,4 cylinders and 6 cylinders.
3. Generator sets are chosed Deutz, Steyr,Ricardo diesel engines, matching with Stamford, Marathon, Leroy Somer brand alternators, from 10kva to 1000kva.
4. Weichai diesel engines and generators spare parts are all genius. All accessories have been in stock for 1 to 2 days goods deliveried.
