Super Silent Type Diesel Generator 500KVA With Cummins Engine

Weifang Huatian Diesel Engine Co., Ltd.

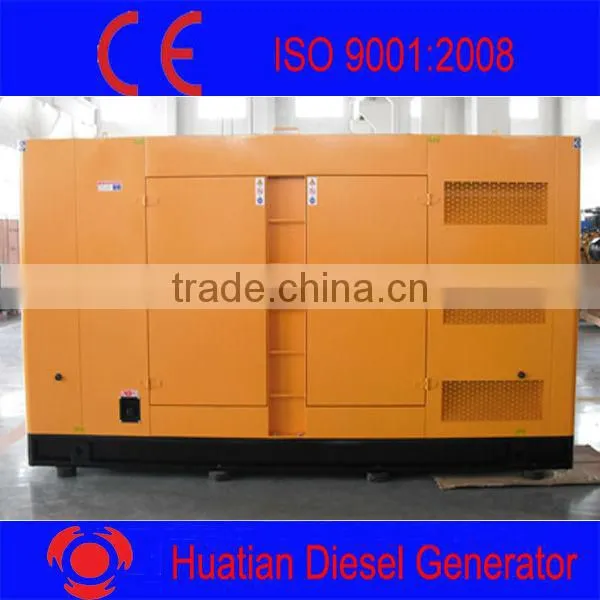

Super Silent Type Diesel Generator 500KVA With Cummins Engine thumbnail-1
Super Silent Type Diesel Generator 500KVA With Cummins Engine photo-1
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Weichai Huatian
Model Number:
500KVA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Weichai Huatian
Model Number 500KVA
Output Type AC Three Phase
Speed 1500 rpm
Frequency 50 Hz
Rated Power 500 KVA
Rated Voltage 400 V
Rated Current 900 A

Super Silent Type Diesel Generator 500KVA with Cummins Engine



-------------------Diesel Generator Main Specification----------------

Technical Specification
1. Specification of genset
Gensets model500GF
Prime power500KW
Rated Voltage380/220V
Rated frequency(HZ)50
Rated Speed 1500rpm
Power Factor0.8(lagging)
Dimensions(mm) (L×W×H)3600×1300×2000
Net Weight(kg)4100
2. Specification of diesel engine
Engine brandCummins
Engine modelKTA19-G4
Number of Cylinders6
Cylinder arrangementVertical in-line
CycleFour stroke
AspirationTurbocharged after water cooled
Bore×Stroke (mm×mm)159x 159
Displacement (Liter)18.9
Compression Ratio14.5:1
Speed GovernorElectrical
Cooling SystemWater cooled
Speed Stability (%)≤5%
Total lubrication system capacity (L)50
Fuel Consumption at 100% Load (L/h)201
Starting MethodDC24V Electrical starting
3. Specification of alternator
Alternator brandChinese Stamford
Number of Phase3
Connecting Type3 Phase and 4 Wires
Number of Bearing1
Protection GradeIP23
Exciter TypeBrushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation ClassH
THF≤2%
Voltage Regulation, Steady State≤±0.5%
Transient State Voltage≤-15%~+20%
4. Specification of control Panel
The control panel is Ordinary integrative type control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
The features of LCD controller:
LCD controller adopts high performance computer chip, can modify control procedure and protection parameters of generator, which incorporating measure, control, protection and three remote functions and so on, can fully satisfactory different kinds of Genset auto control requirements for generator user and or special assembly factory.
The controller measure and display all output digital parameters for generator, and rpm, oil pressure, water temperature, DC voltage and runtime for engine. And the voltage and current use real virtual value measure to make sure the data more exacter.
• Chinese/English menu for your choice, large LCD display.
• Can select kinds of preset PT-sensor, and can custom parameter by corresponding software.
• Keys on control panel are used for selecting control mode, startup running procedure, data display and modify the protection parameter. LED indicator is used for indicating the controller running mode and Genset running status, and LCD display measuring parameter and status.
• Can select RS485 or RS232 communication port, realizing long distance monitor, and or fully realizing remote signaling, telemetering and remote control functions by communication with PC, can read and setting controller running parameter.
• The controller is assembled by high strength plasticized panel and powdered steel shell, all connection are connected by pin-like and locked up terminal, more easier and convenient to connect, move, maintain and replace.

------------------------Customers Service Center-------------------------

 MANGER:GZ



MOBILE:0086-13589215967

-------------------------------Features & Benefits---------------------------

-------------------------Soundproof & Packaging-------------------------

----------------------------------Control System------------------------------

-----------------------------Certifications Show-----------------------------
