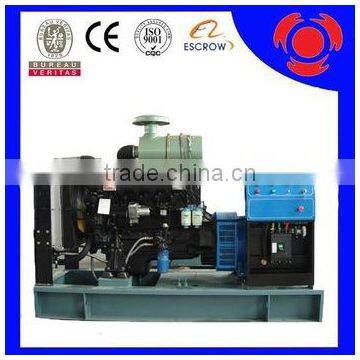

Weichai Ricardo Diesel Generator 50 kva / 40kw for R4105D
1, Generators Main Specification
1) Generators are composed Ricardo R4105D diesel engines with Stamford alternators
2) Single or three phase, 50Hz@1500rpm or 60Hz@1800rpm, 400/230V or 380/220V
3) 12V/24V DC start motor and storage battery
4) Brushless, Self-excited, IP23 and insulation class H alternator
5) 8 hours operation fuel tank

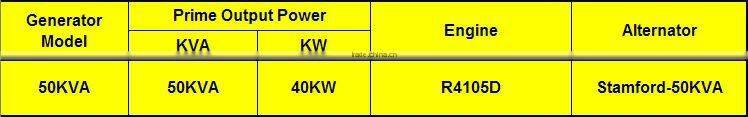

2, Generator Data Sheet
1) Prime Output Power: These ratings are applicable for supplying continuous electrical power (at avriable load) in lieu of commercially purchase power. There is no limitation to the annual hours of operation and these ratings can supply 10% overload for 1 hour in 12 hours.
2) Engine Brand: We are the factory and have produced Ricardo series diesel enignes for nearby 10 years. We also always have long-time and good cooperation with Cummins and Deutz manufacturer in China.
3) Alternator Brand: We have signed the written agreement with China Stamford alternator factory and they will supply all kinds of alternators for us with so competitive prices based on best quality.

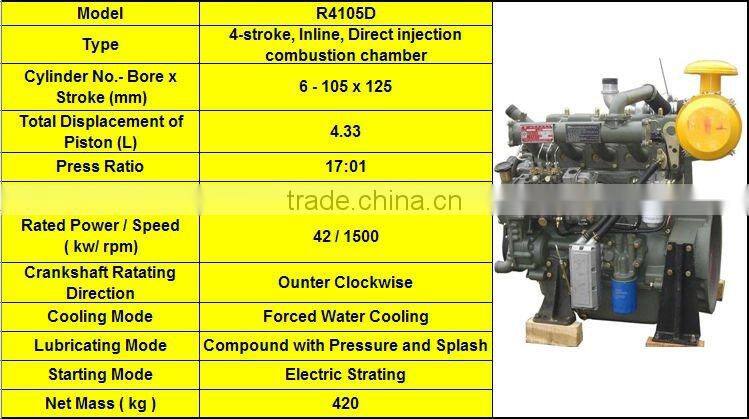

3, Diesel Engine Specification
4, Alternator Data
5, Control Panel
The base mounted control panel in vibration isolated sheet steel enclosure.
The control panel is equipped as followings,
1) Instruments: Analogue voltmeter, Hours run meter, Water pressure meter.
2) Control protection: High engine temperature, low oil pressure, overspeed, ect.
3) Control module: Standard collocation is Smartgen HGM6120 auto start with AMF.
