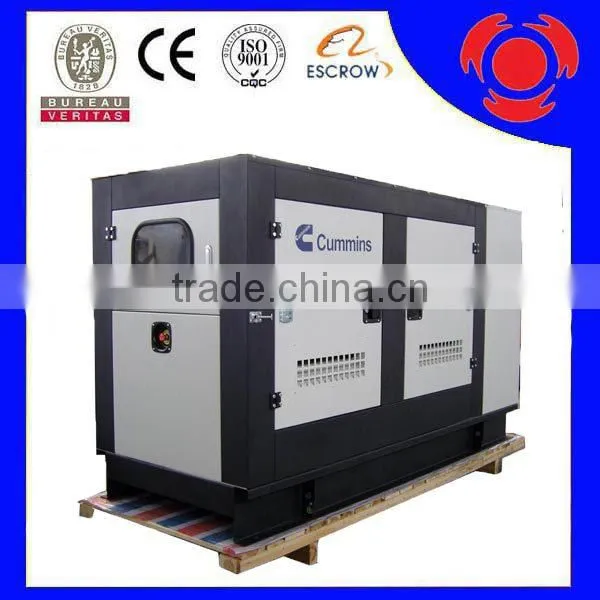

China Weifang Diesel Engine Genset 20-230kva Super Silent Soundproof Low Noise with Canopy
-------------------Diesel Generator Main Specification----------------
The main parameters of the set | |
The model of the unit | 300GF |
Power | 300KW |
Rated voltage | 480V |
Rated frequency | 50Hz |
The factor of rated power | COS=0.8lagging |
The regulating rate of steady voltage | ≤1% |
The regulating rate of instantaneous voltage | -15%~ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
The waving rate of frequency | ≤1% |
Displacement (L) | 14 |
The waste of fuel with full load | ≤210g/kwh |
Lube-oil consumption (L) | 38.6 |
The main parameters of the diesel engine | |
Brand | CUMMINS |
Model | NTA855-G2A |
Type | Four strokes, waste gas turbine boost,direct spurting type |
Cylinder | 6 cylinders |
Cooling way | Water cooling |
Rotating speed | 1500r/min |
The regulation of rotating speed | Electric speed regulator |
Starting way | DC24V starting with electricity |
The main parameters of the Alternator | |
Brand | Chinese Stamford |
Type | Brushless ,Self-excite, AVR automatic voltage regulating |
The connecting way of the phase | Three phases four lines |
Insulation degree | H degree |
Enclosure degree | IP21-IP23 |
The components of the set (1)Diesel engine (2)Alternator (3)Silent box | |

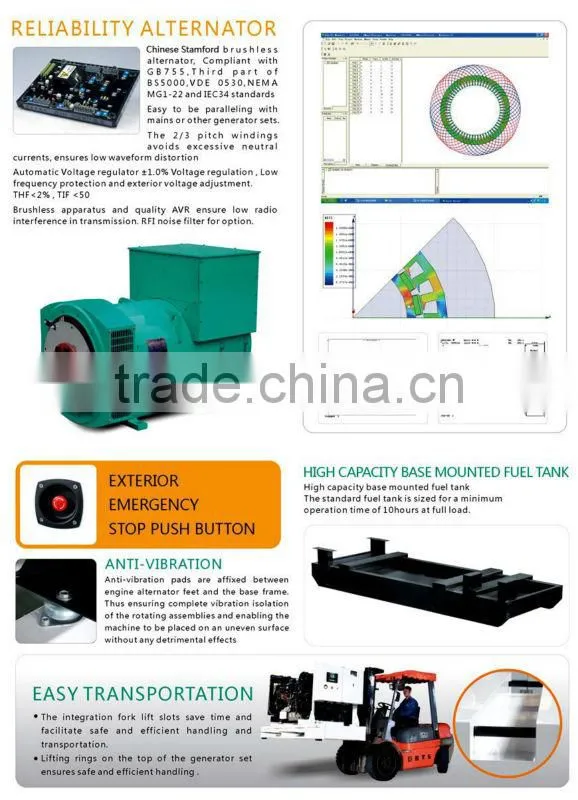

-------------------------------Features & Benefits---------------------------
-------------------------Soundproof & Packaging-------------------------
----------------------------------Control System------------------------------
Export Standard Plywood case
Manager: Alex Zhang
Mobile: 0086-15169542396
Whatsapp: 0086-15169542396
Viber: 0086-15169542396
Skype: alex_enginegenset
1. Weifang Huatian Diesel Engine Co., Ltd is specialized in diesel engines,gas engines, diesel generators, gas generators, diesel water pump sets and Weichai spare parts.
2. HUATIAN Brand Diesel Engines cover power from 20hp-400hp,,with 2 cylinders,4 cylinders and 6 cylinders.
3. Generator sets are chosed Cummins, Perkins, Deutz, Steyr,Ricardo diesel engines, matching with Stamford, Marathon, Leroy Somer brand alternators, from 10kva to 1000kva.
4. Weichai diesel engines and generators spare parts are all genius. All accessories have been in stock for 1 to 2 days goods deliveried.
