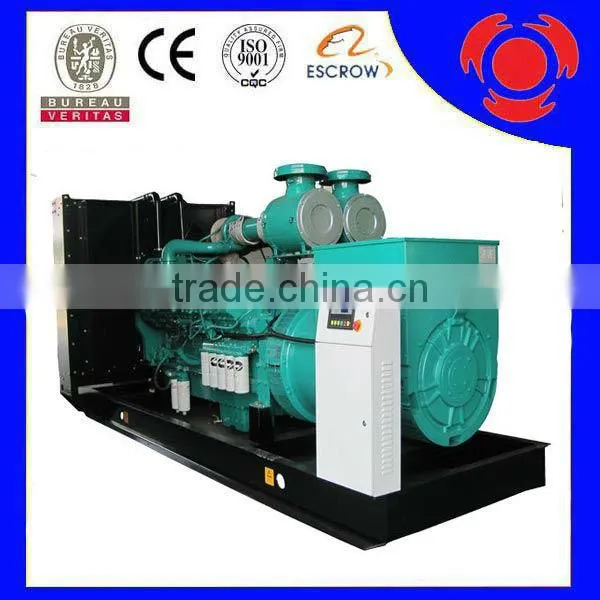

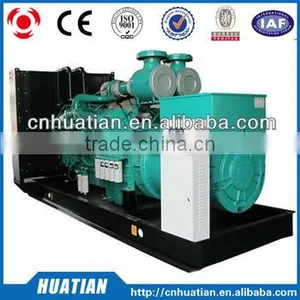

Good Quality 3 Phase Ricardo Generator / Power Generator

Name: Good Quality 3 Phase Ricardo Generator / Power Generator
Brand: weifang huatian
SKU: 141184876
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

weifang huatian

Model Number:

8GF-800GF

Weifang Huatian Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name weifang huatian

Model Number 8GF-800GF

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50/60Hz

Rated Power 8KW/10KVA-800KW/1000KVA

Rated Voltage 400/230v

Rated Current 18A

good quality 3 phase ricardo generator / power generator

Product Description

Technical data
Genset Model				200GF
Prime Power				200KW
Rated Voltage				400/230V
Frequency				50Hz
Power Factor				0.8(lagging)
Dimension (L×W×H)(open type) (mm)				2700×970×1800
Genset weight (kg)				2600
Dimension (L×W×H)(soundproof type) (mm)				4300×1800×2100
Genset weight (kg)				3200
Diesel Engine
Brand				Cummins
Model				6LTAA8.9-G2
Number of Cylinders				6
Rotating Speed				1500RPM
Cylinder Arrangement				Vertical in-line
Cycle				Four stroke
Aspiration				Turbocharged after air-air cooled
Bore×Stroke(mm)				114 x 144
Displacement(L)				8.9
Compression Ratio				17.0:1
Speed Governor				Electrical
Cooling System				Water-cooled
Speed Stability (%)				≤5%
Total Lubrication System Capacity (L)				23.8
Fuel Consumption at 100% Load				199g/kwh
Starting Method				DC24V Electrical starting
Alternator
Brand				Stamford
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP23
Altitude				≤1000m
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating
Insulation Class				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%~+20%
