Home > Products > New Products > Diesel Turbine Generator Power Generation Generac Electricity Electric for Home

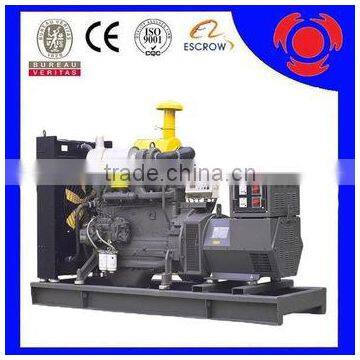

Diesel Turbine Generator Power Generation Generac Electricity Electric for Home
- 10000 Set / Sets per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | Weichai Huatian | Model Number: | 100kw |
Output Type: | AC Three Phase | Speed: | 1500rpm | Frequency: | 50Hz |
Rated Power: | 100kw/125kva | Rated Voltage: | 400/230V | Rated Current: | 180A |
Product Description
Diesel Turbine Generator Power Generation Generac Electricity Electric for Home
-------------------Diesel Generator Main Specification----------------
Specification of genset | ||||||||
Gensets model | 120GF | |||||||
Prime power(KW) | 120 | |||||||
Rated voltage(V) | 400 / 230 | |||||||
Rated current(A) | 217 | |||||||
Rated frequency(HZ) | 50 | |||||||
Rated Speed (rpm) | 1500 | |||||||
Power Factor | 0.8(lagging) | |||||||
Dimensions(mm) (L×W×H) | 2450x930x1730 | |||||||
Genset Weight(kg) | 1700 | |||||||
Specification of diesel engine | ||||||||
Engine brand | Weifang Huatian | |||||||
Engine model | R6105IZLD | |||||||
Air Intake System | Turbocharged | |||||||
Fuel System | Direct Injection | |||||||
Cycle | Four stroke | |||||||
Cylinder Arrangement | 6 in line | |||||||
Displacement | 7.01L | |||||||
Bore×Stroke (mm×mm) | 105 x 135 | |||||||
Rated RPM | 1500rpm | |||||||
Cooling System | Forced Water Cooling Cycle | |||||||
Governor Type | Mechanical | |||||||
Fuel Consumption at 100% Load (g/kwh) | 238 | |||||||
Starting Method | DC24V electrical starting | |||||||
Specification of alternator | ||||||||
Alternator brand | Chinese Stamford | |||||||
Excitation | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
Number of Phase | 3 | |||||||
Connecting Type | 3 Phase and 4 Wires | |||||||
Number of Bearing | 1 | |||||||
Power Factor | 0.8 | |||||||
Protection Grade | IP21 | |||||||
Altitude | ≤1000m | |||||||
Insulation Class, Temperature Rise | H | |||||||
Telephone Influence Factor (TIF) | ≤50 | |||||||
THF | ≤2% | |||||||
Voltage Regulation, Steady State | ≤±1% | |||||||
Transient State Voltage | ≤-15%~+20% | |||||||
Specification of control Panel | ||||||||
The control panel is common integrated control panel, with the display of voltage,current, frequency, water temperature, oil pressure. |
------------------------Customers Service Center-------------------------
-------------------------------Features & Benefits---------------------------
-------------------------Soundproof & Packaging-------------------------
----------------------------------Control System------------------------------
-----------------------------Certifications Show-----------------------------
