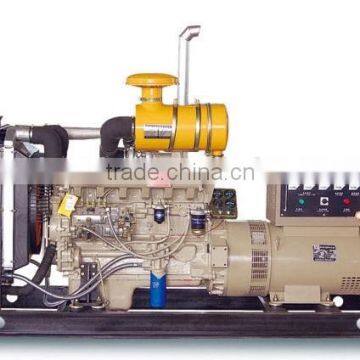

Chinese Open Type Generator With Power Output From 8kw to 500kw

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

100GF

Weifang Huatian Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name HT

Model Number 100GF

Output Type AC Three Phase

Speed 1500RPM

Frequency 50HZ

Rated Power 100kw/125KVA

Rated Voltage 400/230V

Rated Current 216A

Power Data
Voltage	Prime Power		Standby Power		Rated Frequency(HZ)	P.F	Phase No.
	kva	kw	kva	kw
400/230	125	100	137.5	110	50	0.8	3
Engine Data
Manufacturer		Ricardo		Rated Speed		1500rpm
Model		R6105AZLD		Engine Power (kw/hp)		110/149.7
Fuel Consumption (g/kw.h)		230		Cylinder Arrangement		6 In Line
Air Intake system		Turbocharged, Water Cooling		Frequency Regulation ,Steady State		<±0.5%
Fuel System		A type fuel Pump		Max standby Power at Rated RPM		121KW
Alternator Data
Manufacture /Type		STAMFORD UCI274E		Exciter Type:		Brush less, self-exciting
Number of Phase:		Three		Insulation Class, Temperature Rise		H/H
Connecting Type		3 Phase and 4 wire Rotating Field		Telephone Influence Factor (TIF)		<50
Number of Bearing		one		THF		<2%
Power Factor		0.8		Voltage Regulation, Steady State		≤1.5%
Protection Grade		IP23		Frequency Regulation, Stead State		≤0.8%
Altitude:		≤1000m		Frequency waving		≤+12%
