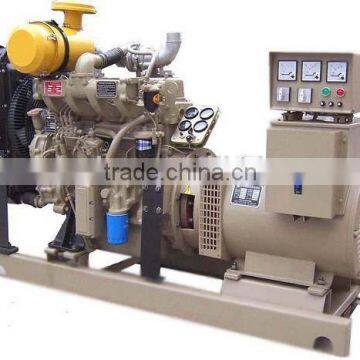

Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Ricardo 105 Series Diesel Engine With Brushless Alternator
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HT
Model Number:
8GF-500GF
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
R6126ZLD Diesel Engine With Brushless Alternator Power 200kwNegotiableMOQ: 1 Set -
Generator With 105 Series Diesel Engine ISO CertificatedNegotiableMOQ: 1 Set
-
K4100 Series Diesel Engine With Stamford Alternator Output Power 30kvaNegotiableMOQ: 1 Set
-
Hot Sale Water Cooled 4-Stroke Diesel Generator With Factory PriceNegotiableMOQ: 1 Set
-
Styer Diesel Engine With Copper Alternator 200kw Diesel GeneratorNegotiableMOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
HT
Model Number
8GF-500GF
Output Type
AC Three Phase
Speed
1500RPM
Frequency
50HZ
Rated Power
8KW-500KW
Rated Voltage
400V
Rated Current
14.4-900A
Product Description
| Genset Model | Rated Power | Standby Power | Rated Current | Rated Voltage | Rated Frequency | Connection type | Fuel Consumption | Power Factor | Alternator | ||
| kw | kva | kw | kva | ||||||||
| 8GF | 8 | 10 | 8.8 | 11 | 14.4 | 400 | 50 | 3-phrase,4-wire | 248 | 0.8 | Brushless |
| 10GF | 10 | 12.5 | 11 | 13.75 | 18 | 400 | 50 | 3-phrase,4-wire | 248 | 0.8 | Brushless |
| 12GF | 12 | 15 | 13.2 | 16.5 | 21.6 | 400 | 50 | 3-phrase,4-wire | 248 | 0.8 | Brushless |
| 15GF | 15 | 18.75 | 16.5 | 20.625 | 27 | 400 | 50 | 3-phrase,4-wire | 248 | 0.8 | Brushless |
| 20GF | 20 | 25 | 22 | 27.5 | 36 | 400 | 50 | 3-phrase,4-wire | 238 | 0.8 | Brushless |
| 24GF | 24 | 30 | 26.4 | 33 | 43.2 | 400 | 50 | 3-phrase,4-wire | 238 | 0.8 | Brushless |
| 30GF | 30 | 37.5 | 33 | 41.25 | 54 | 400 | 50 | 3-phrase,4-wire | 238 | 0.8 | Brushless |
| 40GF | 40 | 50 | 44 | 55 | 72 | 400 | 50 | 3-phrase,4-wire | 238 | 0.8 | Brushless |
| 50GF | 50 | 62.5 | 55 | 68.75 | 90 | 400 | 50 | 3-phrase,4-wire | 230 | 0.8 | Brushless |
| 75GF | 75 | 93.75 | 82.5 | 103.13 | 135 | 400 | 50 | 3-phrase,4-wire | 230 | 0.8 | Brushless |
| 80GF | 80 | 100 | 88 | 110 | 144 | 400 | 50 | 3-phrase,4-wire | 230 | 0.8 | Brushless |
| 90GF | 90 | 112.5 | 99 | 123.75 | 162 | 400 | 50 | 3-phrase,4-wire | 230 | 0.8 | Brushless |
| 100GF | 120 | 150 | 132 | 165 | 216 | 400 | 50 | 3-phrase,4-wire | 230 | 0.8 | Brushless |
| 130GF | 150 | 187.5 | 165 | 206.25 | 270 | 400 | 50 | 3-phrase,4-wire | 230 | 0.8 | Brushless |
| 150GF | 200 | 250 | 220 | 275 | 360 | 400 | 50 | 3-phrase,4-wire | 224 | 0.8 | Brushless |
| 200GF | 300 | 375 | 330 | 412.5 | 540 | 400 | 50 | 3-phrase,4-wire | 218 | 0.8 | Brushless |
| 300GF | 300 | 375 | 330 | 412.5 | 540 | 400 | 50 | 3-phrase,4-wire | 218 | 0.8 | Brushless |
| 320GF | 320 | 400 | 352 | 440 | 576 | 400 | 50 | 3-phrase,4-wire | 218 | 0.8 | Brushless |
| 350GR | 350 | 437.5 | 385 | 481.25 | 630 | 400 | 50 | 3-phrase,4-wire | 218 | 0.8 | Brushless |
| 400GF | 400 | 500 | 440 | 550 | 720 | 400 | 50 | 3-phrase,4-wire | 218 | 0.8 | Brushless |
| 500GF | 500 | 625 | 550 | 687.5 | 900 | 400 | 50 | 3-phrase,4-wire | 218 | 0.8 | Brushless |
| Genset Model | Engine modle | Rated Power | Cylinder No. | Rated Speed | Open Type Dimmension | Open Type Gross Weight | Silent Type Dimmension | Silent Type Gross Weight | Noise Level | |
| kw | hp | rpm | LXW*H(mm) | kg | L*W*H(mm) | kg | ||||
| 8GF | 295D | 13.5 | 18.4 | 2 | 1500 | 1650*700*1100 | 500 | 2100*1120*1650 | 1060 | 75-80 |
| 10GF | 295D | 13.5 | 18.4 | 2 | 1500 | 1650*700*1100 | 550 | 2100*1120*1650 | 1060 | 75-80 |
| 12GF | 2100D | 15 | 20.4 | 2 | 1500 | 1650*700*1100 | 600 | 2100*1120*1650 | 1060 | 75-80 |
| 15GF | 495D | 26.5 | 36.1 | 4 | 1500 | 1850*750*1330 | 780 | 2450*1150*1700 | 1330 | 75-80 |
| 20GF | 495D | 26.5 | 36.1 | 4 | 1500 | 1850*750*1330 | 800 | 2450*1150*1700 | 1330 | 75-80 |
| 24GF | K4100D | 30.1 | 41 | 4 | 1500 | 1850*750*1330 | 800 | 2450*1150*1700 | 1330 | 75-80 |
| 30GF | 495ZD | 36 | 49 | 4 | 1500 | 1900*750*1450 | 900 | 2450*1150*1700 | 1350 | 75-80 |
| 40GF | K4102ZD | 44 | 59.9 | 4 | 1500 | 1900*750*1450 | 900 | 2450*1150*1700 | 1350 | 75-80 |
| 50GF | R4105ZD | 56 | 76.2 | 4 | 1500 | 2000*750*1430 | 950 | 2800*1150*1700 | 1710 | 75-80 |
| 75GF | R6105ZD | 84 | 114.3 | 6 | 1500 | 2500*780*1600 | 1150 | 3300*1280*2000 | 2330 | 75-80 |
| 80GF | R6105AZD | 90 | 122.4 | 6 | 1500 | 2500*780*1600 | 1200 | 3500*1280*2000 | 2460 | 75-80 |
| 90GF | R6105ZLD | 100 | 136.1 | 6 | 1500 | 2500*780*1600 | 1200 | 3500*1280*2000 | 2460 | 75-80 |
| 100GF | R6105AZLD | 110 | 149.7 | 6 | 1500 | 2500*780*1600 | 1200 | 3500*1280*2000 | 2460 | 75-80 |
| 130GF | R6105IZLD | 132 | 179.6 | 6 | 1500 | 2500*780*1600 | 1250 | 3500*1280*2000 | 2770 | 75-80 |
| 150GF | R6113ZLD | 155 | 210.9 | 6 | 1500 | 2700*780*1600 | 1700 | 3900*1400*2100 | 3100 | 75-80 |
| 200GF | R6126ZLD | 230 | 312.9 | 6 | 1500 | 3000*980*1700 | 1700 | 4200*1400*2100 | 3100 | 75-80 |
| 300GF | HT618D | 330 | 449 | 6 | 1500 | 3000*980*1700 | 3100 | 4200*1400*2100 | 3100 | 75-80 |
| 320GF | WD145TAD35 | 353 | 480 | 6 | 1500 | 3200*1240*1750 | 3100 | 5000*1700*2100 | 5500 | 75-80 |
| 350GR | WD269TAD38 | 382 | 520 | 6 | 1500 | 3200*1240*1750 | 3100 | 5000*1700*2100 | 5500 | 75-80 |
| 400GF | WD269TAD43 | 432 | 588 | 6 | 1500 | 3200*1240*1750 | 3100 | 5000*1700*2100 | 5500 | 75-80 |
| 500GF | WD287TAD58 | 588 | 800 | 6 | 1500 | 3200*1240*1750 | 3100 | 5000*1700*2100 | 5500 | 75-80 |
