25KVA Generator Set With Brushless Alternator CE Certificate

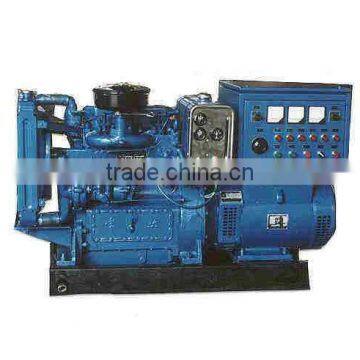

25KVA Generator Set With Brushless Alternator CE Certificate photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HT
Model Number:
20GF
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name HT
Model Number 20GF
Output Type AC Three Phase
Speed 1500/1800rpm
Frequency 50/60hz
Rated Power 20KW
Rated Voltage 400/230V
Rated Current 36A





20kw Water Cooled  Generator  Specification,



GENSET MODEL

20GF

PRIME

STANDBY

GENSET OUTPUT

20KW

22kw

GENSET OUTPUT

25KVA

27.5KVA

SHORT CIRCUIT PROTECTION

MCCB

VOLTAGE/FREQUENCY/POWER FACTOR

400V,50Hz,0.8lag, 3 Phase and 4 Wires

RELATIVE VOLTAGE ADJUST RANGE

0~5%

MOMENT VOLTAGE ADJUST RATIO

-15%~+20%

STEADY FREQUENCY ADJUST RATIO

0~5%

MOMENT FREQUENCY ADJUST RATIO

3%

TIME OF STEADY VOLTAGE

≤ 4s

TIME OF STEADY FREQUENCY

≤ 3s

WINDAGE OF STEADY VOLTAGE

≤ ±1%

FREQUENCY FLUCTUATION RATIO

0.5%

DIESEL ENGINE MODEL

495D

ENGINE OUTPUT (KW)

24kw

ENGINE CONFIGURATION

In-Line,Water Cooling,Four -Stroke

ASPIRATION

Naturally Aspirated

DISPLACEMENT(L)

3.12

SPEEDING (R/MIN)

1500

Bore and Stroke(MM)

105*120

SPEED GOVERNOR

Mechanical

FUEL CONSUMPTION G/KW.H)

224

ALTERNATOR

STAMFORD

ALTERNATOR MODEL

PI144E

TYPE

3 PHASE AND 4 WIRES,BRUSHLESS EXCITATION,SELF-RADIATOR,SELF REGULATING VOLTAGE

INSULATION CLASS

H

APPRXOMATE DIMENSION(MM)

1630*600*1400

Net Weight(KG)

650

25KVA Generator Set with Brushless Alternator CE Certificate



Control Panel



 25KVA Generator Set with Brushless Alternator CE Certificate

OUR ADVANTAGE

1. Professional diesel engine manufacturer, not simply assembler or trader

2. Decades’ years of manufacturing and exporting experience

3. Adopt International quality standards, to meet high quality requirement

4. Good reputation for Reliable quality & Reasonable price

5. Strong technical support

6. Advanced production line with skilled workers



Warehouse



 Factory





Company  Brief and Certification



Weifang Huatian diesel engine can be widely used as the main power for generator set, fixed power, engineering machinery, agricultural machines and water pump set. All series engines are developed on the basis of original model by optimizing its fuel system, air intake and exhaust system, cooling system and transmitting system, to achieve high performance reliability and economical efficiency. The engines mainly have following features: lower oil consumption, higher reliability, bigger torque, easy starting & maintenance, and better adaptability.

25KVA Generator Set with Brushless Alternator CE Certificate25KVA Generator Set with Brushless Alternator CE Certificate

25KVA Generator Set with Brushless Alternator CE Certificate
