Vertical sump pump with suction agitator
Vertical sump pump with suction agitator features
BP(R) pump is centrifugal vertical sump pump, work under fluid. It widely used for delivery abrasive, high density slurry with large particle in the metallurgy, mine, power plant, chemical, and other industry
Detailed specification
1.Cantilevered shaft design
2.Double suction semi-open impeller
3.Agitator option keeps solids in suspension
4.models feature full rubber covering for corrosion resistance
5.Recessed impeller option passes oversized material
6.Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
7.No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
Vertical sump pump with suction agitator parameter
Type | Outlet Diameter mm | Speed n r/min | Water performance | motor Power kw | Impeller Diameter mm | ||
Capacity Q (m3/h) | Head H (m) | Efficiency (%) | |||||
40PV- BP(R) | 40 | 1000-2000 | 17-43.2 | 4-28.5 | 40 | 15 | 188 |
65QV- BP(R) | 65 | 700-1500 | 18-114 | 5-31.5 | 60 | 30 | 280 |
100RQV- BP(R) | 100 | 500-1200 | 54-289 | 5-36 | 62 | 75 | 370 |
150SV- BP(R) | 150 | 500-1000 | 108-479 | 8.5-40 | 52 | 110 | 450 |
200SV- BP(R) | 200 | 400-850 | 189-891 | 6.5-37 | 64 | 110 | 520 |
250TV- BP(R) | 250 | 400-750 | 261-1089 | 7-33.5 | 60 | 200 | 575 |
300TV- BP(R) | 300 | 350-700 | 288-1267 | 6-33 | 50 | 200 | 610 |
Vertical sump pump with suction agitator curve

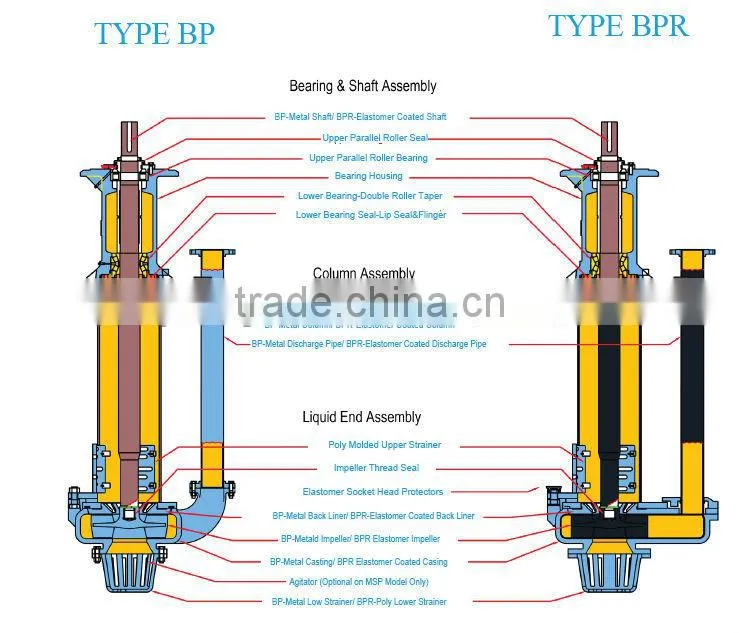

Vertical sump pump with suction agitator structure
Vertical sump pump with suction agitator pictures
Vertical sump pump with suction agitator application
Slurry Pump On-site Application
The vertical slurry pump is widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.
Typical application:
Mine: black, colored slurry feed pump and delivery for kinds of concentrates and tailings;
Metallurgy: transport of various kinds of aluminum and steel mill slurry;
Coal: delivery for coal mining, washing, all kinds of coarse and fine coal slurry;
Electricity: transport for power plant ash, ash washing, various ash slurry, or mortar;
Building Materials: delivery for all kinds of including sediment slurry (such as cement plant slurry);
Chemical: delivery of phosphate fertilizer, potash fertilizer plant all kinds of abrasive slurry;
Water Works: lake, river dredging, sediment, gravel, clay high plastic suction and discharge.
Vertical sump pump with suction agitator packing and shipping
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
Our Services
1. Offer Large capacity sea water pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Learn more , please contact us directly.
