Agitator vertical sump pump
Agitator vertical sump pump specification
1) Cantilevered shaft design.
2) Double suction semi-open impeller.
3) Agitator option keeps solids in suspension.
4) LBP models feature full rubber covering for corrosion resistance.
5) Recessed impeller option passes over sized material.
6) Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
Agitator vertical sump pump parameter
Pump Model | Max Allowable Partical Size (mm) | Max Available Matching Power | Material | Performance under clear water | Impeller | ||||||
(kw) | Liner | Impeller | Flow capacity | Head(m) | RotationalSpeed | Max efficiency | No. | BladeExter nal Dia. | |||
(Q) | (r/min) | (%) | (mm) | ||||||||
M3/H | L/S | ||||||||||
40PV-BPL | 12 | 15 | M | M | 3.6~46.8 | 1~16 | 4~29 | 1000~2200 | 39 | 5 | 195 |
12 | 15 | R | R | 3.6~46.8 | 1~13 | 3~29 | 1000~2200 | 41 | 5 | 195 | |
65QV-BPL | 15 | 30 | M | M | 14.4~115.2 | 4~32 | 4~32 | 700~1500 | 52 | 5 | 290 |
15 | 30 | R | R | 10.8~126 | 3~35 | 5~33 | 700~1500 | 52 | 5 | 290 | |
100RV-BPL | 32 | 75 | M | M | 14.4~288 | 4~80 | 4~37 | 500~1200 | 57 | 5 | 390 |
40 | 70 | R | R | 18~288 | 5~80 | 6~39 | 600~1200 | 62 | 5 | 390 | |
150SV-BPL | 45 | 110 | M | M | 72~612 | 20~170 | 6~38 | 500~1000 | 56 | 5 | 480 |
45 | 110 | R | R | 72~576 | 20~160 | 6~37 | 500~1000 | 57 | 5 | 480 | |
200SV-BPL | 65 | 110 | M | M | 144~864 | 40~240 | 6~41 | 400~850 | 65 | 5 | 550 |
250TV-BPL | 65 | 200 | M | M | 180~1296 | 50~360 | 7~36 | 400~750 | 60 | 5 | 605 |
300TV-BPL | 65 | 200 | M | M | 108~1620 | 30~450 | 5~30 | 350~700 | 62.1 | 5 | 610 |

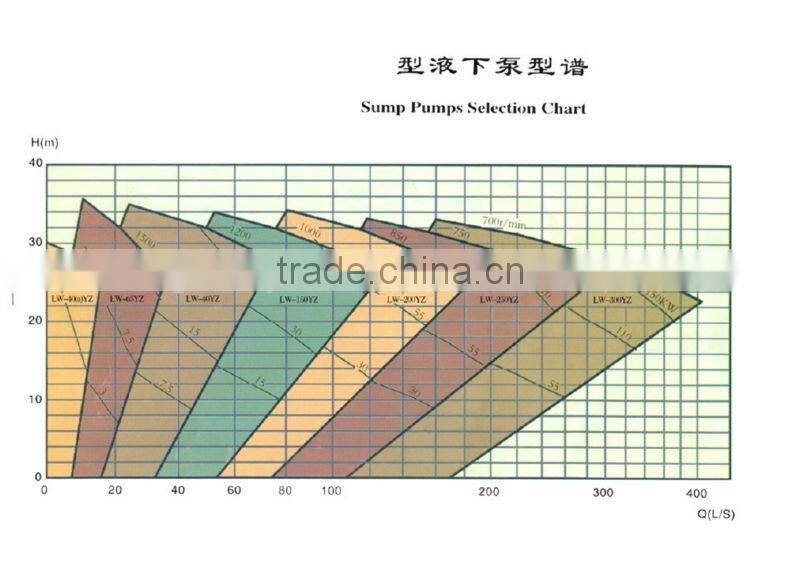

Agitator vertical sump pump curve
Agitator vertical sump pump curve

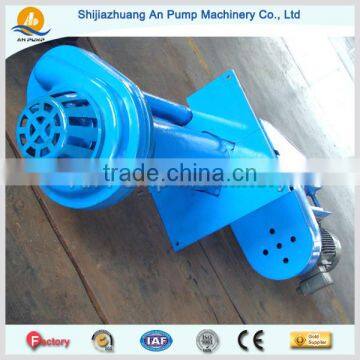

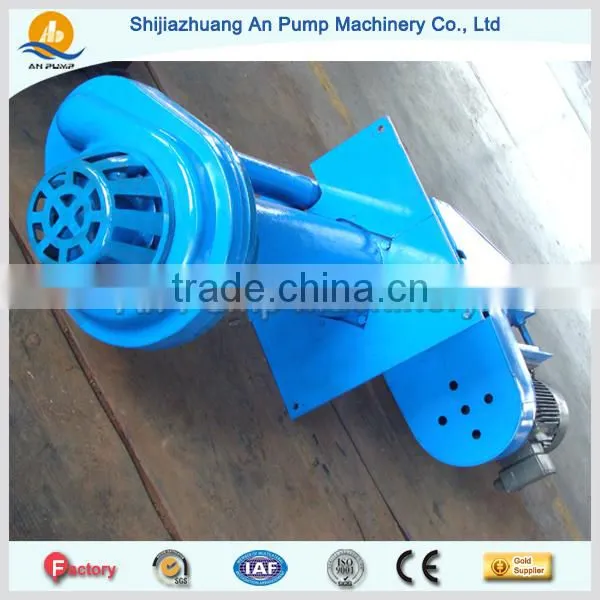

Agitator vertical sump pump picture
Agitator vertical sump pump packing
The vertical slurry pump is widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.
Typical application:
Mine: black, colored slurry feed pump and delivery for kinds of concentrates and tailings;
Metallurgy: transport of various kinds of aluminum and steel mill slurry;
Coal: delivery for coal mining, washing, all kinds of coarse and fine coal slurry;
Electricity: transport for power plant ash, ash washing, various ash slurry, or mortar;
Building Materials: delivery for all kinds of including sediment slurry (such as cement plant slurry);
Chemical: delivery of phosphate fertilizer, potash fertilizer plant all kinds of abrasive slurry;
Water Works: lake, river dredging, sediment, gravel, clay high plastic suction and discharge.
In the mine site pump station
Drainage slurry working condition
1. Q: Are you a trading company or manufacture?
A: An Pump Machinery Co., Ltd is a real large professional manufacturer more than 32 years, in China,
produce with our own factory.
2. Q: what's your factory workshops ?
A: My factoryproduce include casting, mechanical process, lathe process, heat treatment, assembly, and test etc.
Warmly welcome to visit & test my factory any time.
3. Q: How about your pump price?
A: We are sure our price is factory price, and insist high quality for our long term cooperation.
4. Q: What is your pump material ?
A: We produce high Cr Mo Ni alloy, rubber liner, cast iron, stainless steel, etc.
Produce as your requirements is ok.
5. Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Our factory has 15~30 QC.
6. Q: Is it easy for customers to change the parts by myself ?
A: yes, the structure is simple,customers can change it very easily. We will also supply you maintenance tools for free.
7. Q: How to do if the pump or parts have operation problem within your warranty?
A: Tell me details timely, and show me pictures, we will send you solution at once without any hesistation.
8. Q: Can you install the motor or diesel engine with the pump for us ?
A: yes, we can, it's no problem, we are experienced in this .
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
Our Services
1. Offer Large capacity sea water pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Learn more , please contact us directly.
Web:
Email:coco(@)
Tel:86-311-89940549 Fax:86-311-86271170
WhatsApp:0086-137-3107-1183
Skype:mandy.anpump
