Centrifugal vertical slurry pump for sand dredging
Centrifugal vertical slurry pump for sand dredging application
The vertical slurry pump is widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.
Typical application:
Mine: black, colored slurry feed pump and delivery for kinds of concentrates and tailings;
Metallurgy: transport of various kinds of aluminum and steel mill slurry;
Coal: delivery for coal mining, washing, all kinds of coarse and fine coal slurry;
Electricity: transport for power plant ash, ash washing, various ash slurry, or mortar;
Building Materials: delivery for all kinds of including sediment slurry (such as cement plant slurry);
Chemical: delivery of phosphate fertilizer, potash fertilizer plant all kinds of abrasive slurry;
Water Works: lake, river dredging, sediment, gravel, clay high plastic suction and discharge.
In the mine site pump station
Drainage slurry working condition
Centrifugal vertical slurry pump for sand dredging specification
1. BP(R) type submerged pumps are vertical centrifugal slurry pump, generally into the pool or pit to work, used to transport abrasive, coarse particle, high concentration slurry.
2. Don't need any shaft seal and shaft seal water, in the inhaled volume insufficient conditions they can also work normally.
3. BP(R) type submerged pumps' pump body is made of wear-resisting metal. Impeller is made of wear-resistant metal or rubber, polyurethane SP (R) type submerged pumps parts into the liquid with rubber lining,they are all applicable to transport corrosive slurry
1) Cantilevered shaft design.
2) Double suction semi-open impeller.
3) Agitator option keeps solids in suspension.
4) LBP models feature full rubber covering for corrosion resistance.
5) Recessed impeller option passes over sized material.
6) Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
Centrifugal vertical slurry pump for sand dredging parameter
Type | Material | Flow | Head | Max Power (kw) | Speed (rpm) |
40C-BP/R | Metal/Rubber | 7.2-39.6 | 3.9-27.4 | 15 | 1000-2200 |
65D-BP/R | Metal/Rubber | 19.08-102.6 | 5-31.1 | 30 | 700-1500 |
100E-BP/R | Metal/Rubber | 41.5-259.2 | 5.1-37.2 | 70 | 500-1200 |
150F-BP/R | Metal/Rubber | 115.2-576 | 6.7-35.7 | 110 | 500-1000 |
200F-BP/R | Metal/Rubber | 180-734.4 | 7.1-28.2 | 110 | 400-850 |
250S-BP/R | Metal/Rubber | 363-1188 | 7-36 | 200 | 400-750 |
300S-BP/R | Metal/Rubber | 385-1492 | 7.8-55 | 250 | 400-700 |
Centrifugal vertical slurry pump for sand dredging curve
Centrifugal vertical slurry pump for sand dredging structure

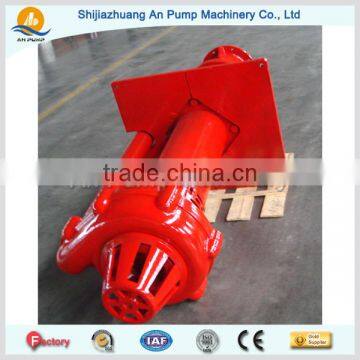

Centrifugal vertical slurry pump for sand dredging picture
Centrifugal vertical slurry pump for sand dredging packing and shipping
Our Services
1. Offer Large capacity sea water pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
