Vertical submerged sump pump for Mud

Vertical submerged sump pump for Mud application

The vertical slurry pump is widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.

Typical application:
Mine: black, colored slurry feed pump and delivery for kinds of concentrates and tailings;
Metallurgy: transport of various kinds of aluminum and steel mill slurry;
Coal: delivery for coal mining, washing, all kinds of coarse and fine coal slurry;
Electricity: transport for power plant ash, ash washing, various ash slurry, or mortar;
Building Materials: delivery for all kinds of including sediment slurry (such as cement plant slurry);
Chemical: delivery of phosphate fertilizer, potash fertilizer plant all kinds of abrasive slurry;
Water Works: lake, river dredging, sediment, gravel, clay high plastic suction and discharge.

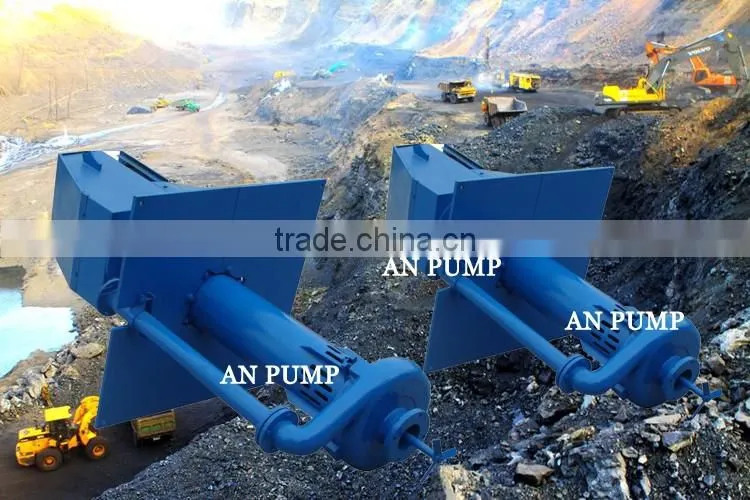

                                                                       In the mine site pump station

                                                                    Drainage slurry working condition

Vertical submerged sump pump for mud specification

The BP series sump pump is single stage, vertical cantilever, single and double suction pump. Liquid ends construction is the same white iron as in the other models. Bearing are grease lucricated.corrosion resistance Sump pump
The BPR is constructed similar to BP, except all the parts in contact with the pumpage are rubber coated, The rubber coating is used for corrosive applications.

Size: 40 - 300 mm
Flow: 7.56 - 1490 m3/hr
Head: 4 - 55 m
Speed: 300 - 2200 rpm

Vertical submerged sump pump for mud feature

1) Cantilevered shaft design.
2) Double suction semi-open impeller.
3) Agitator option keeps solids in suspension.
4) LBP models feature full rubber covering for corrosion resistance.
5) Recessed impeller option passes over sized material.
6) Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.

Vertical submerged sump pump for mud parameter

Vertical submerged sump pump for mud curve

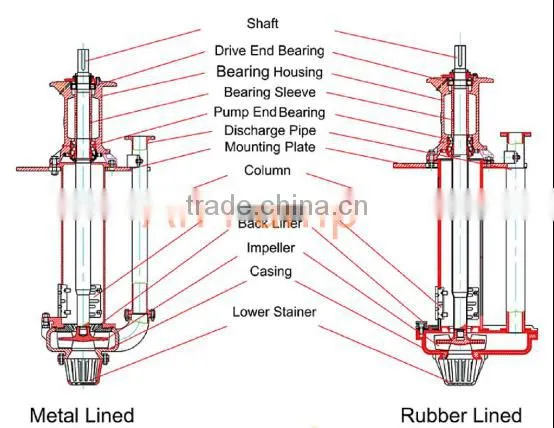

Vertical submerged sump pump for mud structure

1. Material construction optional
BP: abrasion resisting metal construction
BPR: anti-corrosive rubber construction
2. Do not need any shaft seal or sealing water
Also worked well under insufficient suction duty.
3. The type with “L” is the pump with extension shaft
It suitable to deep condition. It has guid bearing. So it more stable and used more wide. However the flushing water is necessary on the guide bearing part.
4. The agitator is available
We can assembly the agitator as requirements.

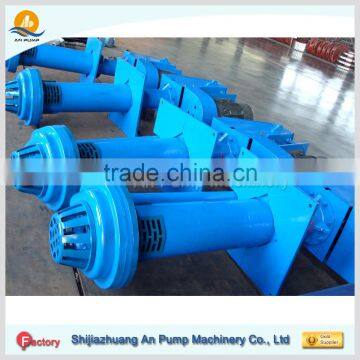

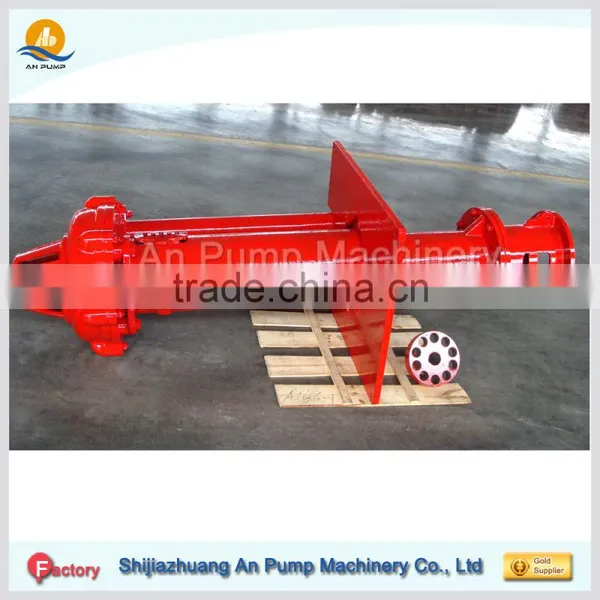

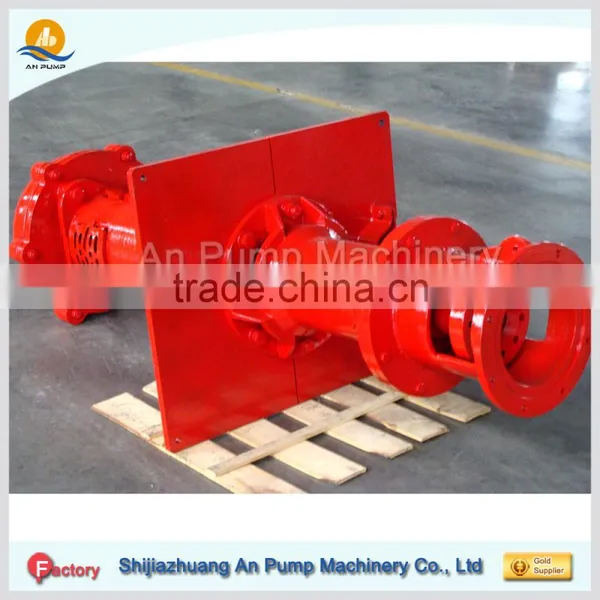

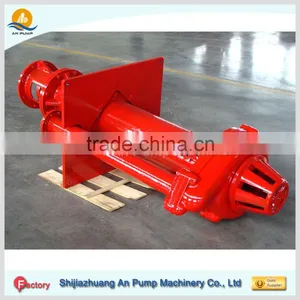

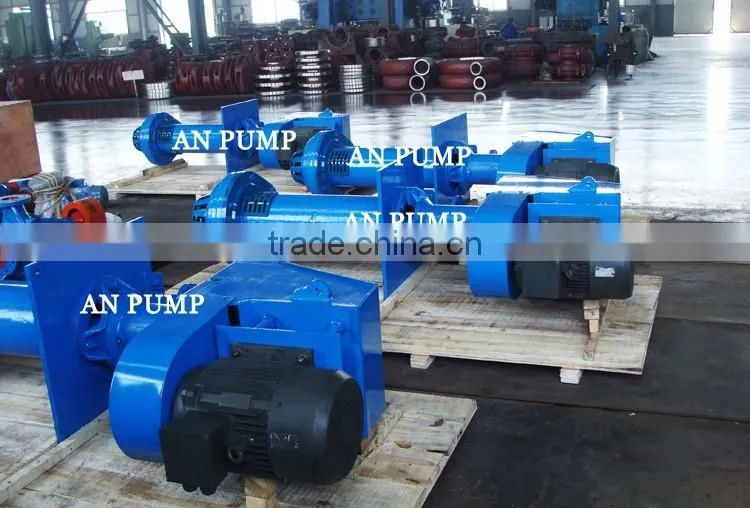

Vertical submerged sump pump for mud picture

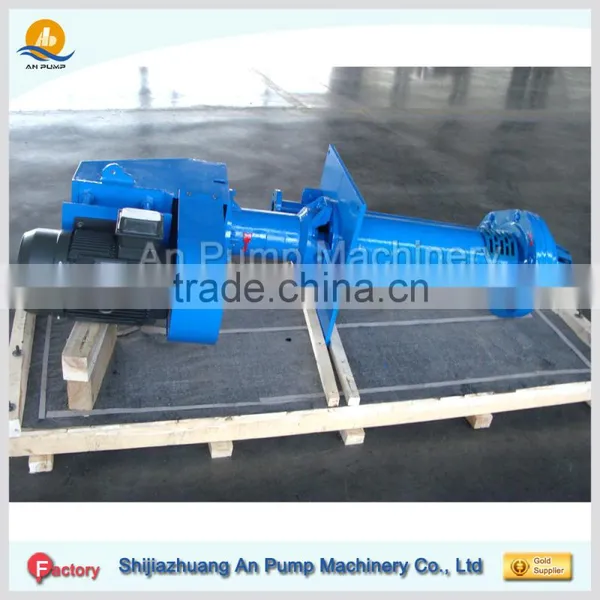

Vertical submerged sump pump for mud packing or shipping
