Heavy Duty Vertical Sump Submersible Slurry Pump, Submersible Sand Pump
*-*-*-*-* OVERVIEW *-*-*-*-*
Overview of Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump

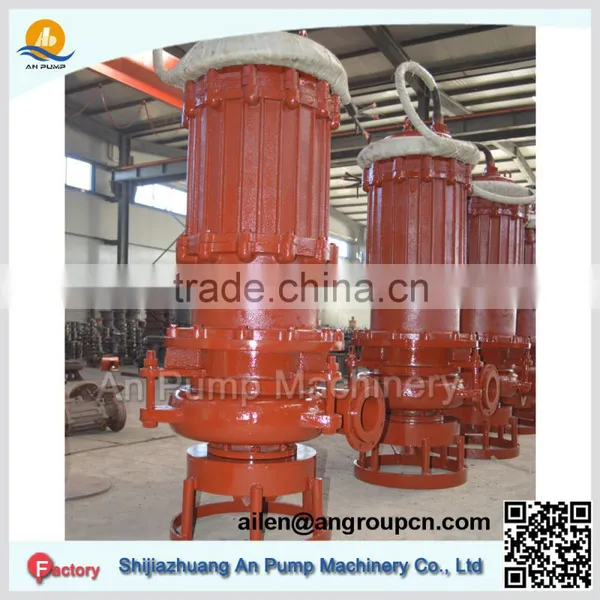

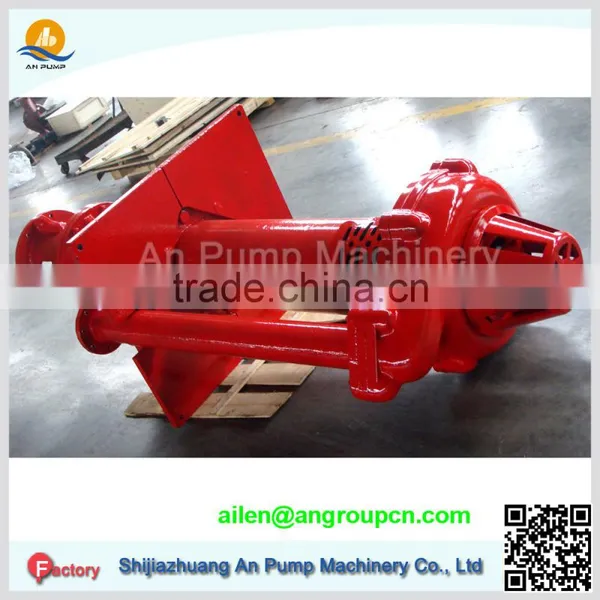

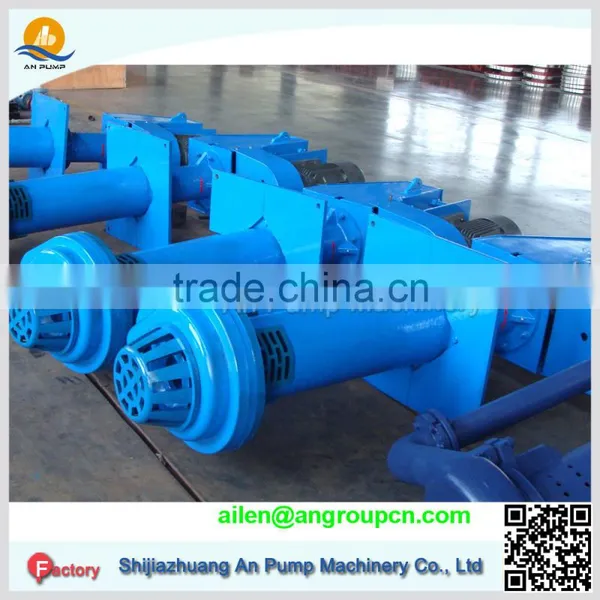

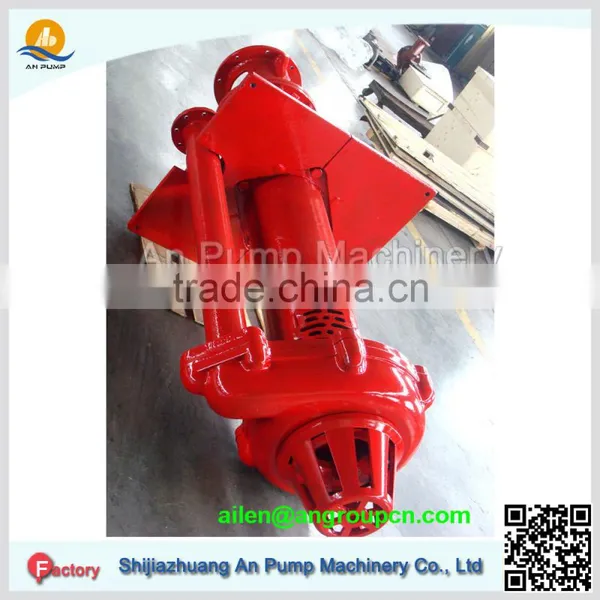

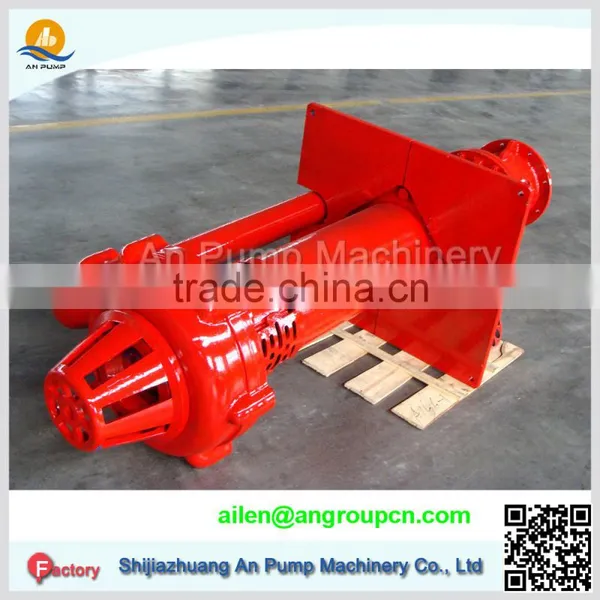

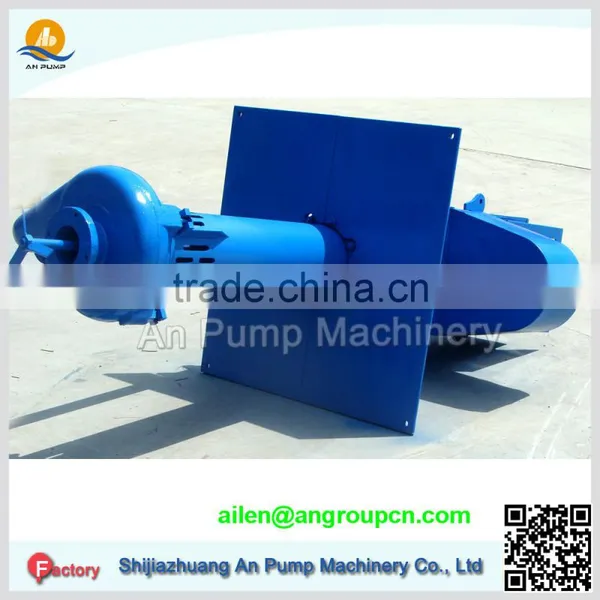

This kind of heavy duty vertical submersible sand pumps are cantilevered vertical slurry pump with rubber liners, impeller and other wet end parts.
An pump machine centrifugal sand pump manufacturer
*-*-*-*-* APPLICATION *-*-*-*-*
Application for Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
Heavy duty submersible sand pump mainly used for delivery the slurry which is strong corrosive with fine particles. Vertical slurry pump are widely used to transport slurry with strong corrosion and high concentration for many industries, such as metallurgy, mine, coal, electric power and so on, for example the cracking operations.
*-*-*-*-* FUNCTION *-*-*-*-*
Function of the agitator for Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
The agitator of heavy duty vertical submersible sand pump help to stir the slurry to aviod the solid will be prcipitated and help the pump suck slurry smoothly.
*-*-*-*-* PERFORMANCE DATA *-*-*-*-*
Perfomance data of Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
| Item | Data |
| Capacity(Flow rate) (Q) | 17~1267m3/h 4.7~352L/S |
| Total dynamic Head (H) | 4~40m |
| Speed | 350~2200rpm |
| Max Passed Particle Size | 65mm |
| Slurry Density | 60% |
| Slurry PH Rate: | 2~11 |
*-*-*-*-* CURVE CHART *-*-*-*-*
Performance curve for Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
*-*-*-*-* MATERIAL LIST *-*-*-*-*
Material of Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
Metal material:
| Item | Code |
| Chrome alloy | Cr |
| Cast iron | - |
| Grey iron | HT |
| Ductile cast iron | QT |
| Staniless Steel | SS304, SS306, SS316L |
| Duplex stainless steel | CD-4MCu |
| Bronze | - |
Rubber material:
Category | Specification |
Natural rubber | Ru |
Synthetic rubber | Ternary ethylene, Nitrile rubber, Neoprene rubber, Butyl rubber |
*-*-*-*-* KEY POINTS *-*-*-*-*
Key points for Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
Submersible sand Pump do not need any shaft seals or seal water, it is still workable if without enough water.
*-*-*-*-* CONSTRUCTION *-*-*-*-*
Construction for Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump

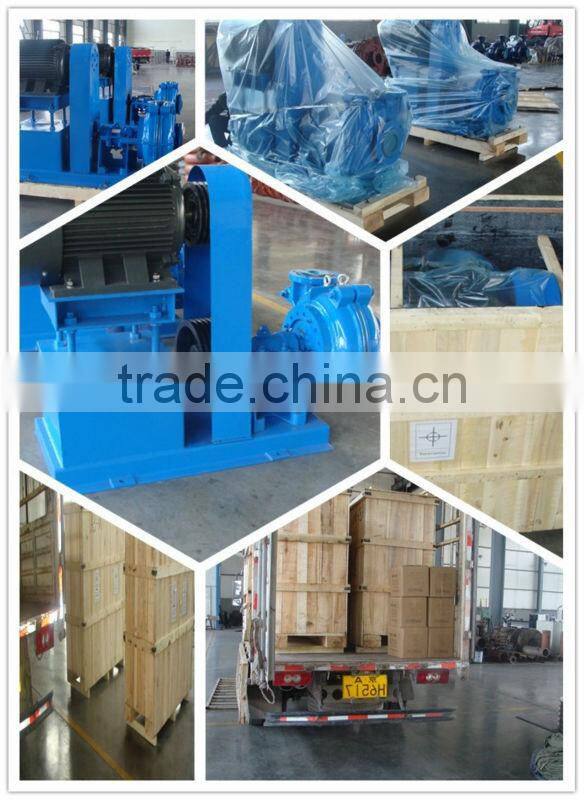

*-*-*-*-* PACKAGING&SHIPPING *-*-*-*-*
Packaging and shipping for Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
*-*-*-*-* FAQ *-*-*-*-*
Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump basic parameter
The basic parameters of pump main performance are as follows:
1. Flow rate (Q):
Flow rate is meaning the liquid amount (volume or weight) delivered in unit time(volume or weight);
2. Head (H):
Head is the increased energy from the pump inlet to the pump outlet when pumping one unit liquid.
That is to say one Newtonian liquid get the effective energy through the pump.
The unit is n. m/N = m, mamely pumping water column height, in short of meter.
3.speed (n): Speed is numbers of revolutions of the pump shaft in unit time, Code is n, unit is r/min;
*-*-*-*-* OUR HISTORY *-*-*-*-*

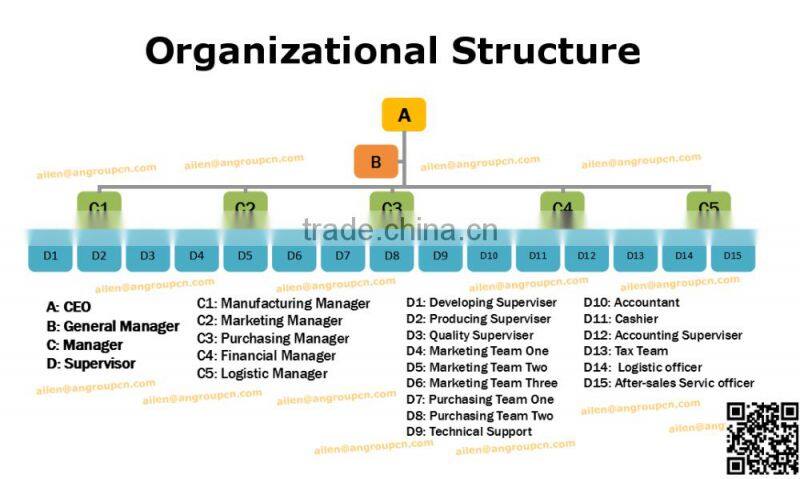

*-*-*-*-* ORGANIZATIONAL STRUCTURE *-*-*-*-*
